Chapter 6 Optional Accessories | VFD-ED
6-21

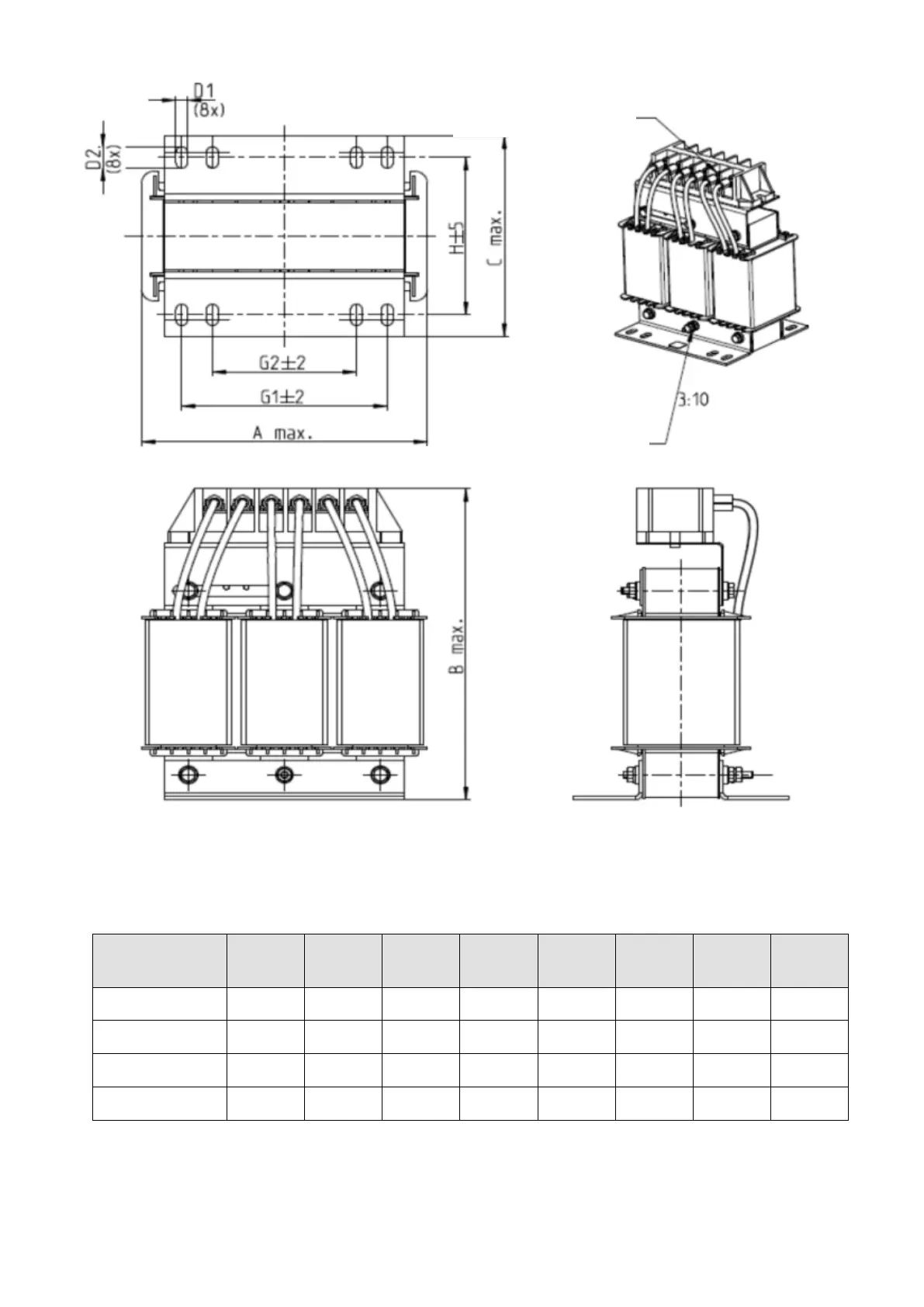

Figure 6-16
Unit: mm
Input Reactors
Delta Part #
A B C D1*D2 H G1 G2 PE D
DR024AP881 160 175 115 6*12 90 107 75 M4
DR032AP660 195 200 145 6*12 115 122 85 M6
DR038AP639 190 200 145 6*12 115 122 85 M6
DR045AP541 190 200 145 6*12 115 122 85 M6
Table 6-20
Installing screw: M5
PE MD
Tightening torque: F Nm
