Chapter 6 Optional Accessories | VFD-ED
6-24

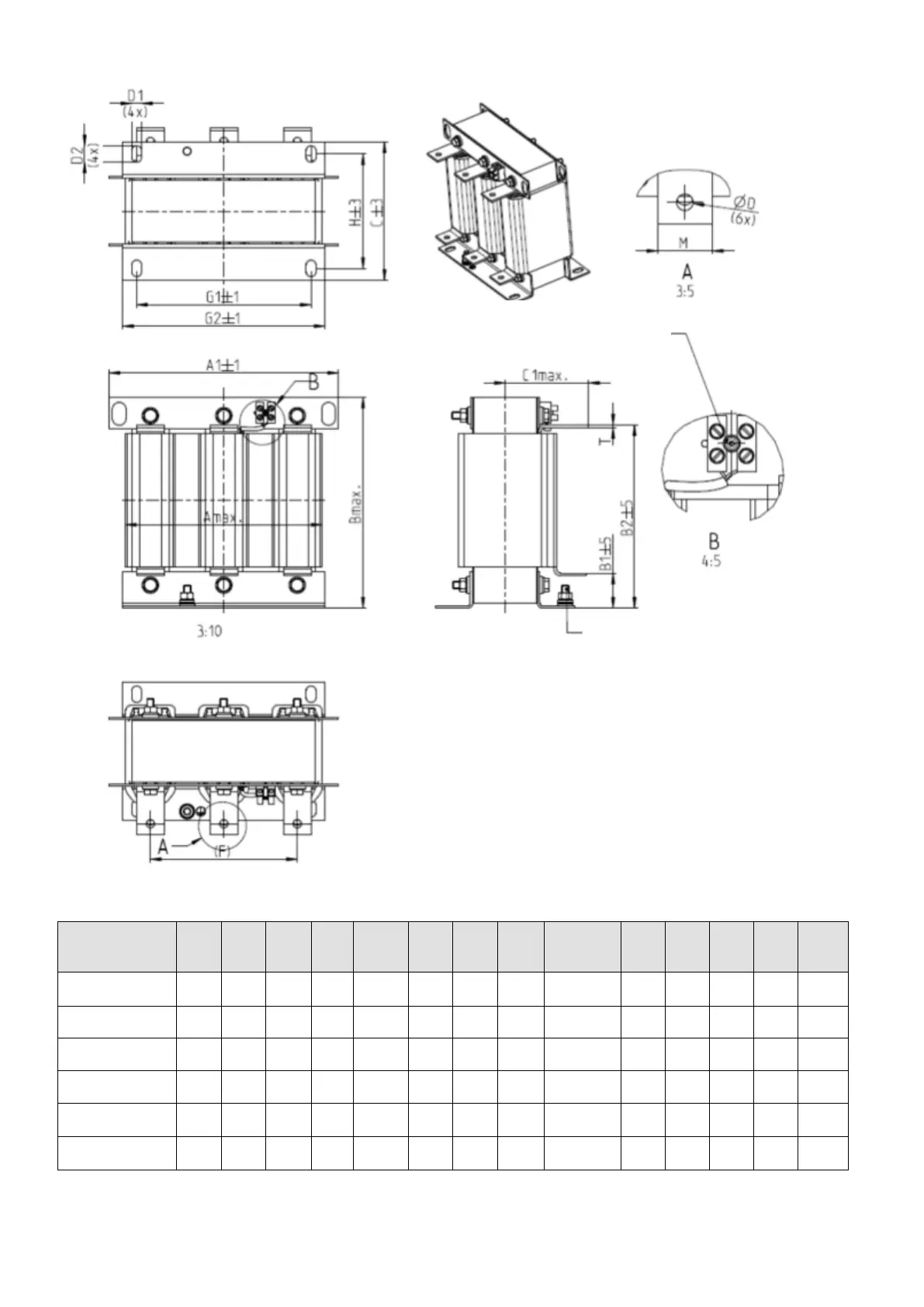

Figure 6-19
Unit: mm
Input Reactors
Delta Part #
A A1 B B1 B2 C C1 D D1*D2 F G1 G2 H M*T
DR150AP162 240 250 245 40 200 151 105 9 11*18 160 190 220 125 20*3
DR180AP135 240 250 245 40 200 151 105 9 11*18 160 190 220 125 20*3
DR220AP110 264 270 275 50 230 151 105 9 10*18 176 200 230 106 30*3
DR260AP098 264 270 285 50 240 151 105 9 10*18 176 200 230 106 30*3
DR310AP078 300 300 345 55 295 153 105 9 10*18 200 224 260 113 30*3
DR370AP066 300 300 345 55 295 158 120 9 10*18 200 224 260 118 50*4
Table 6-23
PE M8 x 23
Tightening torque: 6±0.3 Nm
1:5 Terminal gauge: 4 mm
2
Tightening torque: 0.8–1.0 Nm
