Chapter 6 Optional Accessories | VFD-ED
6-27

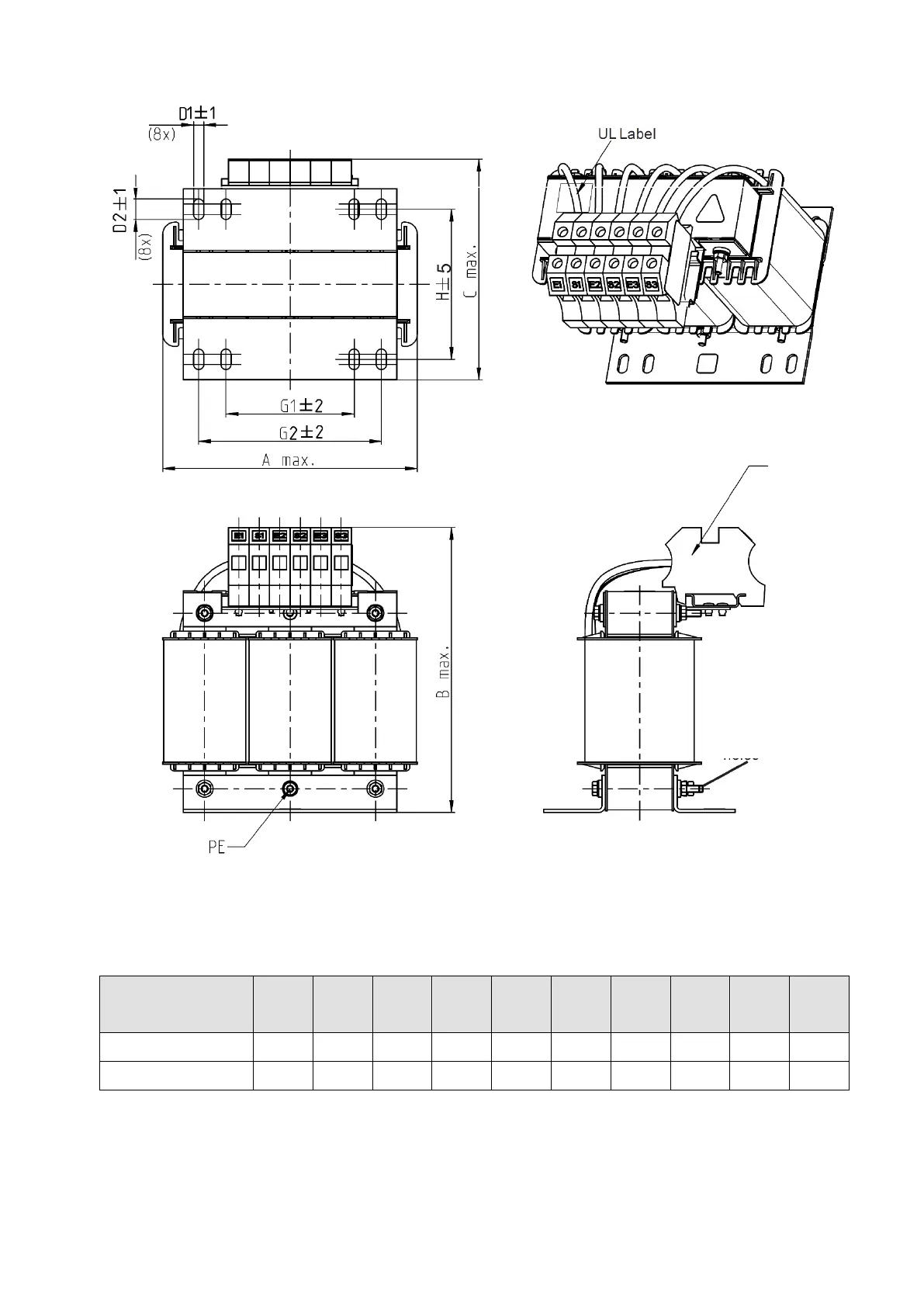

Figure 6-22
Unit: mm
Output Reactors
Delta Part #
A B C D1*D2 H G G1 Q M PE D
DR049LP215 180 205 175 6*12 115 85 122 16 1.2-1.4
M4
DR065LP162 180 215 185 6*12 115 85 122 35 2.5-3.0
M4
Table 6-26
Screw length must
not interfere with the
mounting holes.
Terminal gauge: 16 mm
2
Tightening torque: 1.2–1.4 Nm
