Chapter 6 Optional Accessories | VFD-ED
6-30

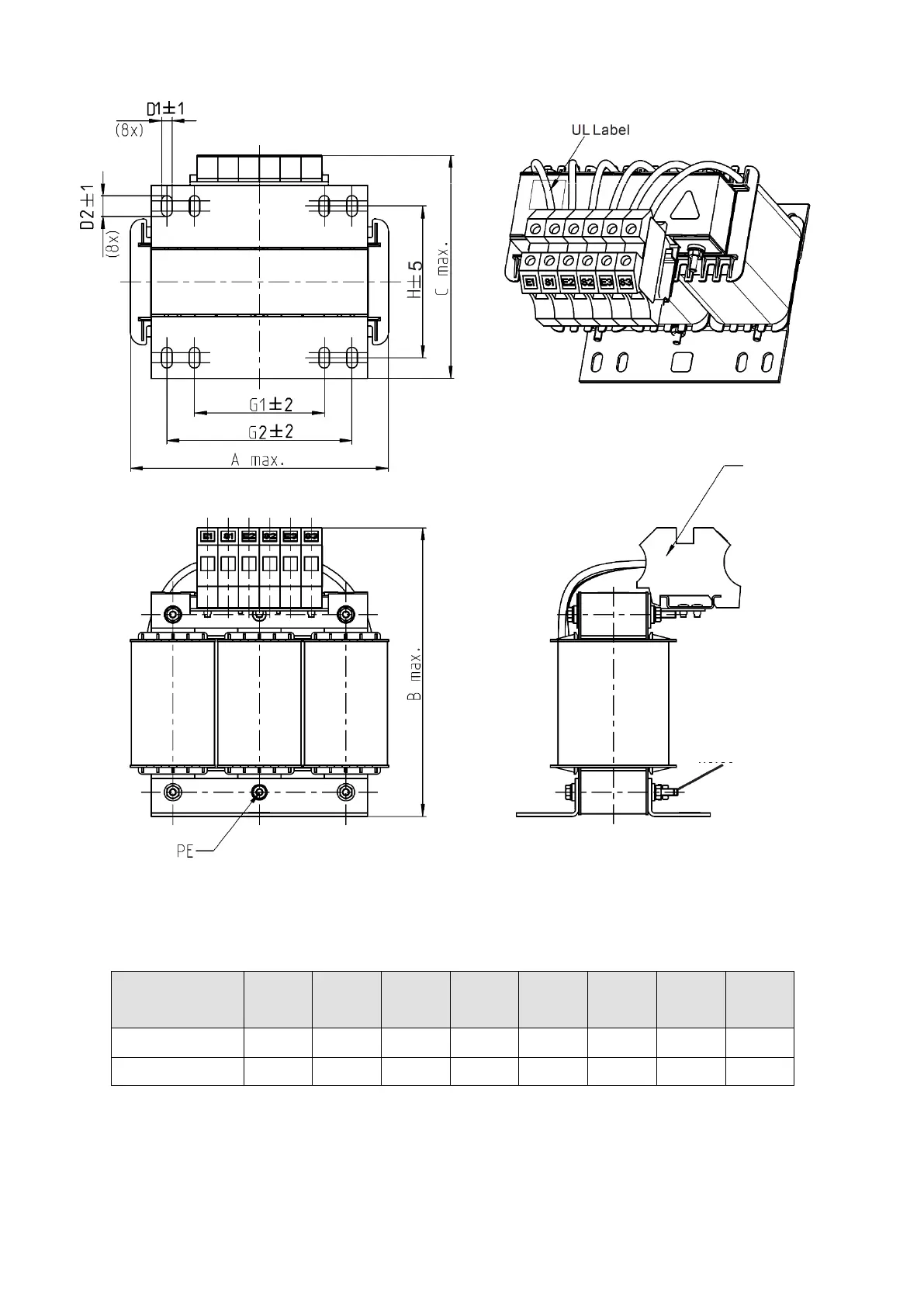

Figure 6-25
Unit: mm
Output Reactors
Delta Part #
A B C D1*D2 H G1 G2 PE D
DR038LP639 180 205 170 6*12 115 85 122 M4
DR045LP541 235 245 155 7*13 85 / 176 M6
Table 6-29
Screw length must
not interfere with the
mounting holes.
Terminal gauge: 16 mm
2
Tightening torque: 1.2–1.4 Nm
