Chapter 12 Description of Parameter SettingsC2000-HS
12.1-00-15
01Cxh: psi
01Dxh: atm
01Exh: L/s
01Fxh: L/m
020xh: L/h
021xh: m3/s
022xh: m3/h
023xh: GPM
024xh: CFM
xxxxh: Hz

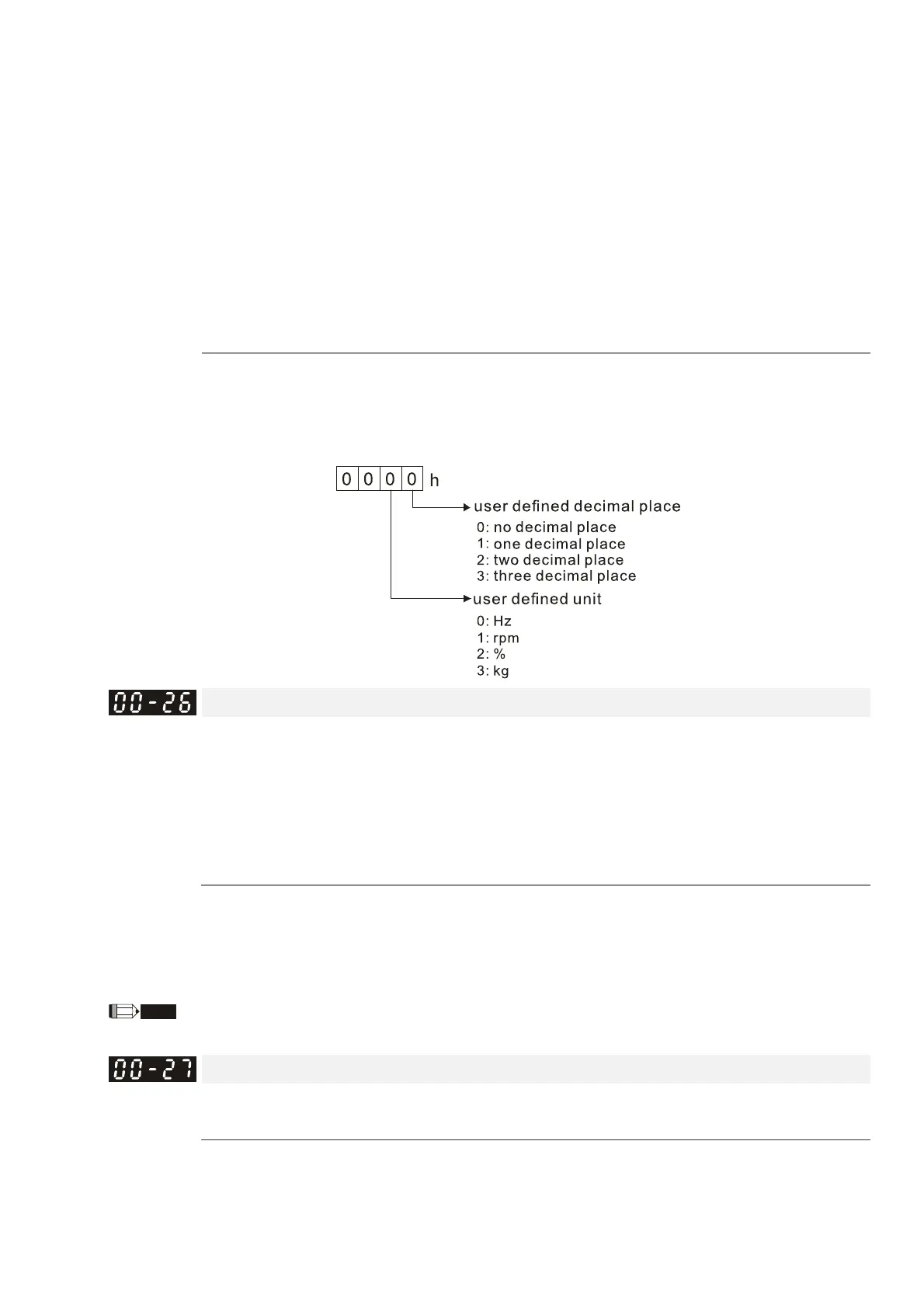

 bit0–3: the control frequency F page, user-defined unit (Pr. 00-04 =d10, PID feedback value)
and the number of decimal places (Pr. 00-26) which supports up to three decimal places.
 bit4–15: the control frequency F page, user-defined unit (Pr. 00-04=d10, PID feedback value)
and the displayed units for Pr. 00-26.
Maximum User-Defined Value
Default: 0
Settings 0: Disable
0–65535 (when Pr. 00-25 set to no decimal place)
0.0–6553.5 (when Pr. 00-25 set to 1 decimal place)
0.00–655.35 (when Pr. 00-25 set to 2 decimal places)
0.000–65.535 (when Pr. 00-25 set to 3 decimal places)
 When Pr. 00-26 is NOT set to 0, the user-defined value is enabled. The setting value of Pr.
00-26 corresponds to Pr. 01-00 (Maximum motor operating frequency)
Example: When the user-defined value is set as 100.0% corresponded to the maximum output
frequency 600.0Hz, Pr.00-25 is set as 0021h, and Pr. 00-26 is set as 100.0%.
NOTE
The drive display is controlled by the Pr. 00-25 setting when Pr. 00-25 is properly set and
Pr. 00-26 is not 0.
User-Defined Value
Default: Read only
Settings Read only
 Pr. 00-27 displays the user-defined value when Pr. 00-26 is not set to 0.
 The user-defined value is valid when Pr. 00-20 (frequency source) is set to the digital keypad or
to RS-485 communication.
