Chapter 12 Description of Parameter SettingsC2000-HS
12.1-02-22

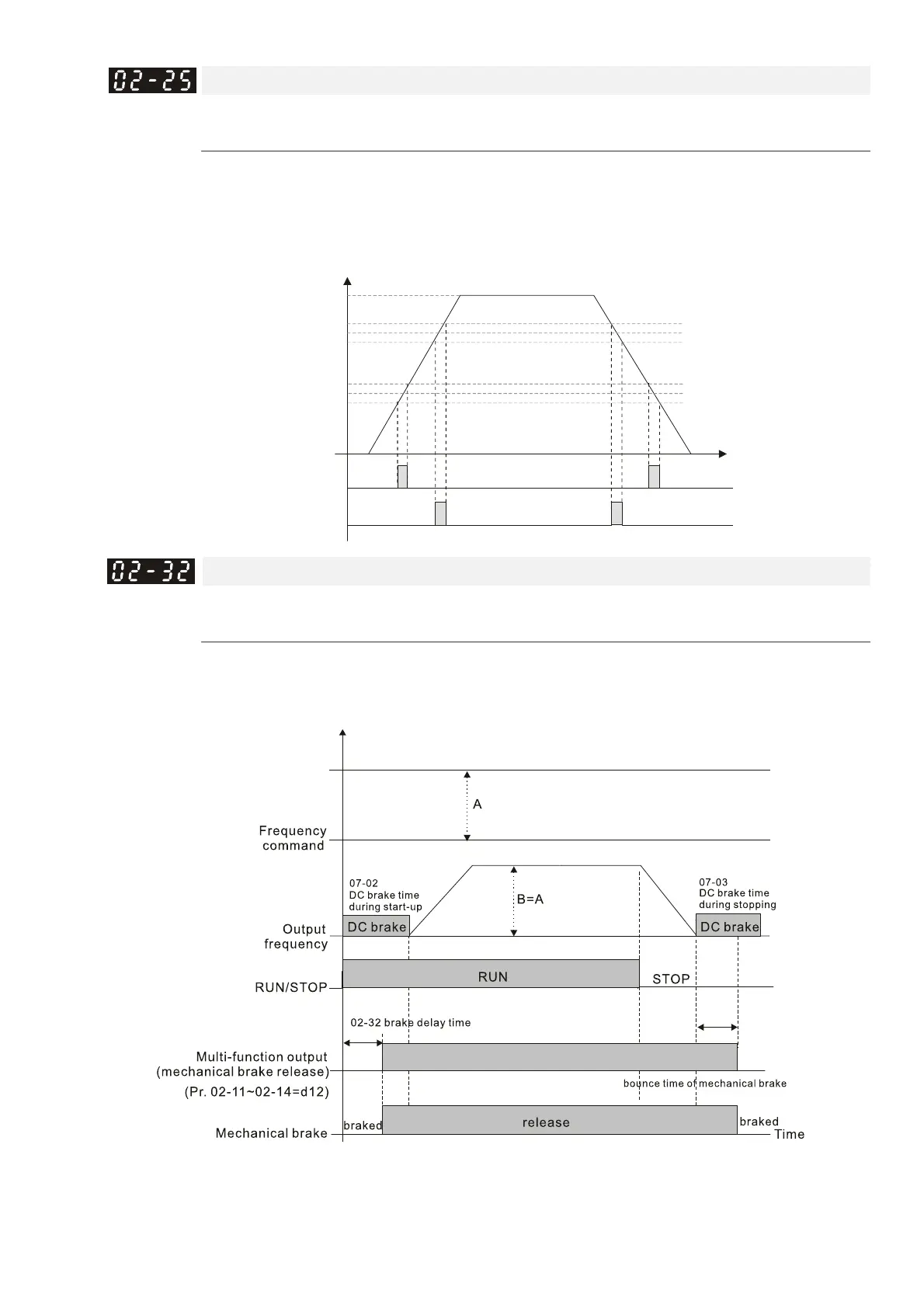

The Width of the Desired Frequency Reached 2
Default: 2.0
Settings 0.0–1500.0 Hz
The upper limit of setting range is the same as the maximum operating frequency for Pr. 01-00.
Once the output speed (frequency) reaches the desired speed (frequency), if the corresponding
multi-function output terminal is set to 3–4 (Pr. 02-13, Pr. 02-14, Pr. 02-36, and Pr. 02-37), this
multi-function output terminal is “closed”.
02-13,02-14,
02-36,02-37,
Fcmd=60Hz
02-22=10Hz
02-23=2Hz
02-24=40Hz
02-25=2Hz
38Hz
40Hz
42Hz
10Hz
12Hz
8Hz
T
=3
02-13,02-14,
02-36,02-37,
=4
Brake Delay Time
Default: 0.000
Settings 0.000–65.000 sec.
When the AC motor drive runs after the setting delay time of Pr. 02-32, the corresponding
multi-function output terminal (12: mechanical brake release) is “closed”. This function must be
used with DC brake.
