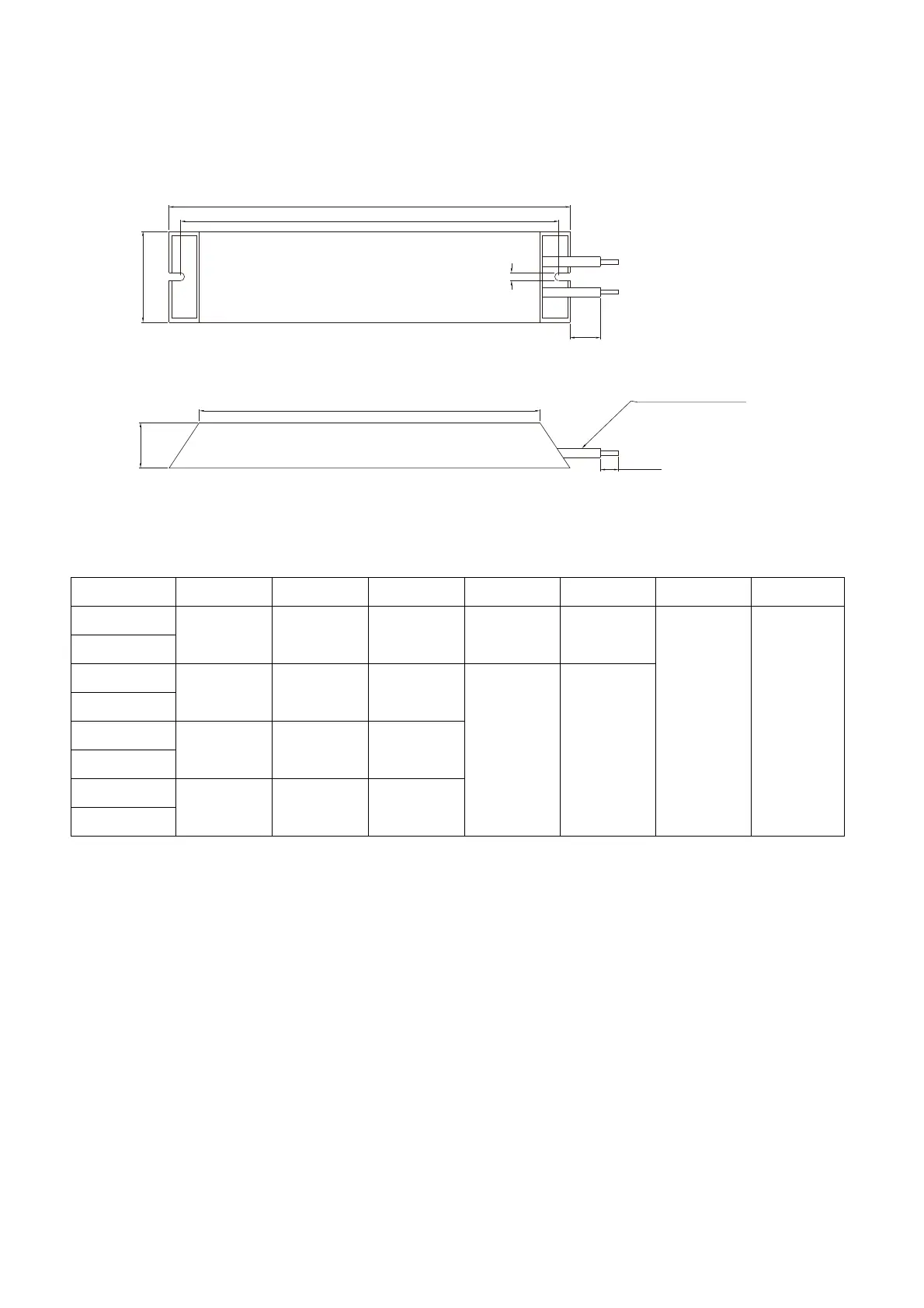

7.3 Aluminum housed resistor: for below 1000W.Refer to the following image for its appearance.
See table below for specification comparison.
A
W
L1
H
L 2
L
L3
12.0
1 6 AWG , 1 . 31 8
mm
2
7.4 Brake Resistors’ model name and comparison
Unit: mm
Model
L1 L2 L3 W H A L
BR080W200
140 ± 2 125 ± 2 100 ± 1 40 ± 0.5 20 ± 0.5
BR080W750
BR200W091
165 ± 2 150 ± 2 125 ± 1
BR200W360 5.3 ± 0,5 200 ± 20
BR300W070
215 ± 2 200 ± 2 175 ± 1 60 ± 0.5 30 ± 0.5
BR300W250
BR400W040
265 ± 2 250 ± 2 225 ± 1
BR400W150
