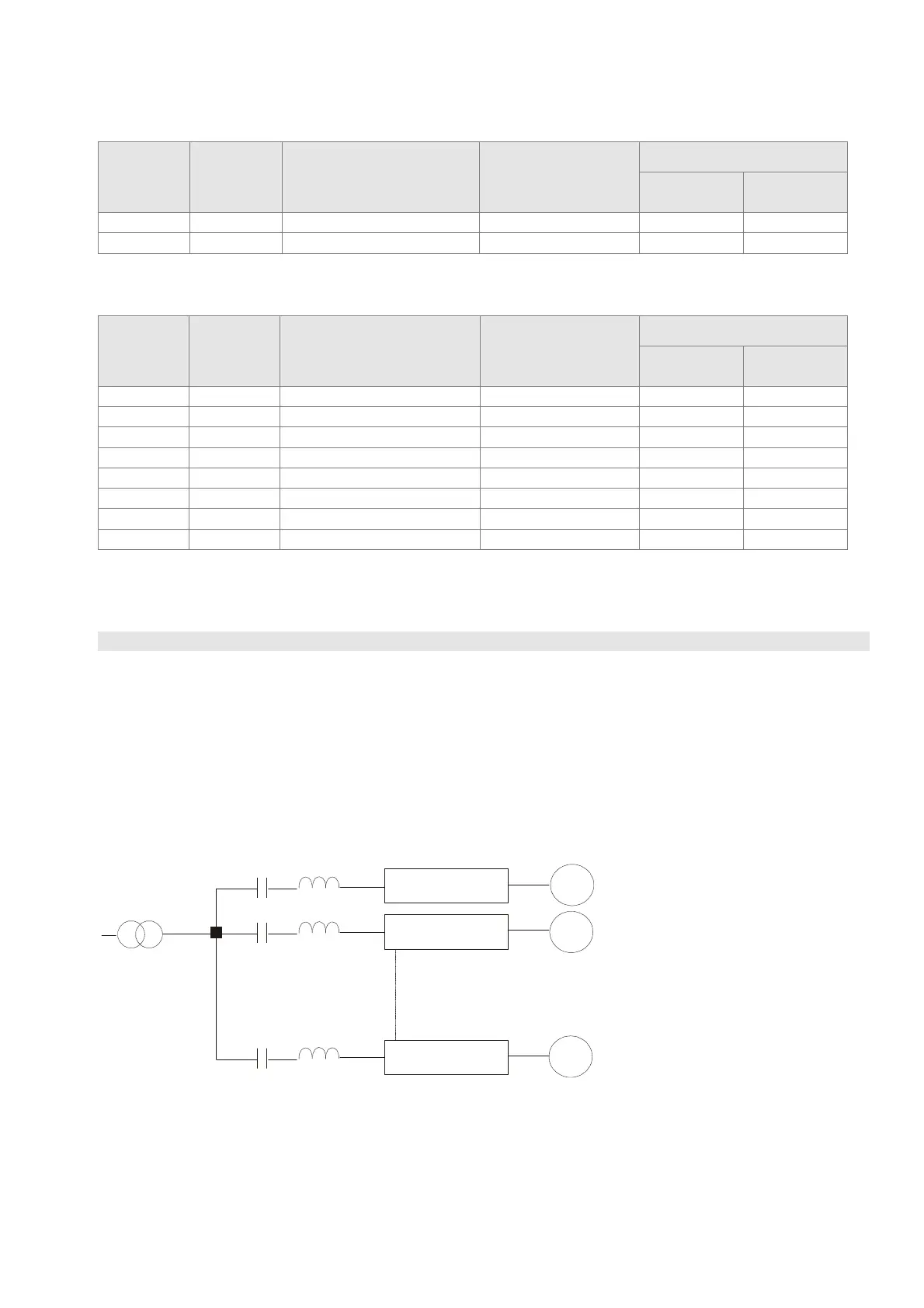

APX A: Optional Accessories | VFD-VJ
Apx A-11
Specifications: AC Output Reactor
230V, 50/60Hz, Three-Phase
kW HP Rated Current of Reactor
Maximum
Continuous Current
Inductance（mH）
3%
Impedance
5%
Impedance
30 40 130 195 0.1 0.2
37 50 160 240 0.075 0.15
460V, 50/60Hz, Three-Phase
kW HP Rated Current of Reactor
Maximum
Continuous Current
Inductance（mH）
3%
Impedance
5%
Impedance
15 20 35 52.5 0.8 1.2
18.5 25 45 67.5 0.7 1.2
22 30 45 67.5 0.7 1.2
30 40 80 120 0.4 0.7
37 50 80 120 0.4 0.7
45 60 100 150 0.3 0.45
55 75 130 195 0.2 0.3
75 100 160 240 0.15 0.23
Application of AC Reactor
Connected in input circuit
Application 1
When more than one hybrid drive is connected to the same mains power and one of them is ON
during operation.
Problem: When applying power to one of the hybrid drive, the charge current of the capacitors may
cause voltage dip. The hybrid drive may be damaged when over current occurs during
operation.
Correct wiring:
M1
M2
Mn
reactor
AC motor drive
AC motor drive
AC motor drive
motor
motor
motor
