APX A: Optional Accessories | VFD-VJ
Apx A-15

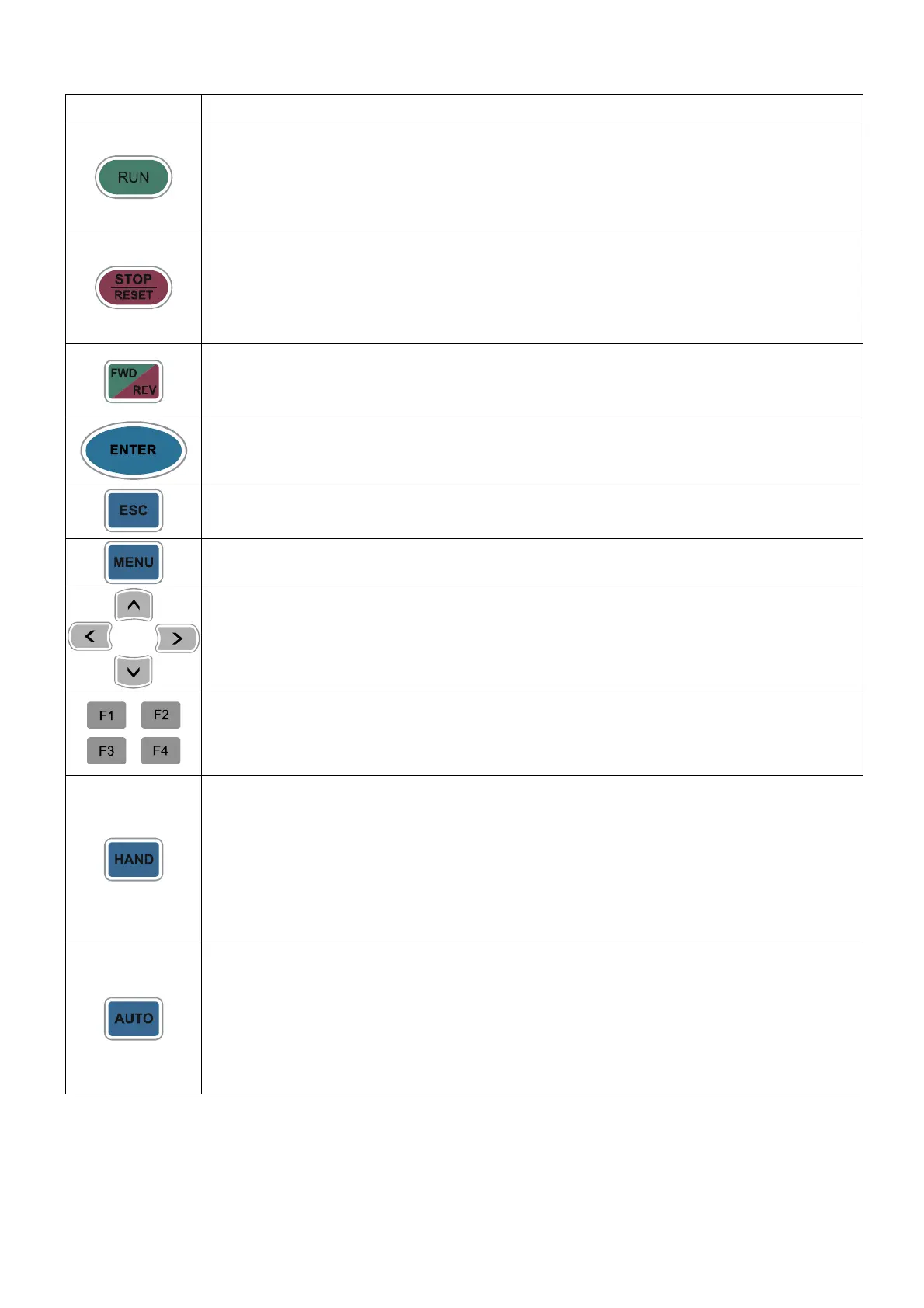

Descriptions of Keypad Functions
Key
Descriptions
Start Operation Key
1. It is only valid when the source of operation command is from the keypad.
2. It can operate the hybrid servo drive by the function setting and the RUN LED will be on.
3. It can be pressed repeatedly during stop.
4. When enabling “HAND” mode, it is only valid when the source of operation command is
from the keypad.
Stop Command Key. This key has the highest processing priority in any situation.
1. When it receives STOP command, no matter the hybrid servo drive is in operation or stop
status, the hybrid servo drive needs to execute “STOP” command.
2. The RESET key can be used to reset the drive after the fault occurs. For those faults that
cannot be reset by the RESET key, see the fault records after pressing MENU key for
details.
Operation Direction Key
1. This key is only control the operation direction NOT for activate the drive. FWD: forward,
REV: reverse.
2. Refer to the LED descriptions for more details.
ENTER Key
Press ENTER and go to the next level. If it is the last level then press ENTER to execute the command.
ESC Key
ESC key function is to leave current menu and return to the last menu. It is also functioned as a
return key in the sub-menu.
Press menu to return to main menu.
Direction: Left/Right/Up/Down
1. In the numeric value setting mode, it is to move the cursor and change the numeric value.
2. In the menu/text selection mode, it is for item selection.
Function Key
1. The functions keys have factory settings and can be defined by users.
2. Other functions must be defined by TPEditor first.
HAND Key
1. This key is controlled by the parameter settings of the source of Hand frequency and hand
operation. The factory settings of both source of Hand frequency and hand operation are
the digital keypad.
2. Press HAND key at stop, the setting will switch to hand frequency source and hand
operation source. Press HAND key when the hybrid servo drive is running, it stops the
hybrid servo drive first (display AHSP warning), and switch to hand frequency source and
hand operation source.
1. This key is controlled by the parameter settings of the source of AUTO frequency and
AUTO operation. The factory setting is the external terminal (source of operation is
4-20mA).
2. Press Auto key at stop, the setting will switch to hand frequency source and hand
operation source. Press Auto key when the hybrid servo drive is running, it stops the
hybrid servo drive first (display AHSP warning), and switch to auto frequency source and
auto operation source.
