Chapter 1. Description of Hybrid Servo Drives | VFD-VJ
1-15

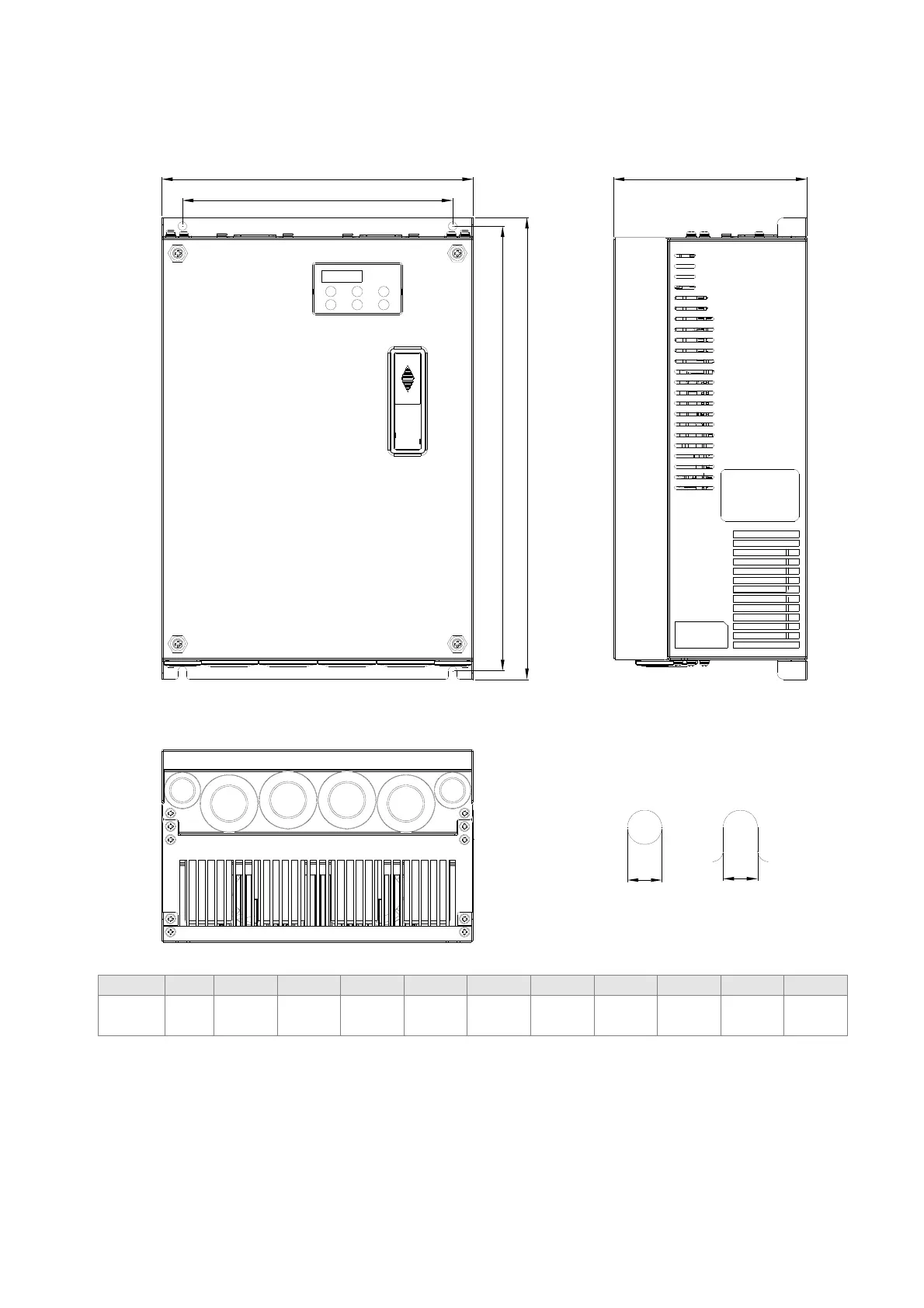

1-5 Product Dimensions
Frame C of VJ-A:
VFD110VL23A-J
W
W1
H1
H
D
S1
S1
Frame W W1 H H1 H2 H3 D Ø Ø1 Ø2 Ø3
C
235
[9.25]
204
[8.03]
350
[13.78]
337
[13.27]
320
[12.60]
-
146
[5.75]
6.5
[0.26]
-
34
[1.34]
22
[0.87]
Unit: mm [inch]
