Delta VFD110VL43C-J User Manual

Appendix B: CANopen Overview | VFD-VJ
Apx B - 6
B-2 Wiring for CANopen

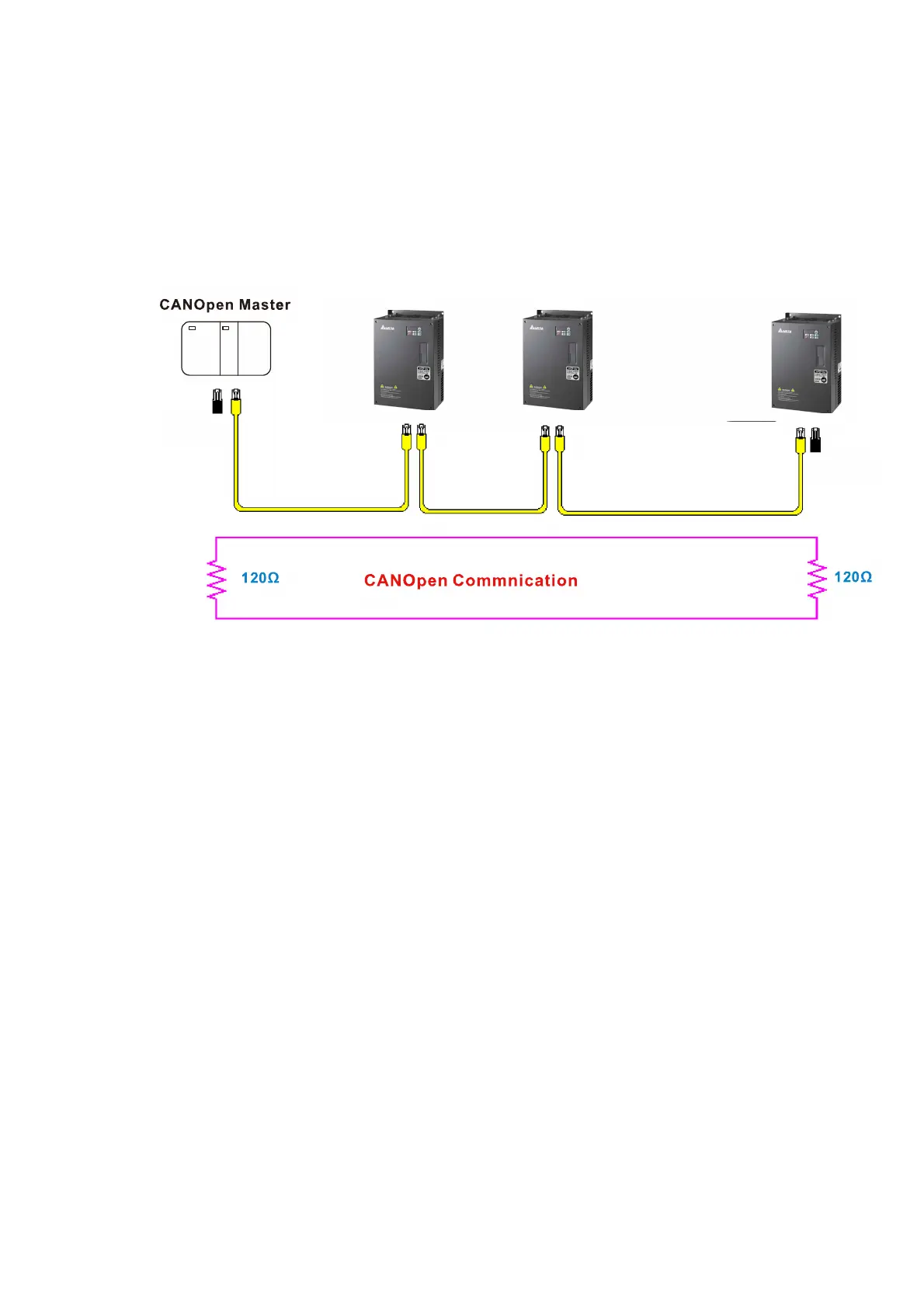

The wiring between CANopen and VJ doesn’t require any external communication card. Use an
RJ45 cable to connect CANopen to a VJ. You must terminate the two farthest ends with 120Ω
terminating resistors as shown in the picture below.
M 
M  M 
M
 
......
Terminal
Resistor
Terminal
Resistor
