Chapter 3. Machine Adjustment Procedure | VFD-VJ
3-2

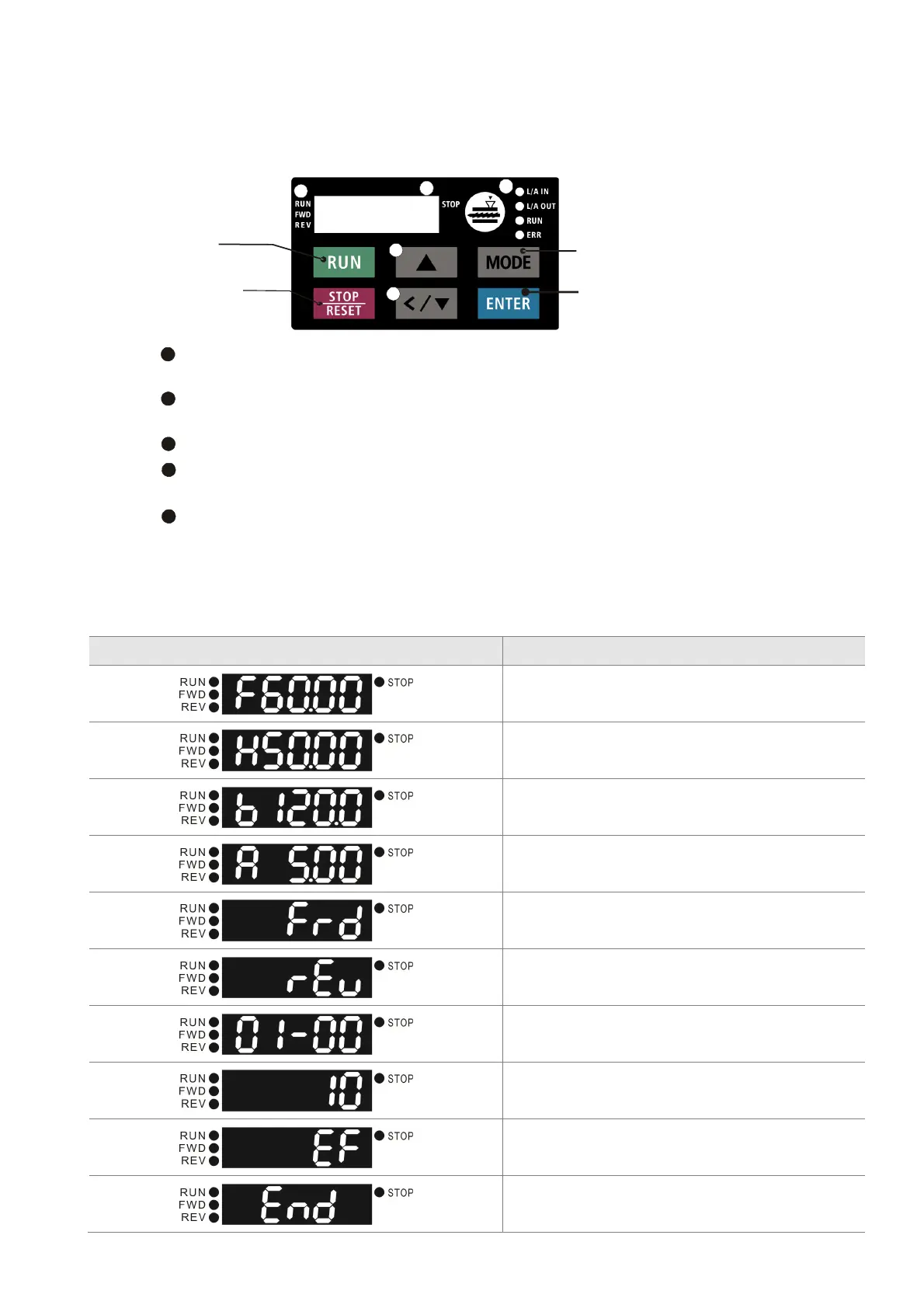

3-1 Description of Control Panel
Appearance of Keypad Control Panel KPVJ-LE02
ENTER
To enter/modify programming parameters.
MODE
Change between different display mode.
LED display
Indicate frequency, voltage, current, user defined units and etc..
Status display
Display driv’s current status
RUN key:
to start moto drive
operation
UP key
Set the parameter value and change the numeric data such as frequency.
CANopen indicator light
1
2
3
4
1
2
3
4
5
5
Set the parameter value and change the numeric data.
Press and hold the MODE key then you can use the Left key.
Left/ Down key
STOP/RESET key
Stop drive’s operation or
reset it in case of anormaly
Description of Displayed Function Items
Displayed Item Description
The current frequency set for the hybrid servo
drive
The frequency delivered by hybrid servo drive
to the motor
The user-defined physical quantity (Pr. 00-04)
Load current
Forward command
Reverse command
Displays the selected parameter
Display the parameter value
Display the external fault
If the “End” message (as shown in the left
figure) is displayed on the display area for
To Next Page
