Delta VFD150VL43A-J - Page 17

1-10
Flange Mounting

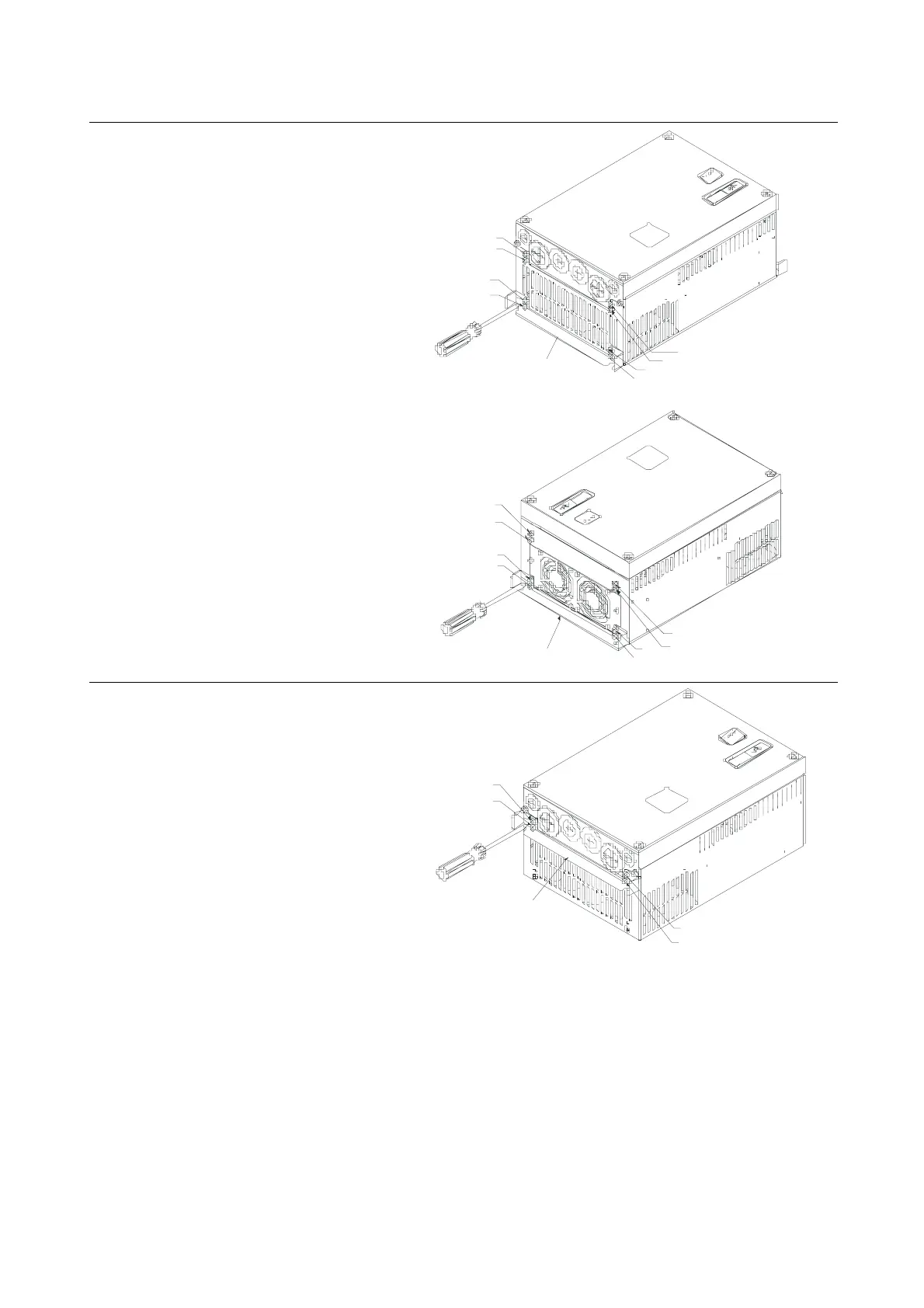

Step 1:
Please take out the 16 screws (8
screws for each top and bottom side of
the drive) and remove the fixed plate 1
and fixed plate 2) as shown in the
following figures.
3
4
1
2
7
8
5
6
fixed plate 1
1
2
5
6
3
4
7
8
fixed plate 2
Step 2:
place the 8 screws back in to secure
the fixed plate 1 and fixed plate 2 (as
shown in the following figures) with the
following torque.
Frame No. C: 14-17kgf-cm
[12.2-14.8in-lbf]
Frame No. D: 20-25kgf-cm
[17.4-21.7in-lbf]
Frame No. E: 20-25kgf-cm
[17.4-21.7in-lbf]
1
2
3
4
fixed plate 1
