Delta VFD150VL43C-J User Manual

Chapter 4 Description of Parameters | VFD-VJ
4-61

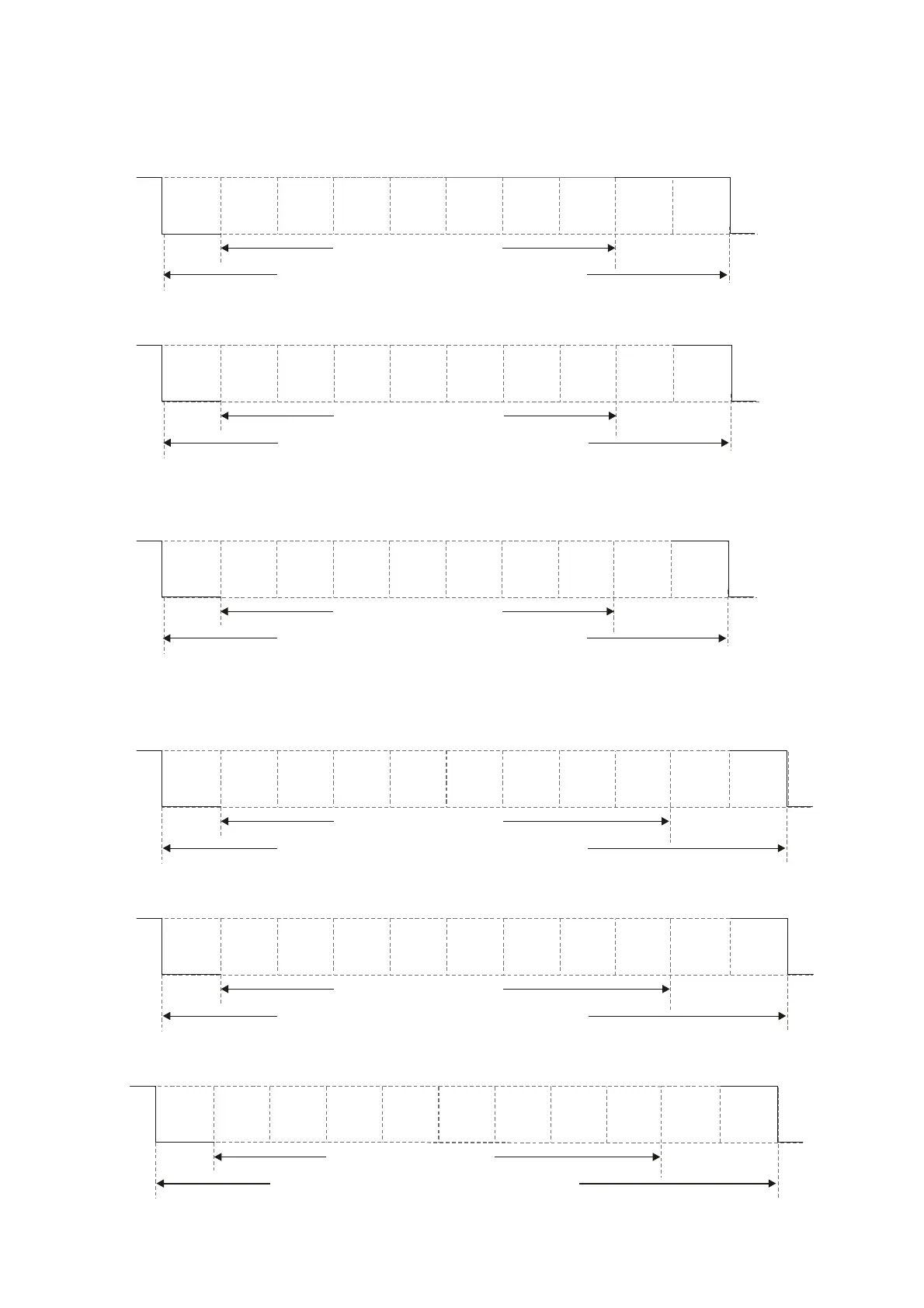

2. Data Format
10-bit character frame (For ASCII):
(7, N, 2)
Start
bit
01
2
3456
Stop
bit
7-data bits
10-bits character frame
Stop
bit
(7, E, 1)
Even
parity
Start
bit
01
2
3456
Stop
bit
7-data bits
10-bits character frame
(7, O, 1)
Odd
parity
Start
bit
01234
5
6
Stop
bit
7-data bits
10-bits character frame
11-bit character frame (For RTU):
(8, N, 2)
Start
bit
0
12
3456
Stop
bit
8-data bits
11-bits character frame
Stop
bit
7
(8, E, 1)
Start
bit
0
12
3456
Stop
bit
8-data bits
11-bits character frame
7
Even
parity
(8, O, 1)
Start
bit
01
2
3456
Stop
bit
8-data bits
11-bits character frame
7
Odd
parity
