Delta VFD150VL43C-J

Chapter 1. Description of Hybrid Servo Drives | VFD-VJ
1-17

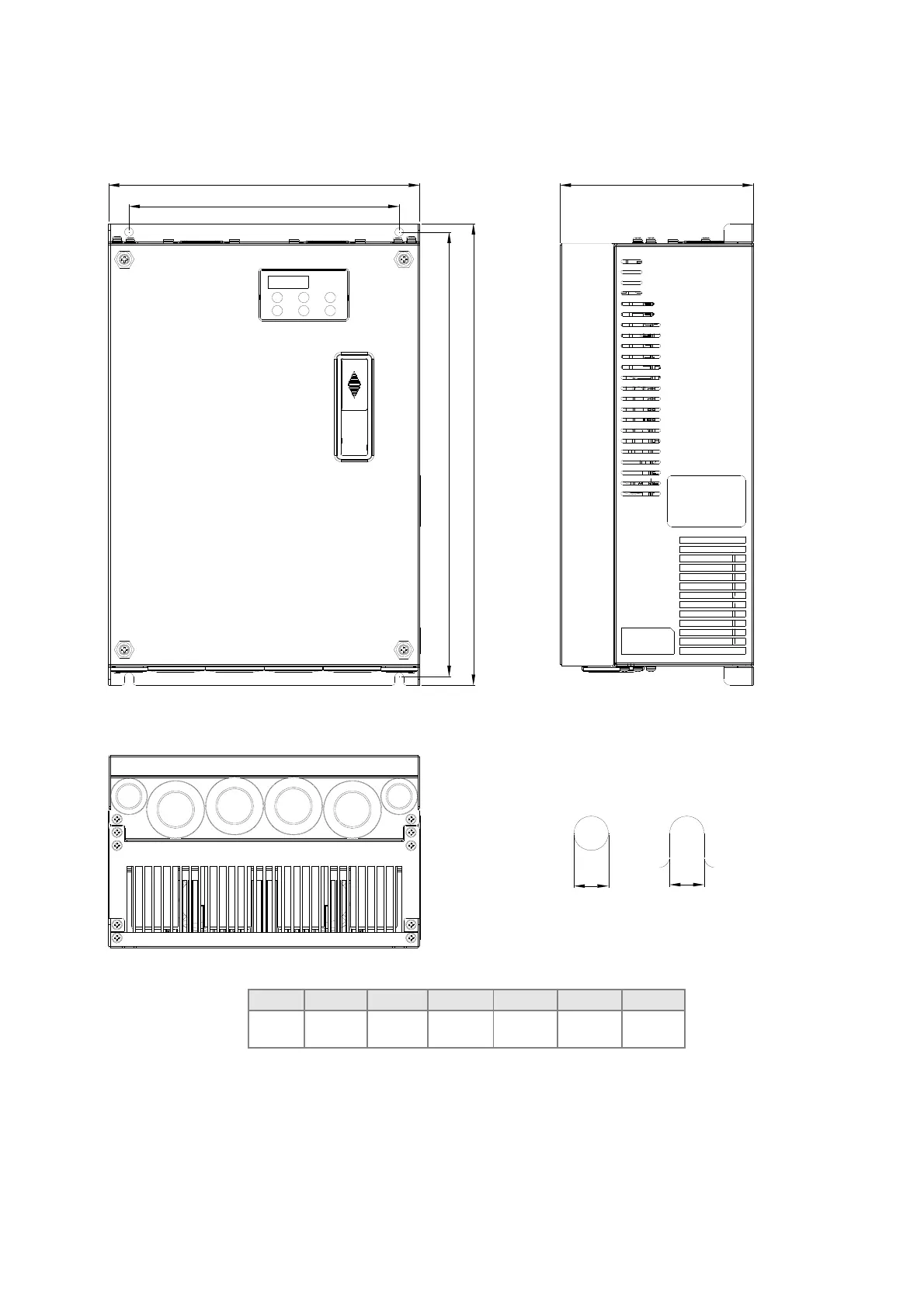

Frame C of VJ-C:
VFD110VL43C-J, VFD150VL43C-J,
VFD185VL43C-J, VFD220VL43C-J
W
W1
H1
H
D
S1
S1
Frame W W1 H H1 D S1
C
235
[9.25]
204
[8.03]
350
[13.78]
337
[13.27]
146
[5.75]
6.5
[0.26]
Unit: mm [inch]
