Chapter 2 Wiring | VFD-VJ
2-20
Frame
Size
AWG Vendor P/N
A
(MAX.)
B
(MAX.)
C
(MIN.)
D
(MAX.)
d2
(MIN.)
E
(MIN).
F
(MIN.)
W
(MAX.)
T
(MAX.)
E4
4 K.S.T RNB22-8
50.0 16.0 10.0 27.0 8.3 13.0 14.0 28.0 6.0
2 K.S.T RNBS38-8
1/0 K.S.T RNB60-8
2/0 K.S.T RNB70-8
3/0 K.S.T RNB80-8
4/0 K.S.T SQNBS100-8
Unit: mm
NOTE:

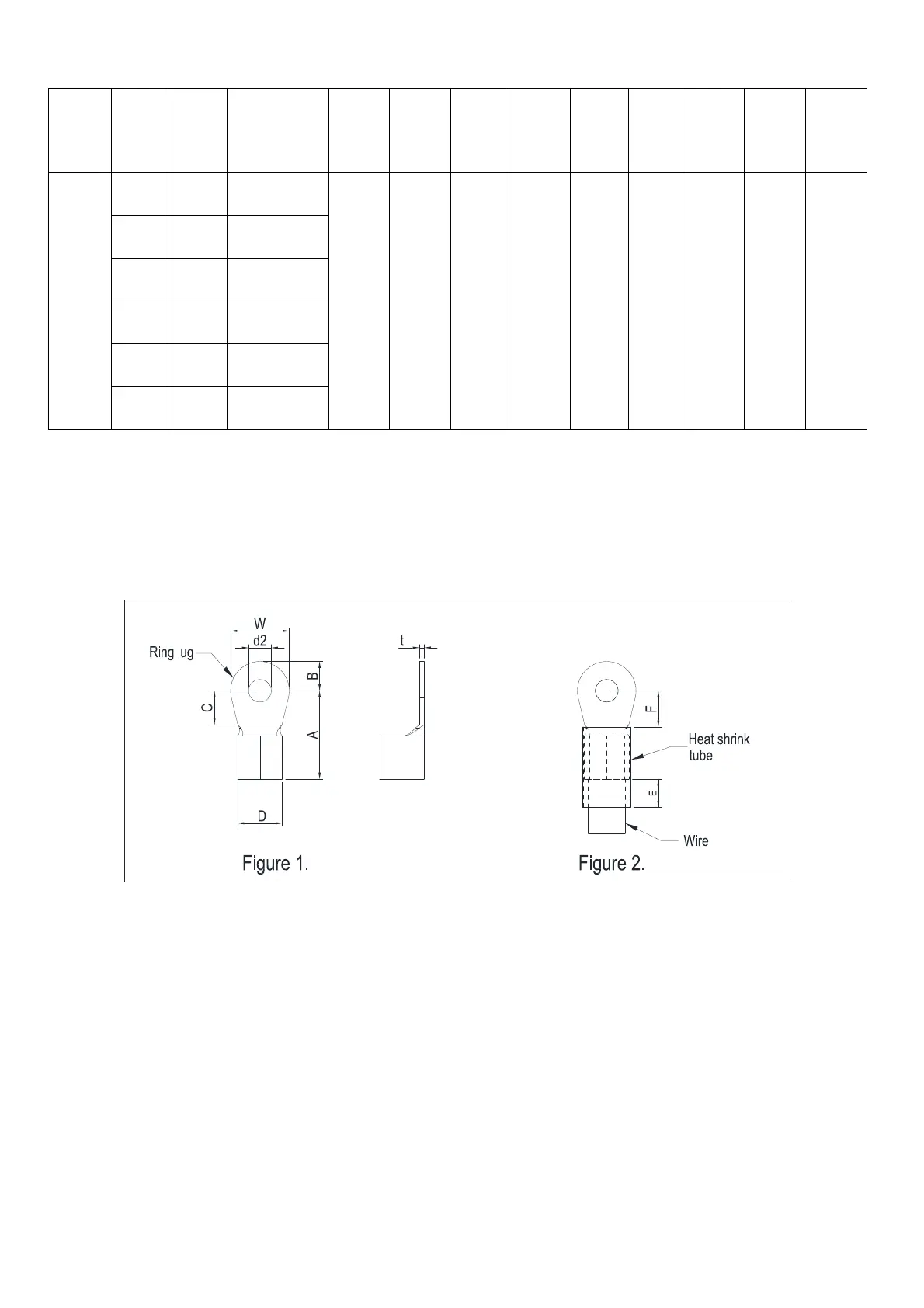

The following additional terminals are needed when wiring. The additional terminal dimension should comply
with Figure 1 below.
After crimping the wire to the ring lug (must be UL approved), UL and CSA approved R/C (YDPU2), install
heat shrink tubing rated at a minimum of 600 V
AC
insulation over the live part. Refer to Figure 2 below.
