Chapter 8 Option CardsC2000 Plus
8-51
8-17 CMC-PN01 -- Communication card, PROFINET
8-17-1 Features
CMC-PN01 connects C2000 Plus drive to PROFINET to exchange data with the host controller easily.
This simple network solution saves cost and time for connection and installation of factory automation.
Moreover, its components are compatible with suppliers’.
By installing CMC-PN01 in C2000 Plus through the main PROFINET device, you can:
1. Control the drive through PROFINET
2. Modify the drive’s parameters through PROFINET
3. Monitor the drive’s status through PROFINET.

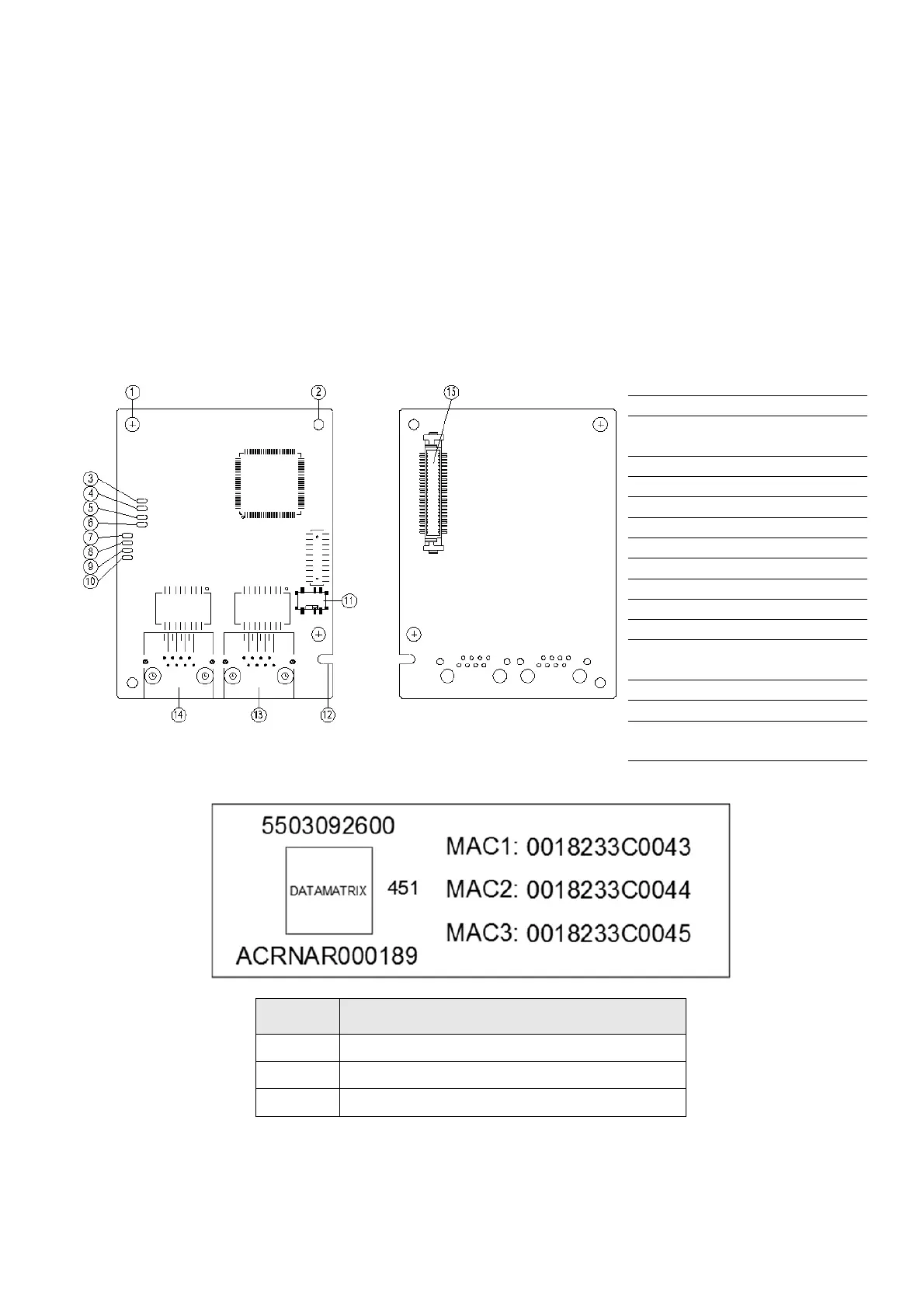

8-17-2 Product profile
1. Screw fixing hole
2. Communication card fixing
hole
3. Indicator light: Ready out
4. Indicator light: MT out
5. Indicator light: SD
6. Indicator light: BF out
7. Indicator light: ACT PHY2
8. Indicator light: Link PHY2
9. Indicator light: ACT PHY1
10. ndicator light: Link PHY2
11. ON / OFF switch
12. Fool-proofing slot to the
communication card
13. RJ45 port (Port2)
14. RJ45 port (Port1)
15. A port to connect with
control board
Label with MAC address
Definition Description
MAC1 Port 1 MAC Address
MAC2 Port 2 MAC Address
MAC3 Interface MAC Address
