Delta VFD25AMS43ANSAA - EMM-BPS02 - +24 V Power Extension Card

Chapter 8 Option CardsMS300
174

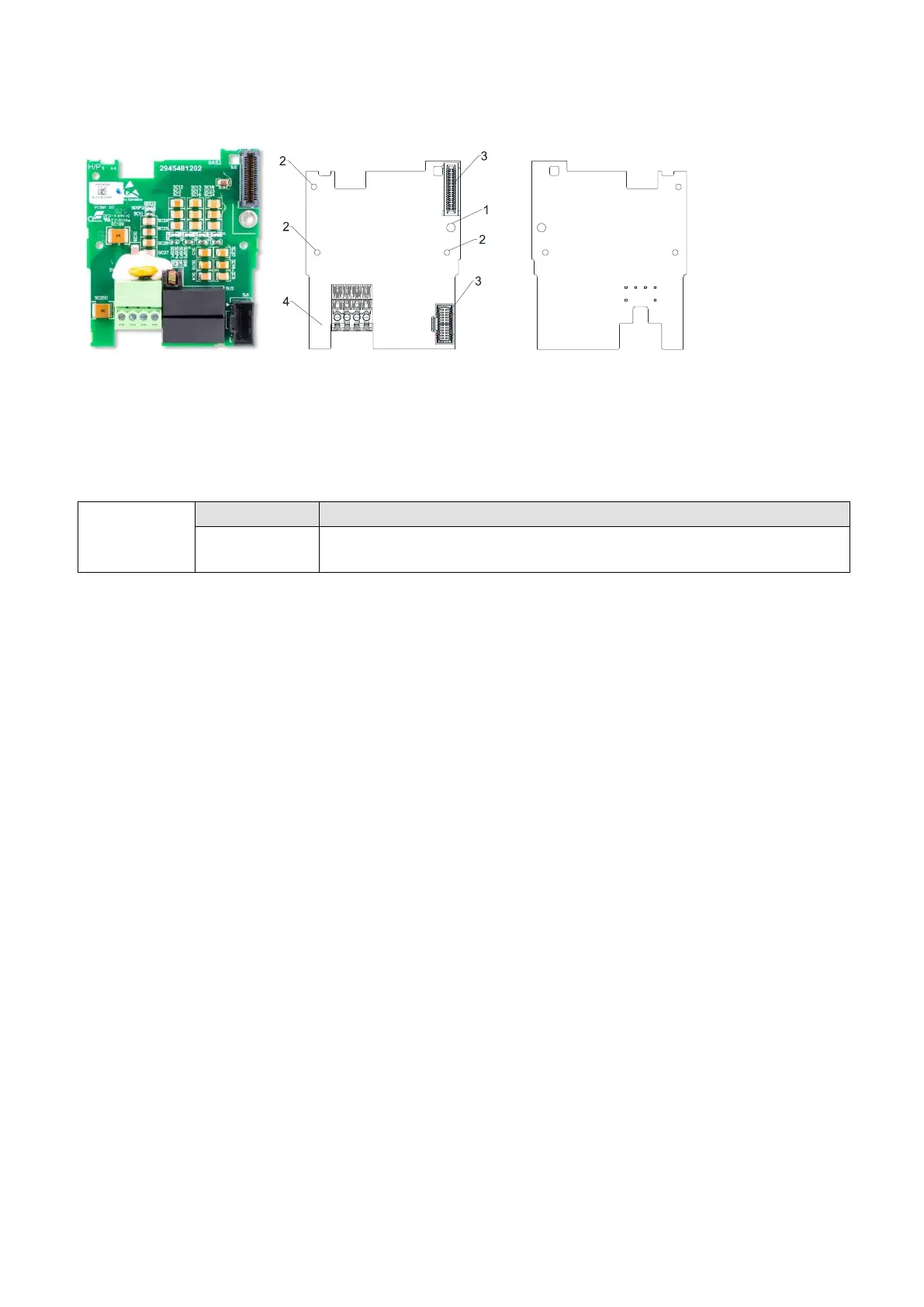

8-8 EMM-BPS02 -- +24V Power Extension Card
8-8-1 Product Profile
Figure 8-47
Figure 8-48
Wire gauge: 0.25–0.5 mm
2
(24–20 AWG)
Stripping length: 7–8 mm
Screw torque: 2 kg-cm / (1.7 Ib-in.) / (0.2 Nm)
1. Screw fixing
hole
2. Positioning hole
3. AC motor drive
connection port
(Refer to
subsection 8-1-2
for installation)
4. AC motor drive
connection port
(Refer to
subsection 8-1-4
for installation)
5. +24 V terminal
block
Extra 24V
Power Card
Terminal
Description
24V GND
Input power: 24 V ±5%
Maximum input current: 0.5 A
Table 8-44
8-8-2 Features
1. Provides external power supply
2. Supports 24 V
DC
input.
3. Supports parameter reading and writing and status monitoring of the drive.
8-8-3 Specifications
When the drive is only powered by the EMM-BPS02, the EMM-BPS02 ensures the communication
works normally, and supports all communication cards and the following functions.
 Parameter reading and writing
 Keypad display
 Keys on the keyboard panel (except the RUN key)
 Analog input with +10 V terminal supply power
 Multi-function inputs (FWD, REV, MI1–MI7) with +24 V terminal or external power supply
 Relay output
 Pulse sequence frequency command
The following functions does not support:
 DFM digital frequency signal output
 AFM multi-function analog voltage output
 PLC functions
