Delta VFD300C43S-HS User Manual

Chapter 7 Optional AccessoriesC2000-HS
7-40
Frame E
Applicable model
VFD1100C43A-HS
Applicable for MKC-EFKM4
Applicable for MKC-EFKB

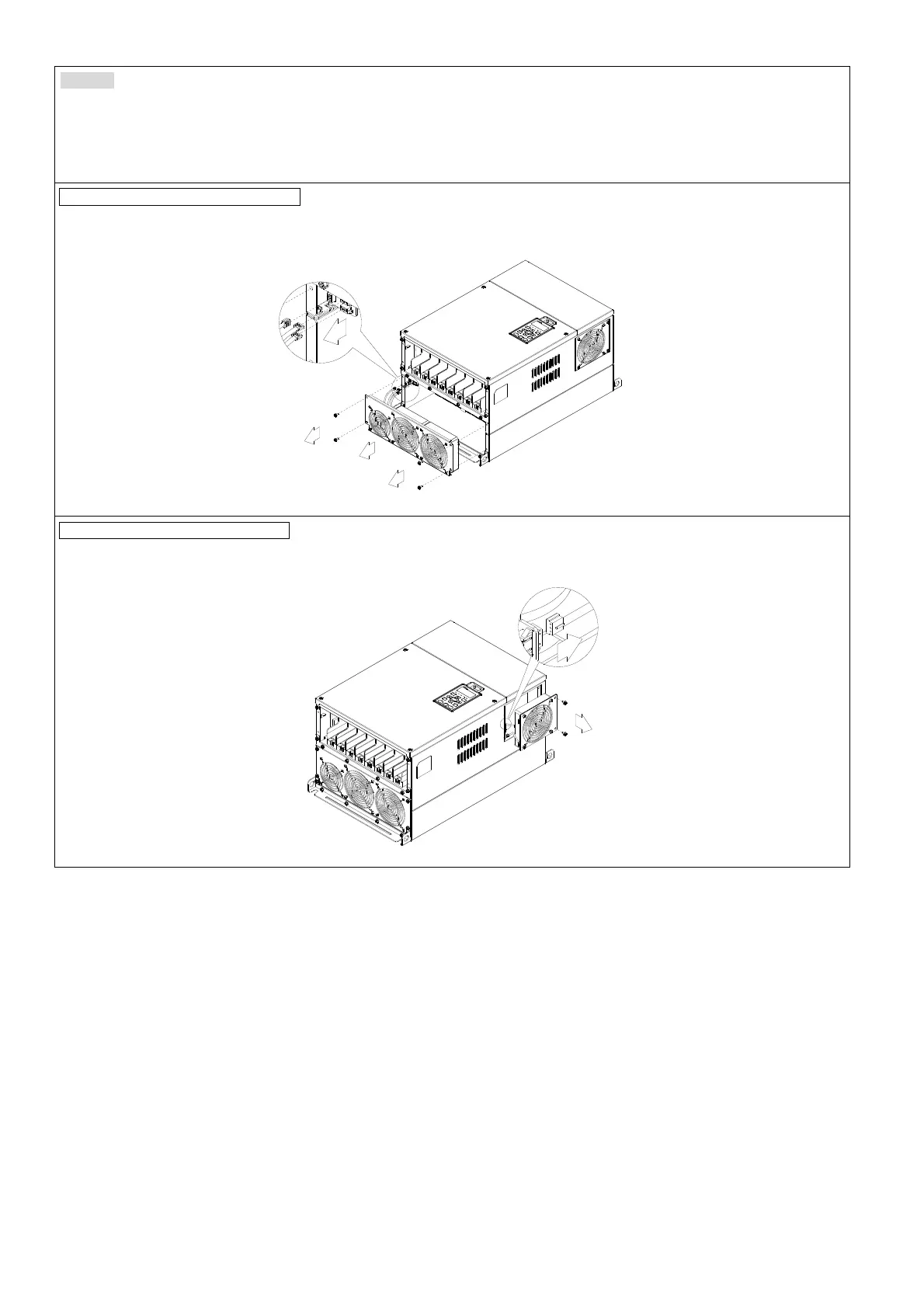

Model “MKC-EFKM4” Heat Sink Fan
1. Loosen screw 1–4 (figure 2), disconnect fan power, and pull out the fan. (As shown in the enlarged picture 3)
Screw1–4 Torque: 24–26 kg-cm / [20.8–22.6 lb-in.] / [2.4–2.5 Nm]
1
2
3
4
Figure 1
Model “MKC-EFKB” Capacitor Fan
1. Loosen screw 1–2 (figure 3), disconnect fan power, and pull out the fan. (As shown in the enlarged picture 3)
Screw1–2 Torque: 24–26 kg-cm / [20.8–22.6 lb-in.] / [2.4–2.5 Nm]
1
2
Figure 2
