Delta VFD300C43S-HS User Manual

Chapter 7 Optional AccessoriesC2000-HS
7-41
Frame F
Applicable model
VFD1600C43A-HS
Fan model “MKC-FFKM” Heat Sink Fan

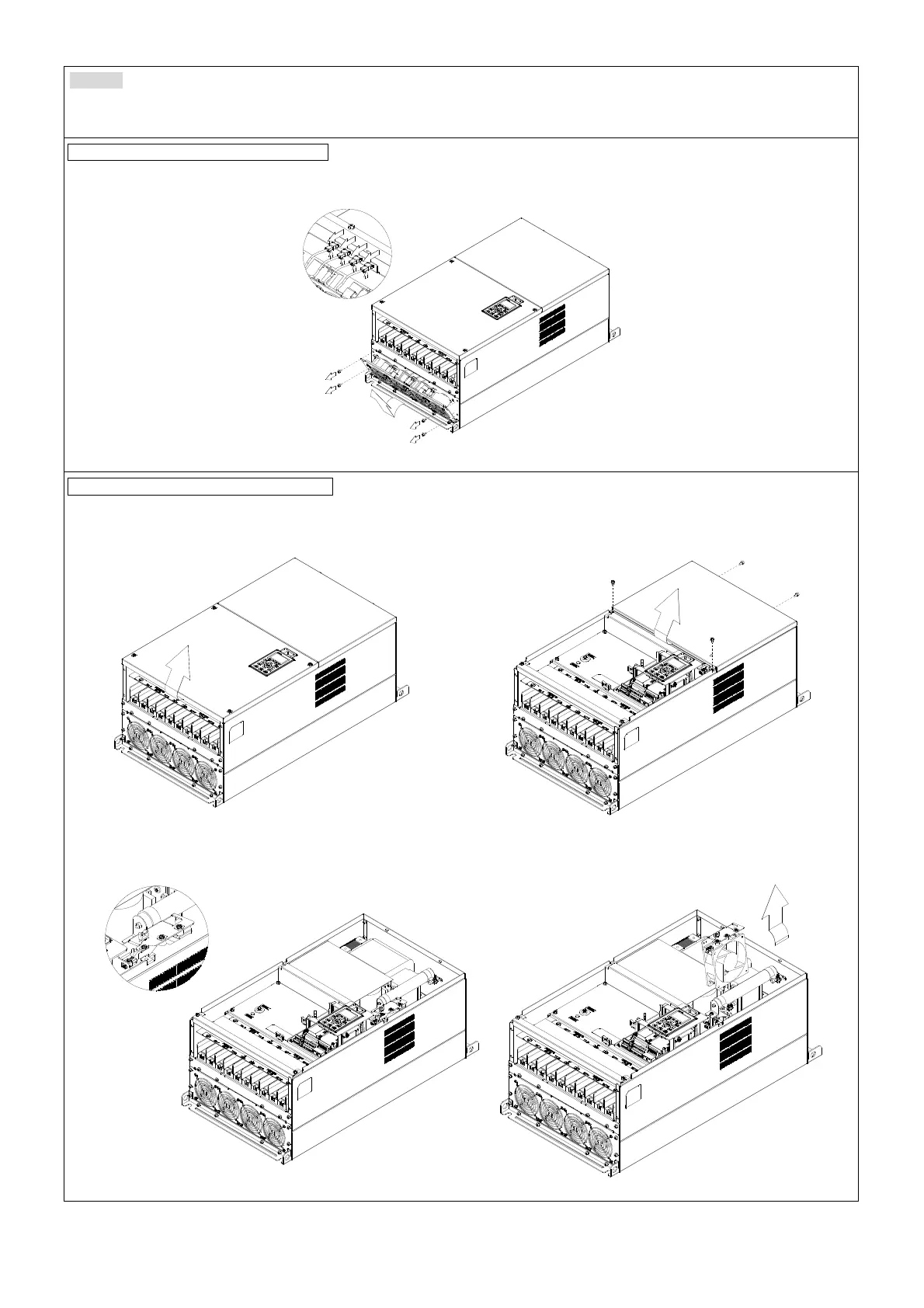

Loosen the screws and plug out the power of fan before removing (figure 1).
Screw torque: 24–26 kg-cm / [20.8–22.6 Ib-in.] / [2.4–2.5 Nm]
1
4
3
2
Figure 1
Fan model “MKC-FFKB2” Capacitor Fan
1. Loosen the screw (figure 1) and removes the cover.
Screw torque:
12–15 kg-cm / [10.4–13 Ib-in.] /
[1.2–1.5 Nm]
1
3
2
4
Figure 1
2. Loosen the screw (figure 2) and removes the cover.
Screw torque: 24–26 kg-cm / [20.8–22.6 Ib-in.] /
[2.4–2.5 Nm]
8
7
6
5
Figure 2
3. Loosen the screws and remove the fan (figure 3 and figure 4). Screw torque: 12–15 kg-cm / [10.4–13 Ib-in.] / [1.2–1.5 Nm]
11
10
9
11
10
9
Figure 3 Figure 4
