Chapter 7 Optional AccessoriesC2000-HS
7-42
Frame G
Applicable model
VFD2200C43A-HS

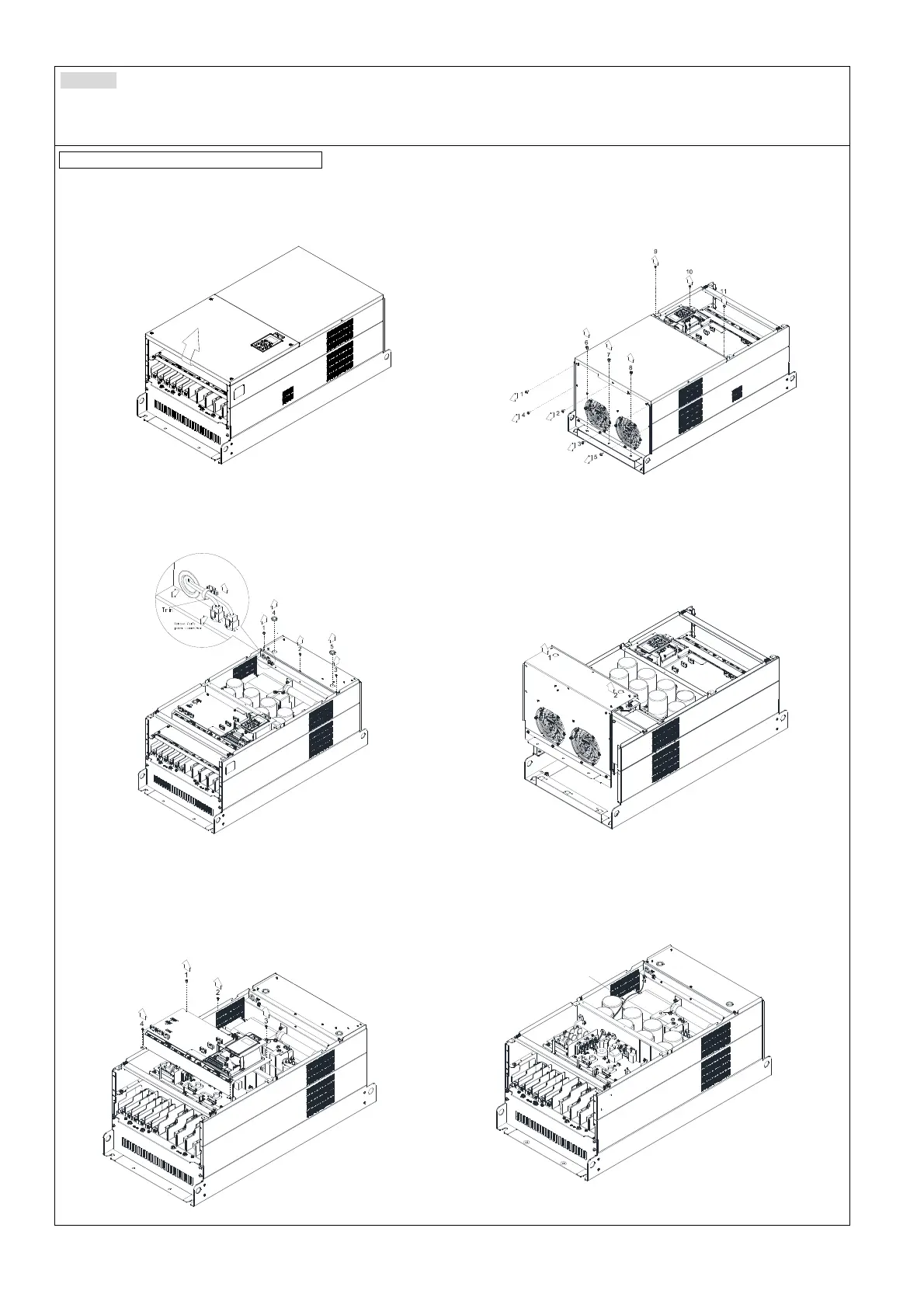

Fan model “MKC-GFKM” Heat Sink Fan
1. Loosen the screw (figure 1) and remove the cover.
Screw torque: 12–15 kg-cm / [10.4–13.1 Ib-in.] /
[1.2–1.5 Nm]
1
4
2
3
Figure 1
2. For 1–8 shown in the figure 2: Loosen the screws
Screw torque: 35–40 kg-cm / [30.4–34.7 Ib-in.] /
[3.4–3.9 Nm]
3. For 9–11 shown in the figure 2: Loosen the screws and
removes the cover. Screw M4 torque:
14–16 kg-cm /
[12.2–13.9 Ib-in.] / [1.4–1.6 Nm]
Figure 2
4. Loosen screw 1, 2, 3 and remove the protective ring (as
shown in figure 3) Screw torque: 14–16 kg-cm / [12.2–13.9
Ib-in.] / [1.4–1.6 Nm]
Figure 3
5. Lift the fan by putting your finger through the protective
holes, as indicates in 1 and 2 on the figure 4.
Figure 4
6. If you are switching new fan on an old AC motor drive,
follow the steps below:
Loosen screws 1–5, remove the cover (as below figure
shown) M4 screw torque: 14–16 kg-cm / [12.2–13.9 lb-in] /
[1.4–1.6 Nm]
Figure 5
7. Add cable model 3864483201 to connect the power board
and fan connector. (The cable 3864483201 goes with the
fan as accessory)
Figure 6
Cable 3864483201
