Delta VFD300C43S-HS User Manual

Chapter 8 Option CardsC2000-HS
8-44
8-16-7 Network Connection

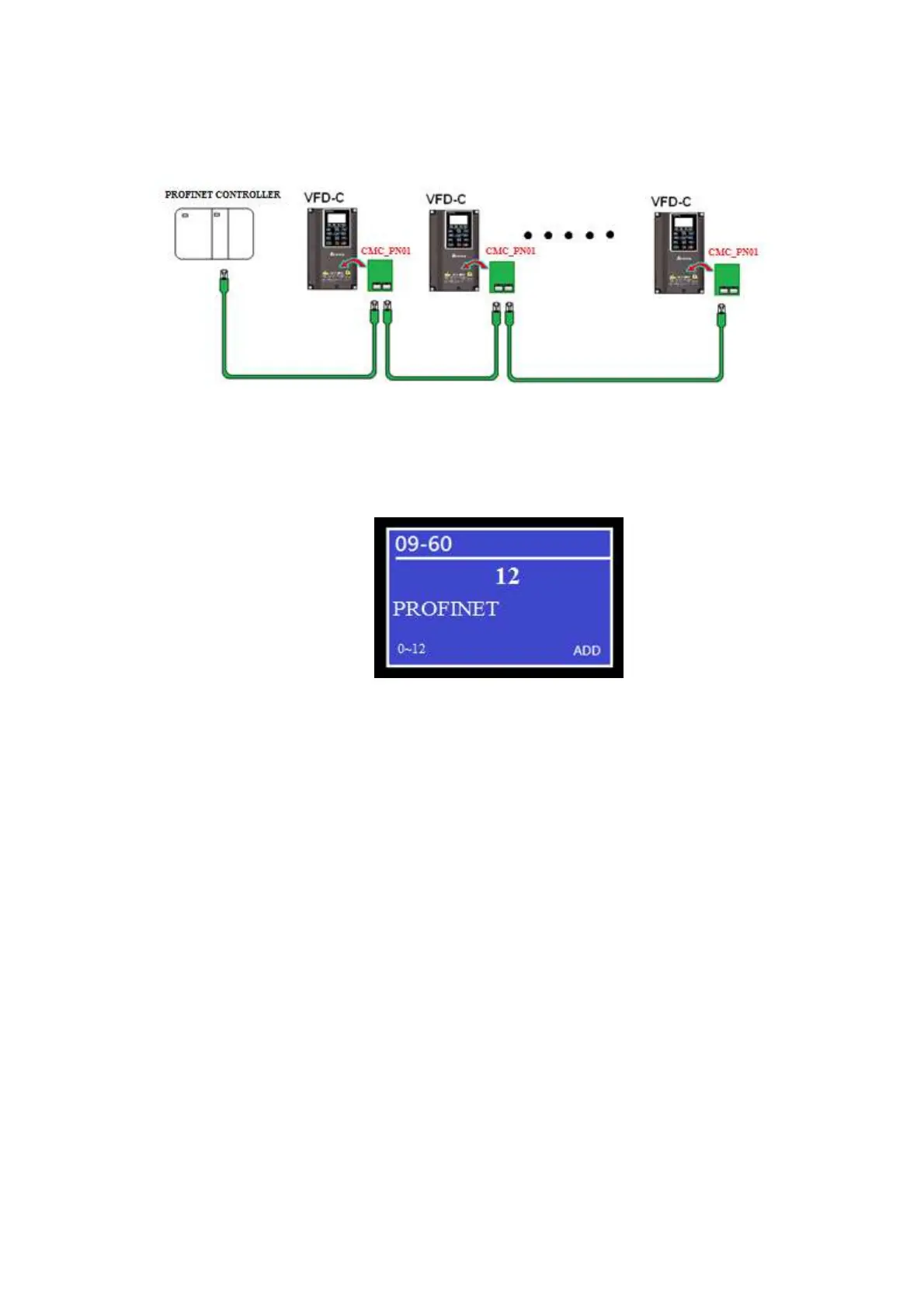

Wiring of CMC-PN01 is as following:
When the hardware is installed and power on, the current set value of Pr. 09-60 will be 12, and
shows “PROFINET” on the display.If the above information does not show on the display, please
check the version of VFD-C2000-HS and the connection of the card.
