Delta VFD300C43S-HS User Manual

Chapter 12 Description of Parameter SettingsC2000-HS
12.1-02-5
Settings Functions Descriptions
11
B.B input from external
(B.B: Base Block)
ON: the output of the drive stops immediately. The motor is in
free run and the keypad displays the B.B. signal. Refer to
Pr.07-08 for details.

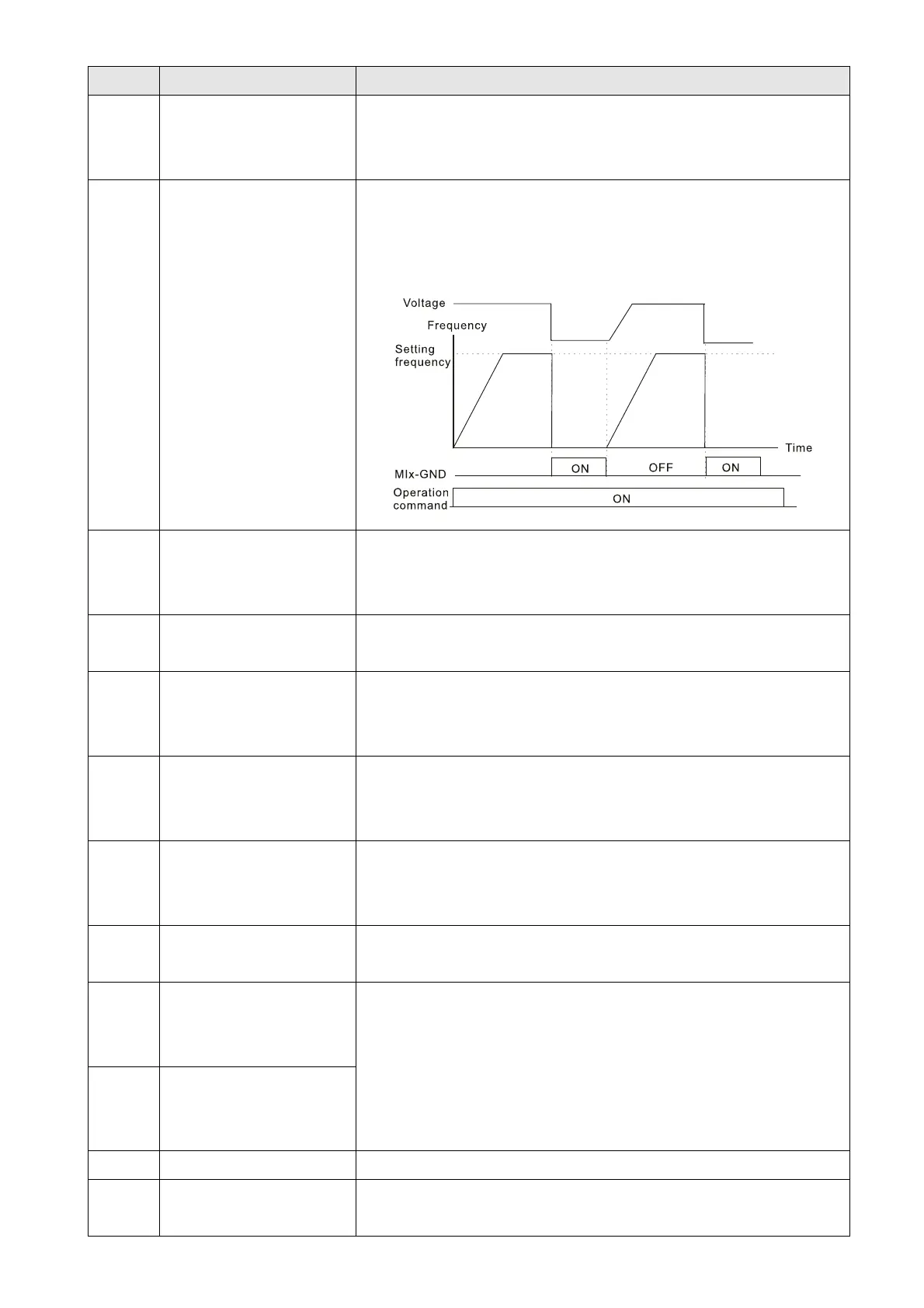

12
Output Stop
(Output pause)
When the switch is ON, output of the drive stops immediately and
the motor is in free run status. The drive is in output waiting
status until
the switch is turned to OFF, and then the drive restarts
and runs to the current setting frequency.
13
Cancel the setting for
auto-acceleration /
auto-deceleration time
Set Pr.01-44 to one of the 01–04 setting modes before using this
function. When this function is enabled, OFF is for auto mode
and ON is for linear acceleration / deceleration.
14
Switch between motor 1
and motor 2
ON: use parameters for motor 2
OFF: use parameters for motor 1
15
Rotating speed
command from AVI
ON: force the source of the frequency to be AVI. (If the rotating
speed commands are set to AVI, ACI and AUI at the same time,
the priority is AVI＞ACI＞AUI)
16
Rotating speed
command from ACI
ON: force the source of the frequency to be ACI. (If the rotating
speed commands are set to AVI, ACI and AUI at the same time.
The priority is AVI＞ACI＞AUI)
17
Rotating speed
command form AUI
ON: force the source of the frequency to be AUI. (If the rotating
speed commands are set to AVI, ACI and AUI at the same time.
The priority is AVI＞ACI＞AUI)
18
Forced to stop
(Pr. 07-20)
ON: the drive ramps to stop according to the Pr.07-20 setting.
19
Digital Up command
ON: the frequency of the drive increases or decreases by one
unit. If this function remains ON continuously, the frequency
increases or decreases according to Pr.02-09 / Pr.02-10.
The Frequency command returns to zero when the drive stops,
and the displayed frequency is 0.0 Hz. If you select Pr.11-00, bit
7 = 1, the frequency is not saved.
20 Digital Down command
21 PID function disabled ON: the PID function is disabled.
22
Clear the counter
ON: the current counter value is cleared and displays 0. The
drive counts up when this function is disabled.
