Chapter 12 Description of Parameter SettingsC2000-HS
12.1-03-20

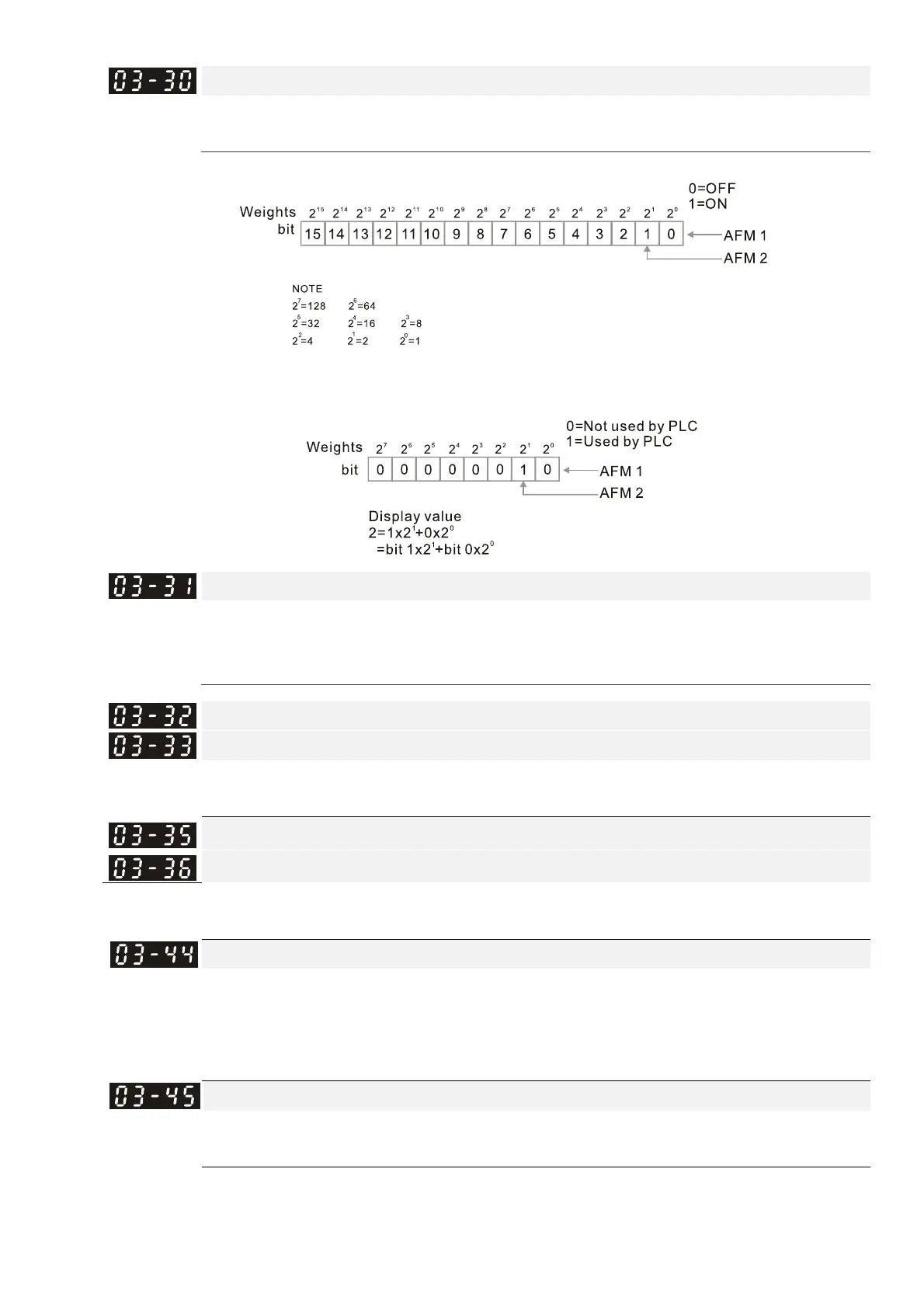

PLC Analog Output Terminal Status
Default: Read only
Settings Monitor the status of PLC analog output terminals
Pr. 03-30 displays the external multi-function output terminal that used by PLC.
For Example:
When Pr. 03-30 displays 0002h (hex), it means that AFM2 is used by PLC.
AFM2 Output Selection
Default: 0
Settings 0: 0–20mA output
1: 4–20mA output
AFM1 DC Output Setting Level
AFM2 DC Output Setting Level
Default: 0.00
Settings 0.00–100.00 %
AFM1 Filter Output Time
AFM2 Filter Output Time
Default: 0.01
Settings 0.00–20.00 sec.
Multi-function MO Output by AI Level Source
Default: 0
Settings 0: AVI
1: ACI
2: AUI
AI Upper Level
Default: 50.00
Settings -100.00–100.00 %
