Delta VFD300C43S-HS User Manual

Chapter 5 Main Circuit TerminalsC2000-HS
5-8

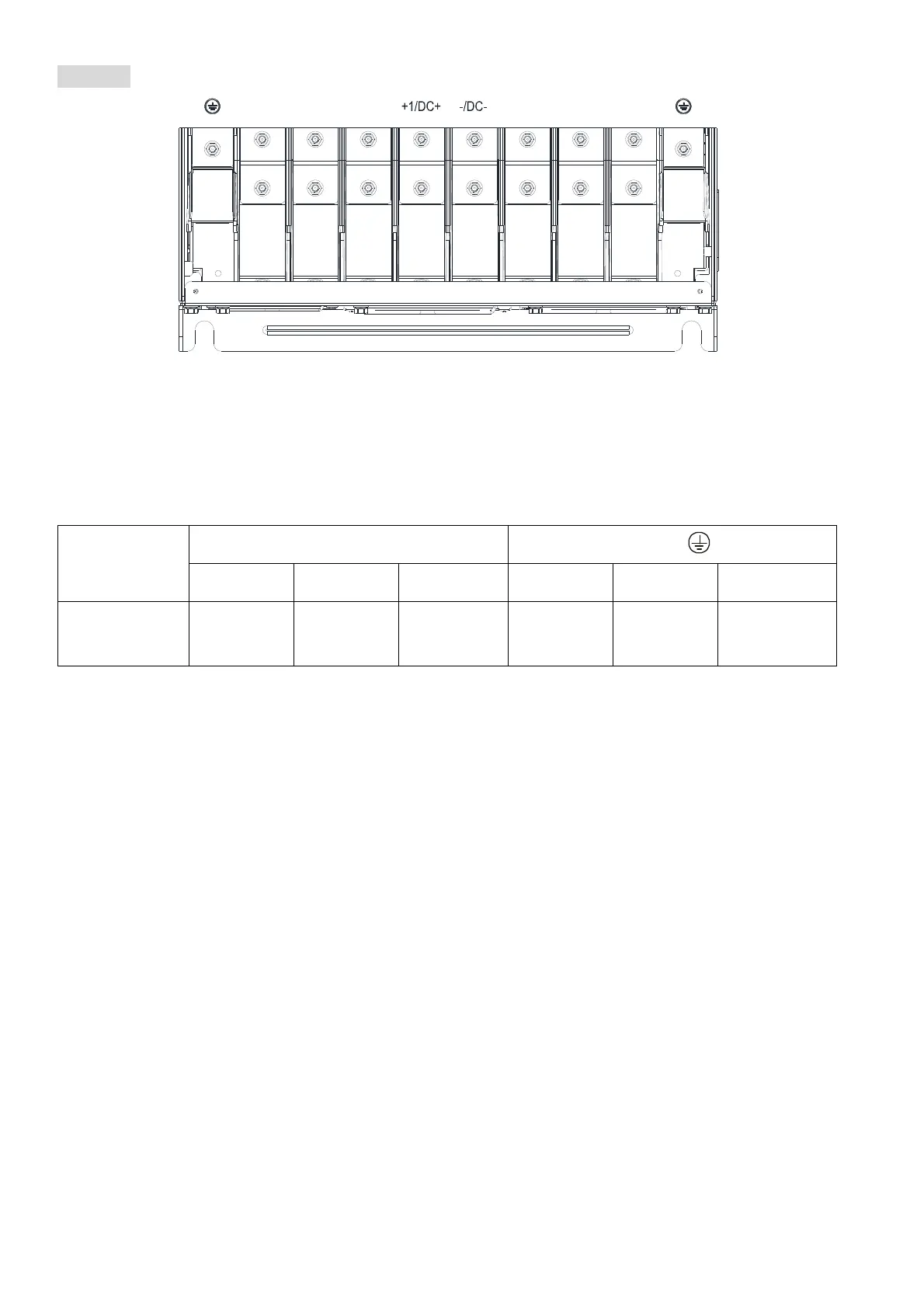

Frame E
T/L3S/L2R/L1 W/T3V/T2U/T1
 If you install at Ta 50°C environment, please select copper wire with voltage rating 600V and
temperature resistant at 75°C or 90°C.
 If you install at Ta 50°C above environment, please select copper wire with voltage rating 600V and
temperature resistant at 90°C or above.
 For UL installation compliant, please use copper wires for installation, the wire gauge is based on
temperature resistant at 75°C which is requested and recommended from UL. Do not reduce the
wire gauge when using higher temperature wire.
Model Name
Main Circuit Terminals
R/L1, S/L2, T/L3, U/T1, V/T2, W/T3, -/DC-, +1/DC+
Terminal
Max. Wire
Gauge
Min. Wire
Gauge
Screw Spec. and
Torque (±10%)
Max. Wire
Gauge
Min. Wire
Gauge
Screw Spec. and
Torque (±10%)
VFD1100C43A-HS
120 mm
2
*2
[4/0 AWG*2]
95 mm
2
*2
[3/0 AWG*2]
M8
180 kg-cm
[156.2 lb-in.]
[17.65 Nm]
95 mm
2
*2
[3/0 AWG*2]
95 mm
2
*2
[3/0 AWG*1]
M8
180 kg-cm
[156.2 lb-in.]
[17.65Nm]
