Delta VFD300C43S-HS User Manual

Chapter 7 Optional AccessoriesC2000-HS
7-23

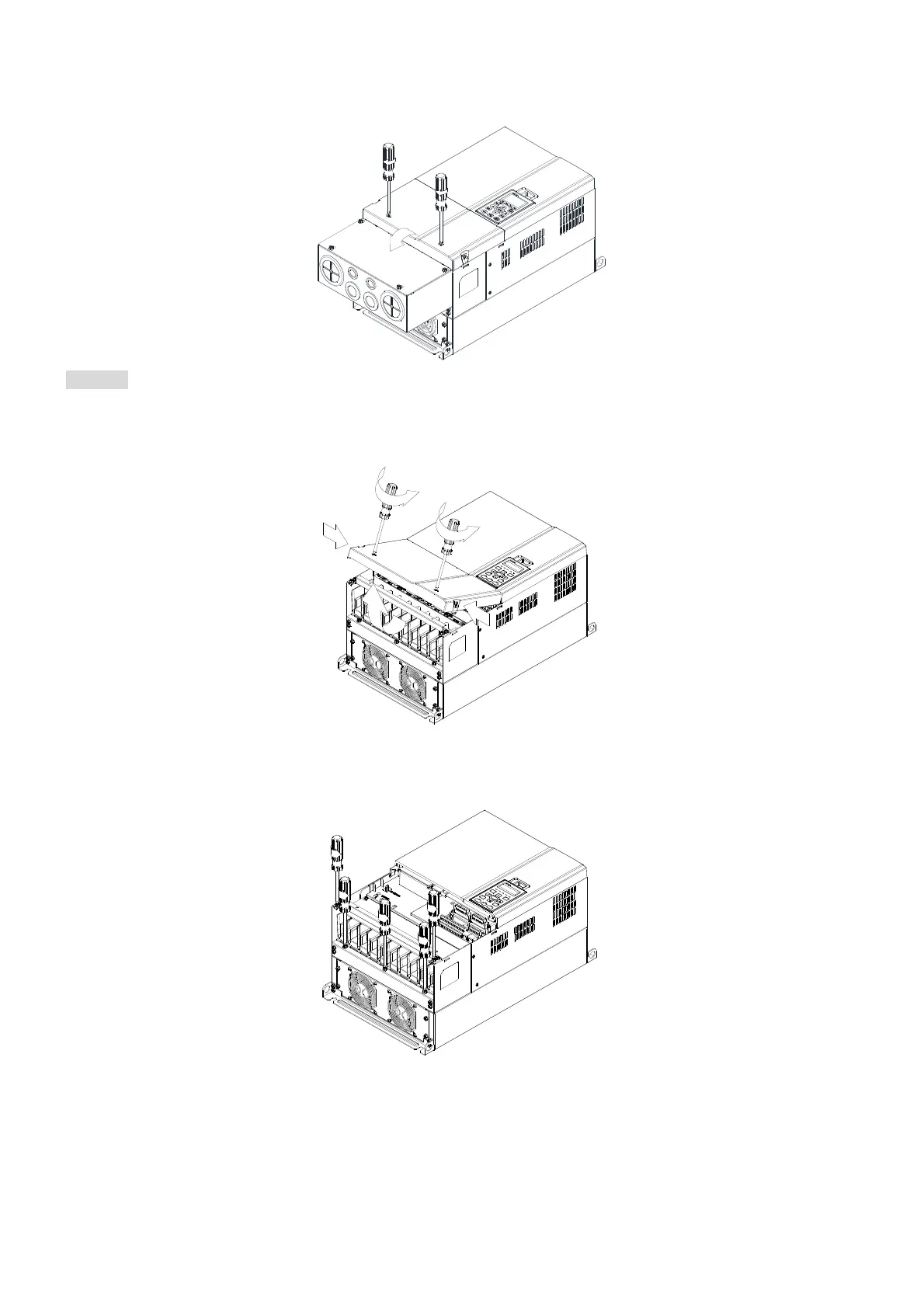

4. Fasten the 2 screws shown in the following figure.
Screw torque: 12–15 kg-cm / [10.4–13 Ib-in.] / [1.2–1.5 Nm]
Frame D
1. Loosen the cover screws and press the tabs on each side of the cover to remove the cover, as shown in the
following figure.
Screw torque: 12–15 kg-cm / [10.4–13 Ib-in.] / [1.2–1.5 Nm]
2. Remove the 5 screws shown in the following figure.
Screw torque:
24–26 kg-cm / [20.8–22.6 Ib-in.] / [2.4–2.5 Nm]

Delta VFD300C43S-HS Specifications

General

Brand	Delta
Model	VFD300C43S-HS
Category	DC Drives
Language	English
