Delta VFD370VL43C-J

Chapter 1. Description of Hybrid Servo Drives I VFD-VJ
1-18

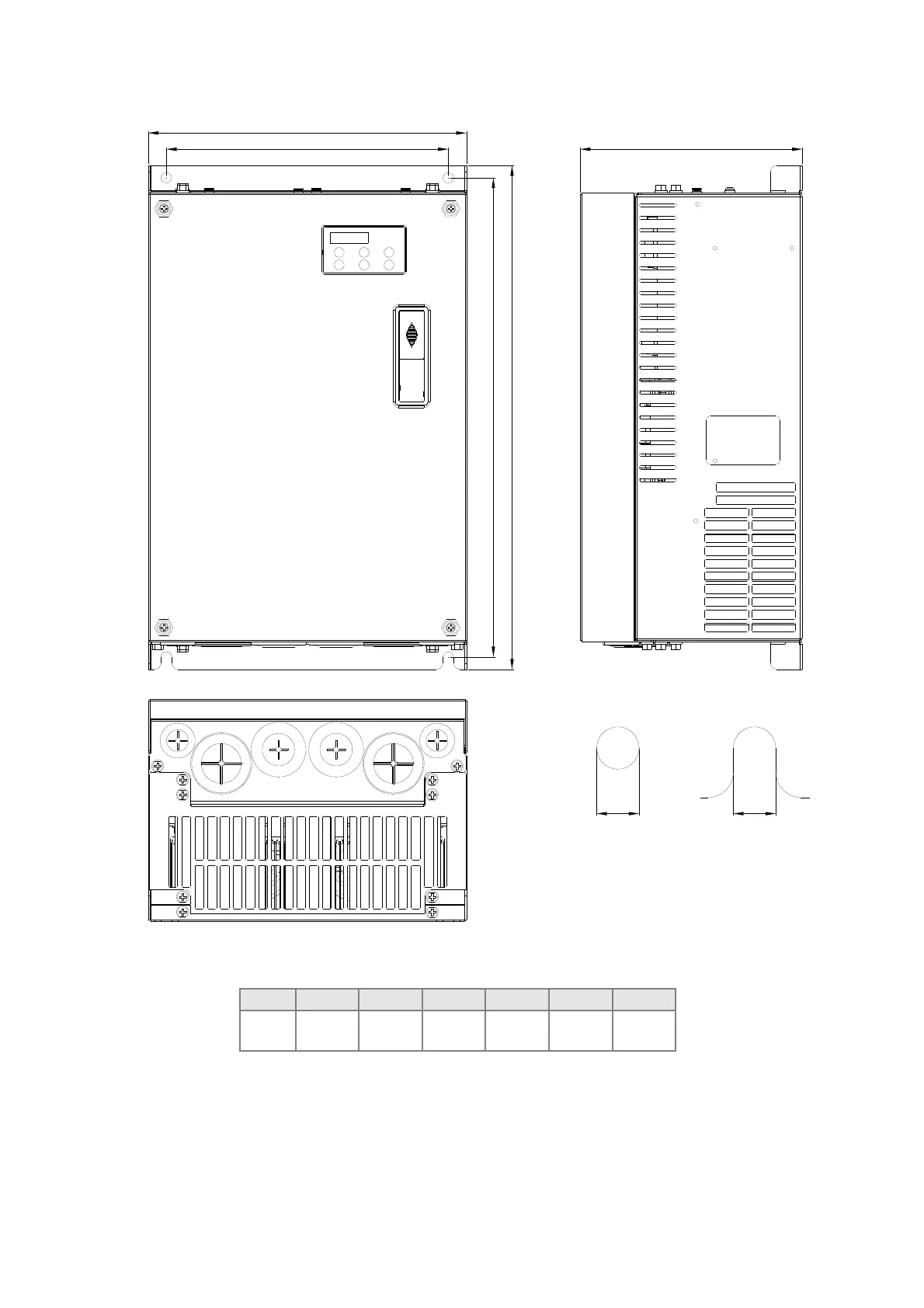

Frame D of VJ-C:
VFD300VL43C-J, VFD370VL43C-J
DW1
W
H1
H
S1S1
Frame W W1 H H1 D S1
D
255.0
[10.04]
226.0
[8.90]
403.8
[15.90]
384.0
[15.12]
178.0
[7.01]
8.5
[0.33]
Unit: mm [inch]
