Chapter 1. Description of Hybrid Servo Drives | VFD-VJ
1-19

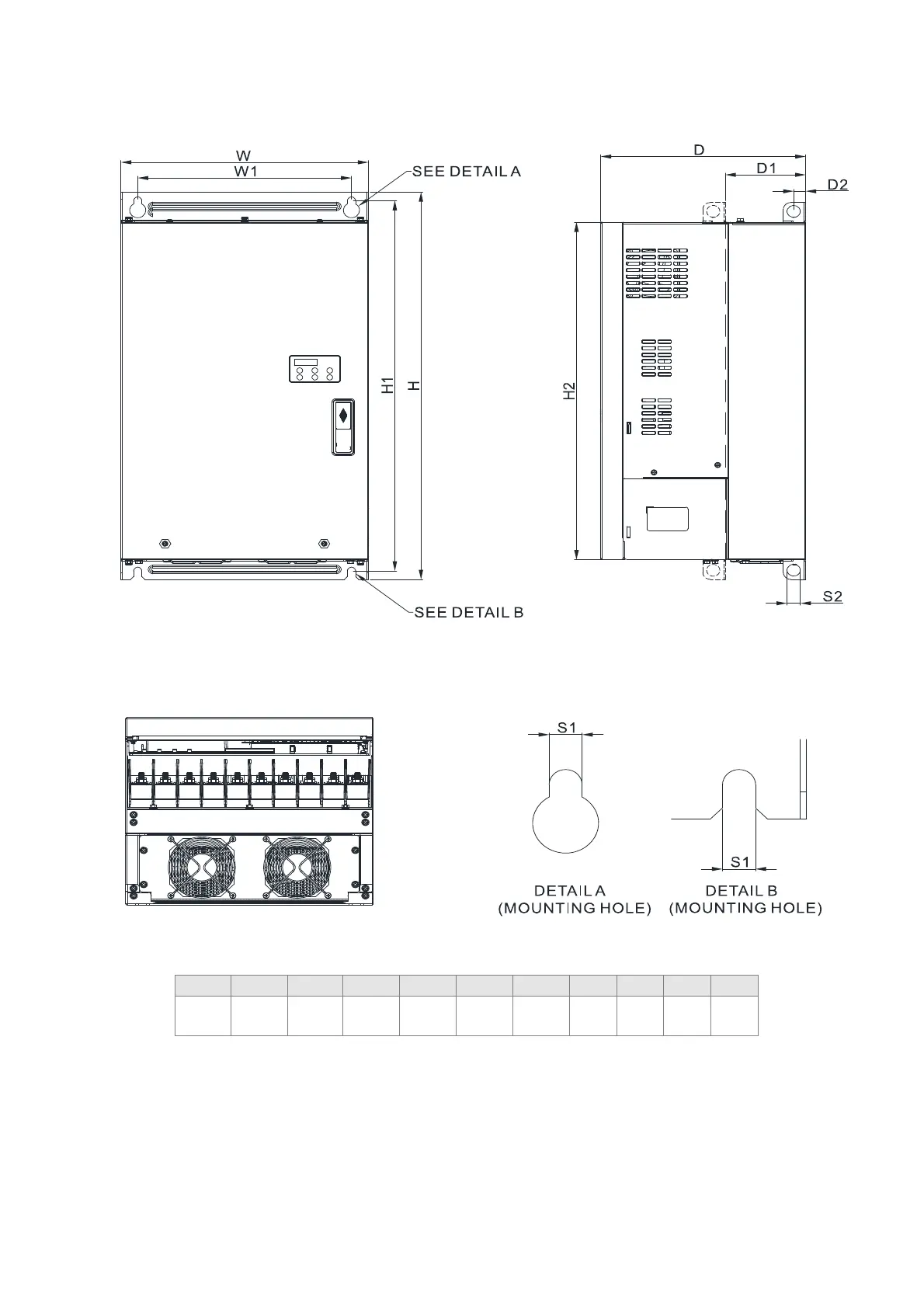

Frame E4 of VJ-C:
VFD300VL23C-J, VFD370VL23C-J,
VFD450VL43C-J, VFD550VL43C-J, VFD750VL43C-J
Frame W W1 H H1 H2 D D1* D2 S1 S2
E4
330.0
[12.99]
285.0
[11.22]
565.0
[22.24]
540.0
[20.67]
492.0
[19.37]
273.4
[10.76]
107.2
[4.22]
16.0
[0.63]
11.0
[0.43]
18.0
[0.71]
Unit: mm [inch]
