Chapter 10 Digital KeypadCP2000
10-11

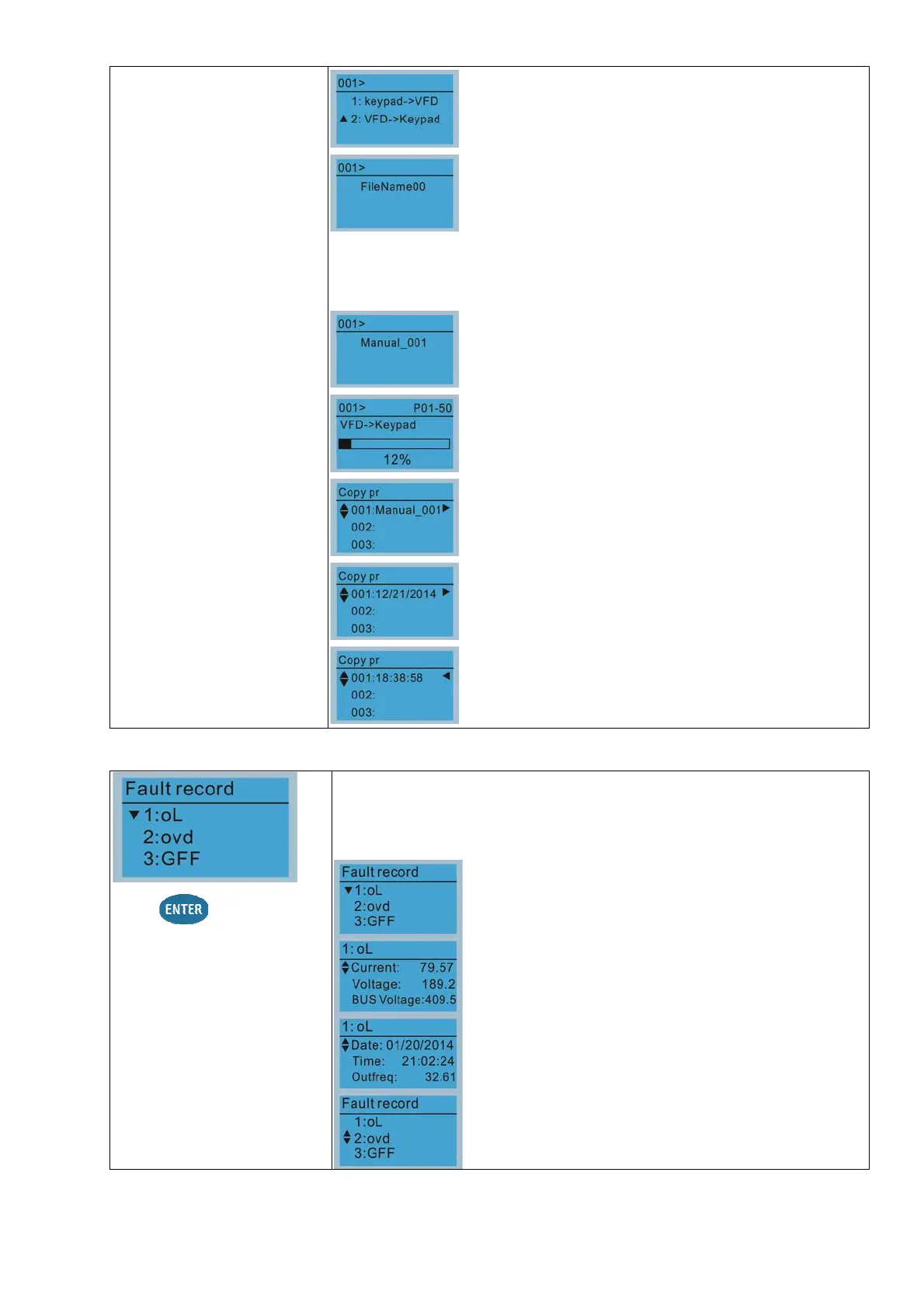

Press
ENTER key to go to “Save in the motor drive”
screen.
Use Up / Down key to s
elect a symbol.
Use Left / Right key to move the cursor to select a file
name.
String & Symbol Table:
！＂＃＄％＆＇（）＊＋，－．／０１２３４５６７８９：；＜＝＞？＠ＡＢＣＤＥＦ
ＧＨＩＪＫＬＭＮＯＰＱＲＳＴＵＶＷＸＹＺ［＼］＾＿｀ａｂｃｄｆｇｈｉｊｋｌｍ
ｎｏｐｑｒｓｔｕｖｗｘｙｚ｛｜｝～
Once the file name is
confirmed, press ENTER key.
T
o begin copying parameters until it is done.
Whe
n copying parameters is completed, keypad will
automatically be back to this screen.
Press Ri
ght key to see the date of copying parameters.
Press
Right key to see the time of copying parameters.
6. Fault Record
Press
to select.
Able to store 6 error codes (Keypad V1.02 and previous versions)
Able to store 30 error codes (Keypad V1.20 and later version)
The most recent error record is shown as the first record. Select an error
record to see its details such as date, time, frequency, current, voltage,
DCBUS voltage)
Press
Up / Down key to select an error record.
fter selecting an error code, press ENTER to see
that error record’s detail
Press Up / Down key to see an error record’s detail
s
uch as date, time, frequency, current, voltage,
DC bus voltage.
Press
Up / Down key to select an error record.
fter selecting an error code, press ENTER to see
that error record’s detail
