Chapter 2 Wiring | VFD-VJ
2-22

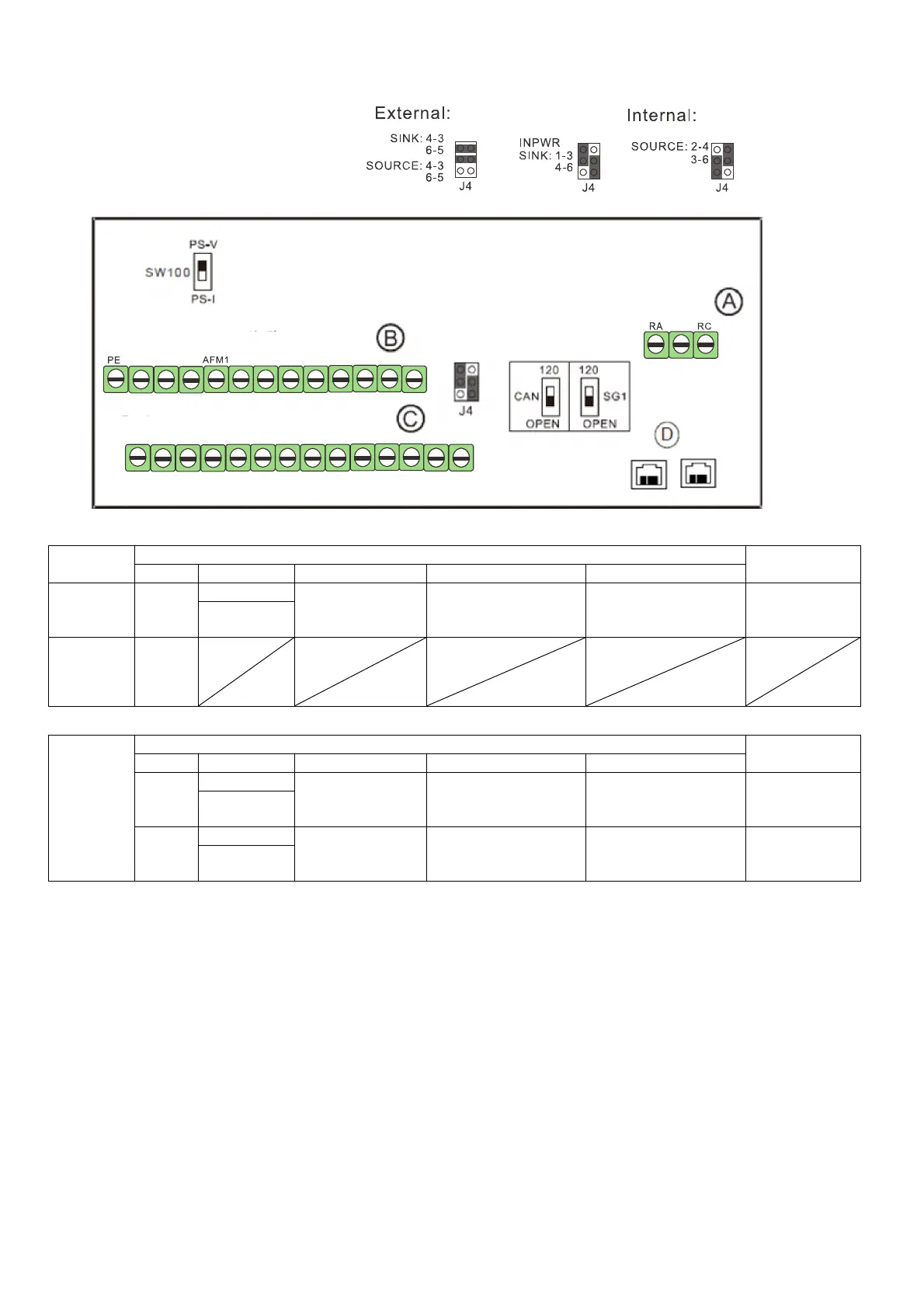

Pluggable Wiring Terminal Blocks:
ACM
T-
T+
AFM2
PS +24V+10V PI
QI
AUI
ACM
MO1
MO2 MCM
SON EMG
RES MI3 MI4
MI5
COM
SG+
SG-
SGND
PE
RB
Item
Wire Gauge
Torque
(±10%)
Group Conductor Stripping length Mini. Wire Gauge Max. Wire Gauge
Control
Terminal
A
Solid
6mm 0.2mm
2
[24 AWG] 1.5mm
2
[16 AWG]
5kg-cm
[4.4 lb-in.]
[0.5 Nm]]
Stranded
RJ-45 D
Item
Wire Gauge
Torque
(±10%)
Group Conductor Stripping length Mini. Wire Gauge Max. Wire Gauge
B
Solid
7-8mm 0.2mm
2
[24 AWG] 2.1mm
2
[14 AWG]
2kg-cm
[1.7 lb-in.]
[0.2 Nm]]
Stranded
C
Solid
7-8mm 0.2mm
2
[24 AWG] 2.1mm
2
[14 AWG]
2kg-cm
[1.7 lb-in.]
[0.2 Nm]]
Stranded
Wiring precautions:
For group A, B, C:
1. For group A: Tighten the wiring with a 3.5mm (wide) x 0.6mm (thick) slotted screwdriver
2. For group B, C . Tighten the wiring with a 2.5mm (wide) x 0.4mm (thick) slotted screwdriver
3. When wiring bare wires, make sure they are perfectly arranged to go through the wiring
holes.
NOTE:
1. As we modify the fixed terminal block to the pluggable terminal blocks, the positions of the terminals are also
changed. Please verify the differences between the original and new terminal blocks before wiring.
2. The RA, RB and RC terminals are still on a fixed terminal block as before.
