Delta VFD900CP43A-00 User Manual

Chapter 6 Control TerminalsCP2000
6-11

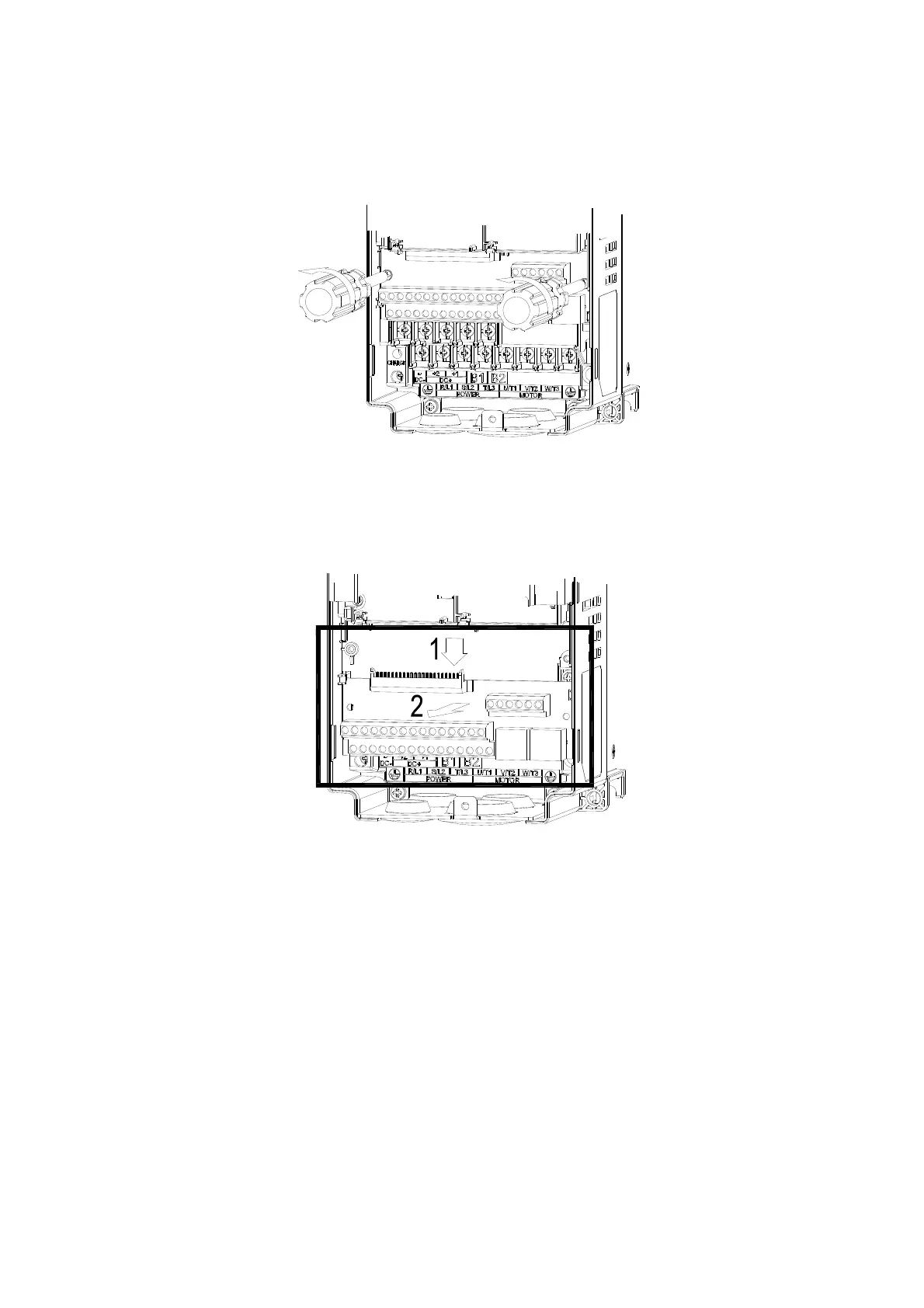

6-3 Remove the Terminal Block
1. Loosen the screws by screwdriver. (As shown in figure below).
Screw torque: 8–10 kg-cm / [6.9–8.7 lb-in] / [0.78–0.98 Nm]
Figure 6-19
2. Remove the control board by pulling it out for a distance 6–8 cm (as 1 in the figure) then lift the control
board upward (as 2 in the figure).
Figure 6-20

Delta VFD900CP43A-00 Specifications

General

Protection Level	IP20
Enclosure Rating	IP20
Input Voltage	3-phase, 380-480V AC
Control Method	Sensorless Vector Control (SVC), V/F Control
Protection Features	Overvoltage, Undervoltage, Overcurrent, Overload, Overtemperature, Short Circuit
Cooling Method	Forced air cooling
Operating Temperature	-10°C to +50°C
Storage Temperature	-20°C to +60°C
Humidity	90% RH, non-condensing
Altitude	Below 1000m
Communication Interface	RS-485
