Chapter 12 Description of Parameter SettingsCP2000
12.1-01-12

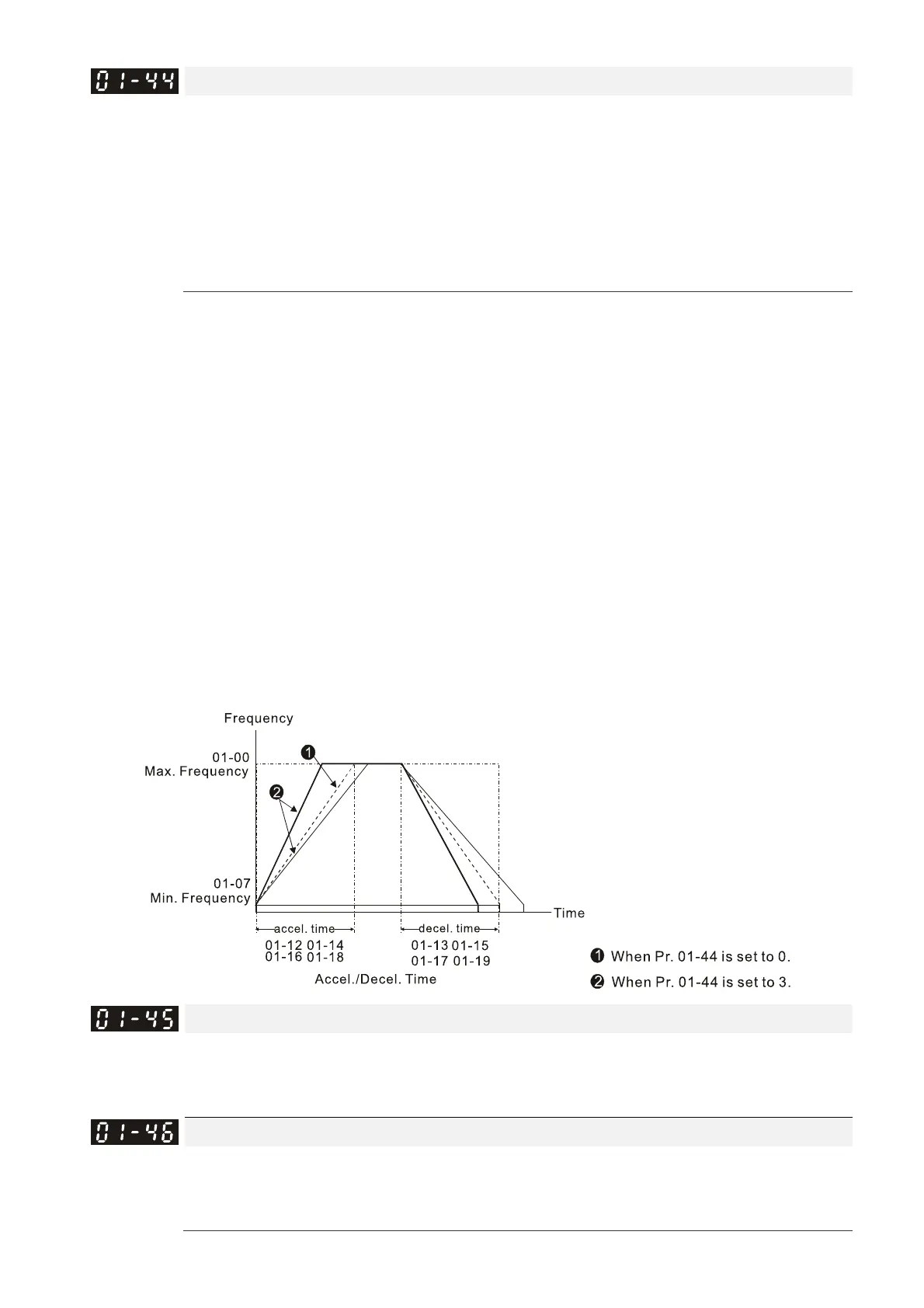

Auto-acceleration and Auto-deceleration Setting
Default: 0
Settings 0: Linear acceleration and linear deceleration
1: Auto-acceleration and linear deceleration
2: Linear acceleration and auto-deceleration
3: Auto-acceleration and auto-deceleration
4: Stall prevention by auto-acceleration and auto-deceleration (limited by
Pr.01-12 to Pr.01-21)
0 (linear acceleration and linear deceleration): the drive accelerates and decelerates according to
the setting for Pr.01-12–01-19.
1 or 2 (auto/linear acceleration and auto/linear deceleration): the drive reduces the mechanical
vibration and prevents the complicated auto-tuning processes. It does not stall during
acceleration and has no need for a brake resistor. It can also improve operation efficiency and
save energy.
3 (auto-acceleration and deceleration-decelerate by actual load): the drive auto-detects the load
torque and accelerates from the fastest acceleration time and smoothest start current to the
setting frequency. When decelerating, the drive auto-detects the load re-generation and stops the
motor smoothly with the fastest deceleration time.
4 (stall prevention by auto-acceleration and deceleration –refer to acceleration and deceleration
time): if the acceleration and deceleration is within a reasonable range, the drive accelerates and
decelerates according to Pr.01-12–01-19. If the acceleration and deceleration time is too short,
the actual acceleration and deceleration time are greater than the acceleration and deceleration
time settings.
Time Unit for Acceleration / Deceleration and S Curve
Default: 0
Settings 0: Unit 0.01 sec.
1: Unit 0.1 sec.
CANopen Quick Stop Time
Default: 1.00
Settings
Pr.01-45=0: 0.00
–600.00 sec.
Pr.01-45=1: 0.0
–6000.0 sec.
