DeltaLab DGFX1 - Rear Panel Connections

Guitar Multi
-
Effects Pedal
www.deltalabeffects.com
6
NOTES:
• Before connecting to the AC IN jacks, fasten the cord of the AC adapter around the hook
as shown in the diagram. This will prevent the plug from being disconnected if the cord is
accidentally pulled.
• To prevent malfunction and/or damage to speakers or other devices, always turn down the
volume of the DGFX1 and turn all devices off before connecting cables.
• If you turn on the DGFX1 while the amplifier is already powered up, damage to the speaker
may result. Always turn amplifiers off before connecting cables.

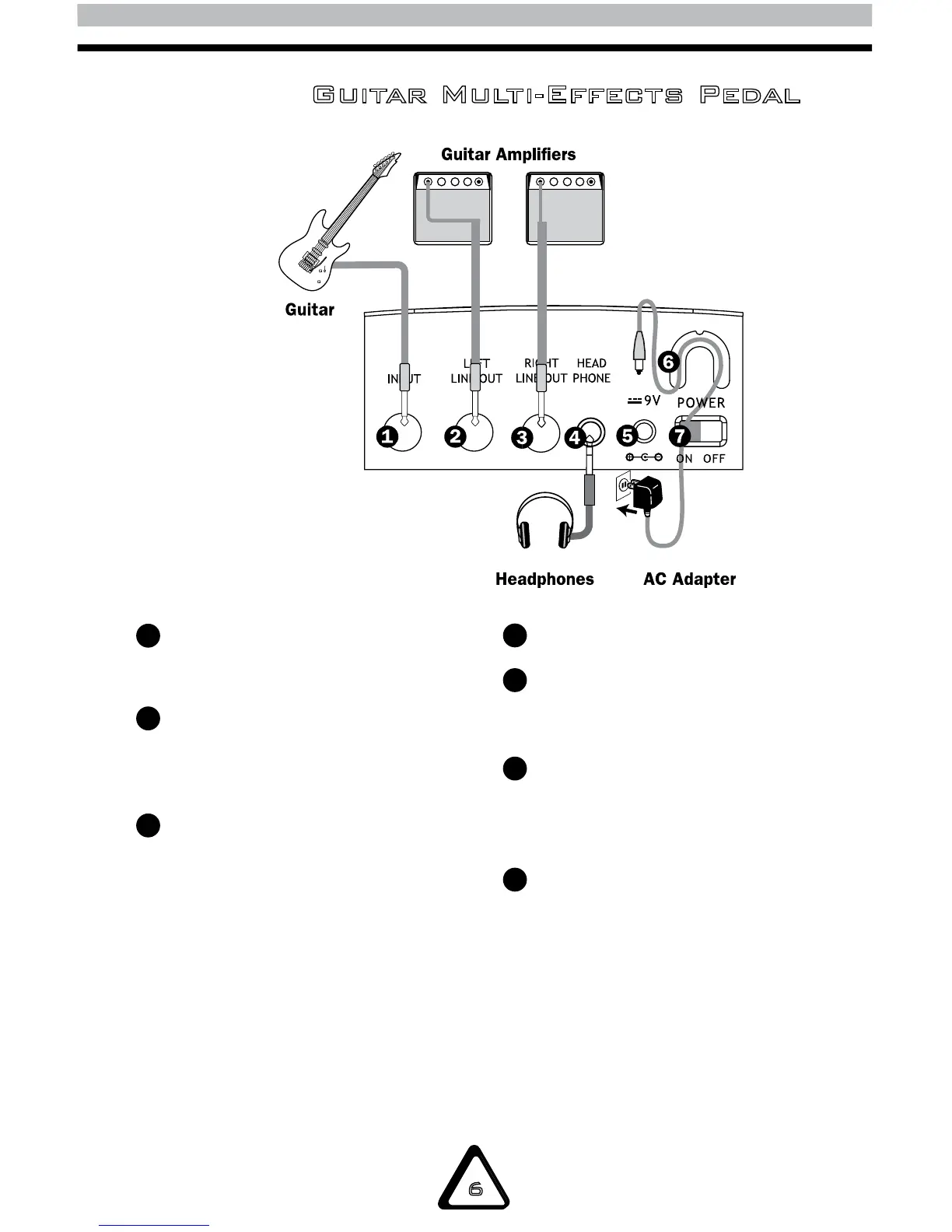

RearPanel/Connections
INPUTJack
Connect your guitar to this jack.
OUTPUTJack1
Connect your guitar amplifier
to this jack.
OUTPUTJack2
Connect a second guitar
amplifier to this jack for
stereo effects.
1
2
3
HEADPHONEJack
DCINJack
Connect the AC adapter
(9V, 300mA) to this jack.
CORDHook
Hook the AC adapter cord
here to prevent the adapter
from disconnecting.
POWERSwitch
Turns power on and off.
4
5
6
7
