14
After lubricating the machine,
wipe off any excessive oil.
• Oil hole in the Wire Feed
Slide (1).
• Oil hole in the Wire Cutter
Holder (2).
• Oil hole in the Swivel
Operating Cam Roll Stud (3).
• Moving parts in this area
(4). It is recommended that a
toothpick tipped with oil
moistened cotton dressing be
used to lubricate these parts.
(Apply just enough oil to keep
these parts moist).
• Oil slot in the Door (5) for
the Swivel Operating Lever.
• Opening in Swivel Bushing (6).
• Oil tube in machine frame (7) for lubricating Main Shaft Connecting Link.
• Oil cup in frame (8) for lubricating main Drive Shaft.
• Oil cup in frame (9) for lubricating main Drive Shaft.
• Oil hole in Clincher Driving Bar Roll Stud (10).

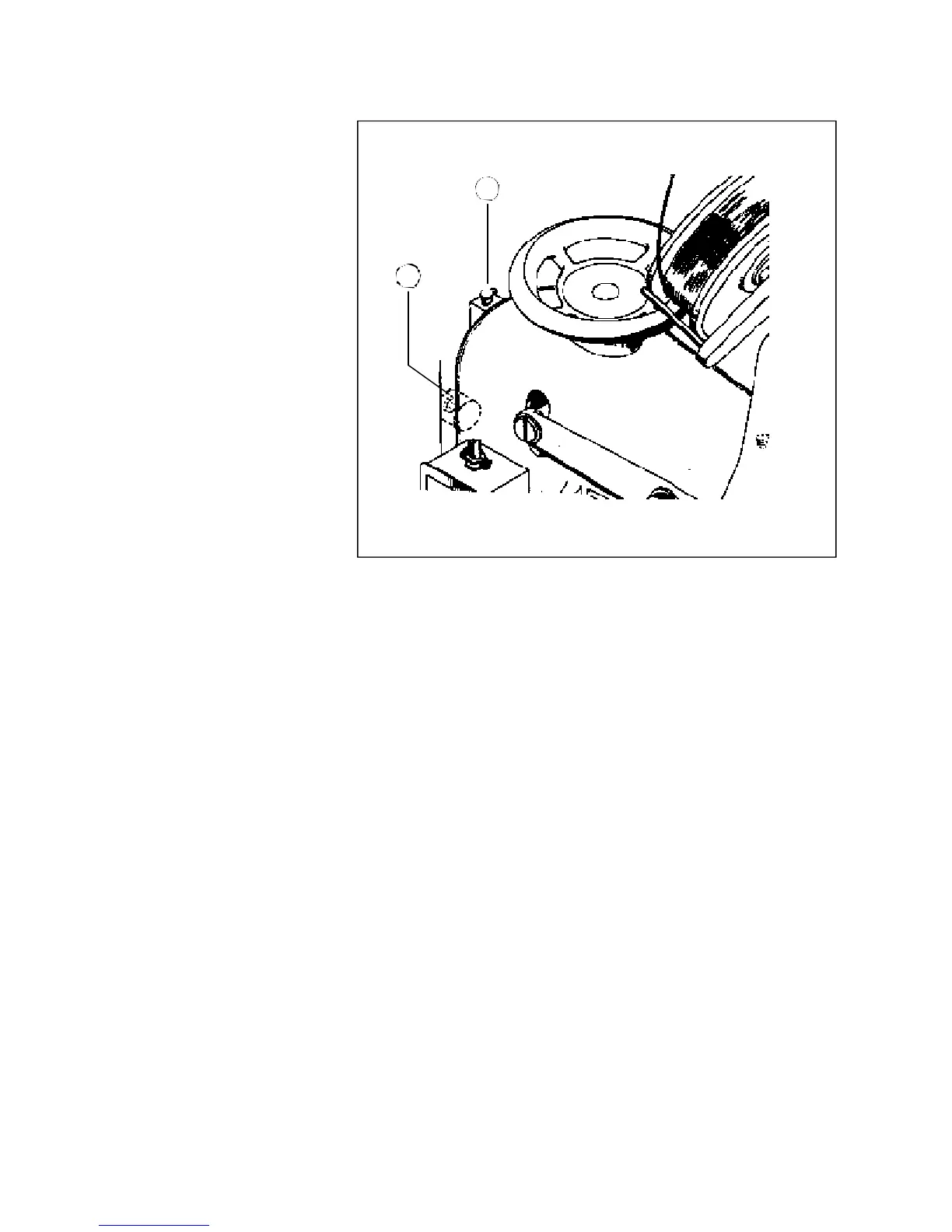

Figure 10 - Lubrication Points
9
10
