Use a S.A.E. Number 10 oil for lubricating the Number 7 Stitcher. Machines that are in constant
operation should be lubricated daily. Machines that are operated periodically should be lubricated just
prior to running a job.
Usually only a drop of oil is required at each point of lubrication in the Stitcher Head. Care must
be taken that those parts of the machine that contact the work being stitched are free from oil.
Lubricate regularly instead of excessively. Excessive oiling will result in work becoming oil-spotted.

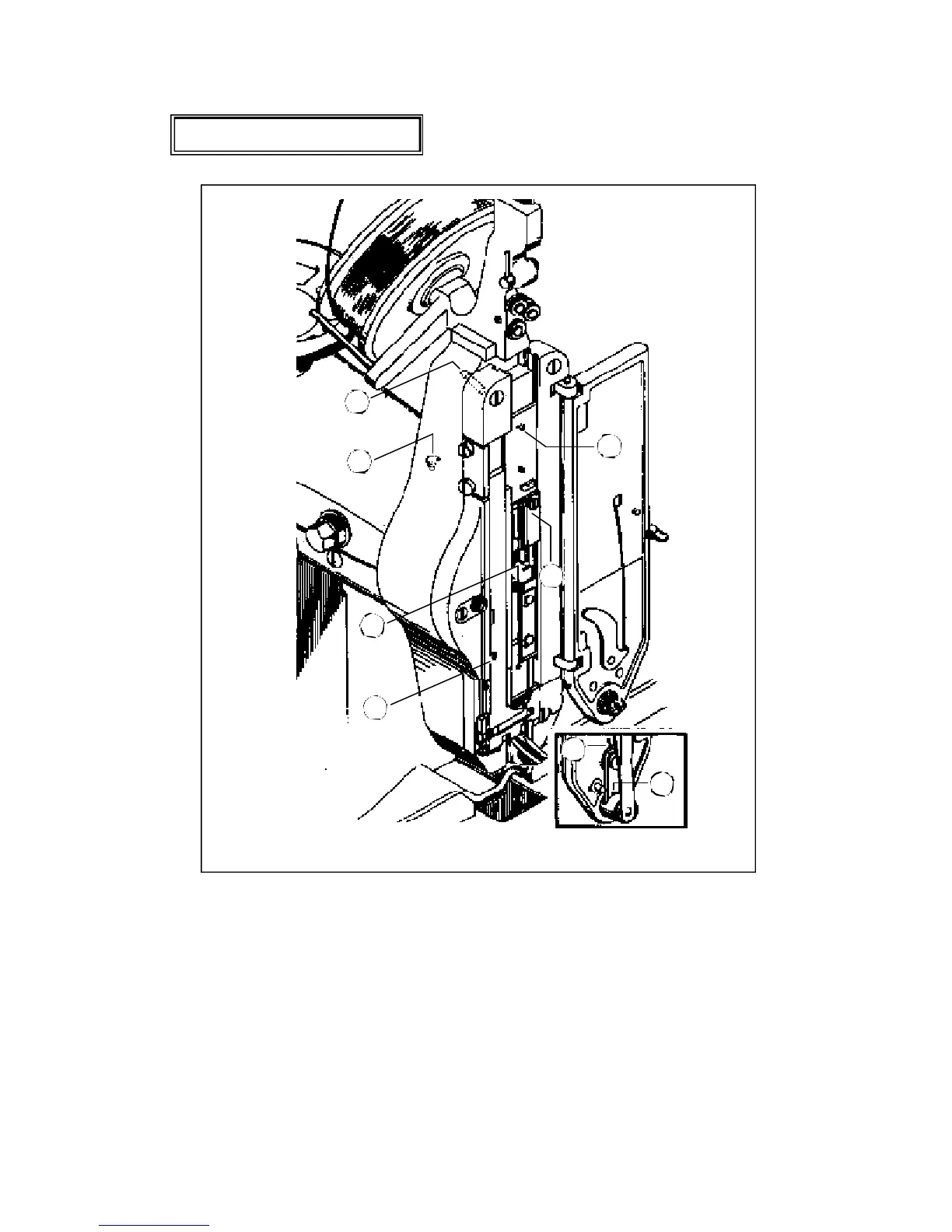

Figure 10 - Lubrication Points
Lubrication (Figure 10)
6
5
3
2
4
1
8
7
