7
Figure 4 - Recommended Wire Sizes
then turn the handwheel to the left, raising
the Gauge just far enough to permit work
to be withdrawn from between the Gauge
and the Gauge shelf. After withdrawing
the sample work, turn the handwheel to
the right until the Gauge has returned to
the point at which it clamped the work.

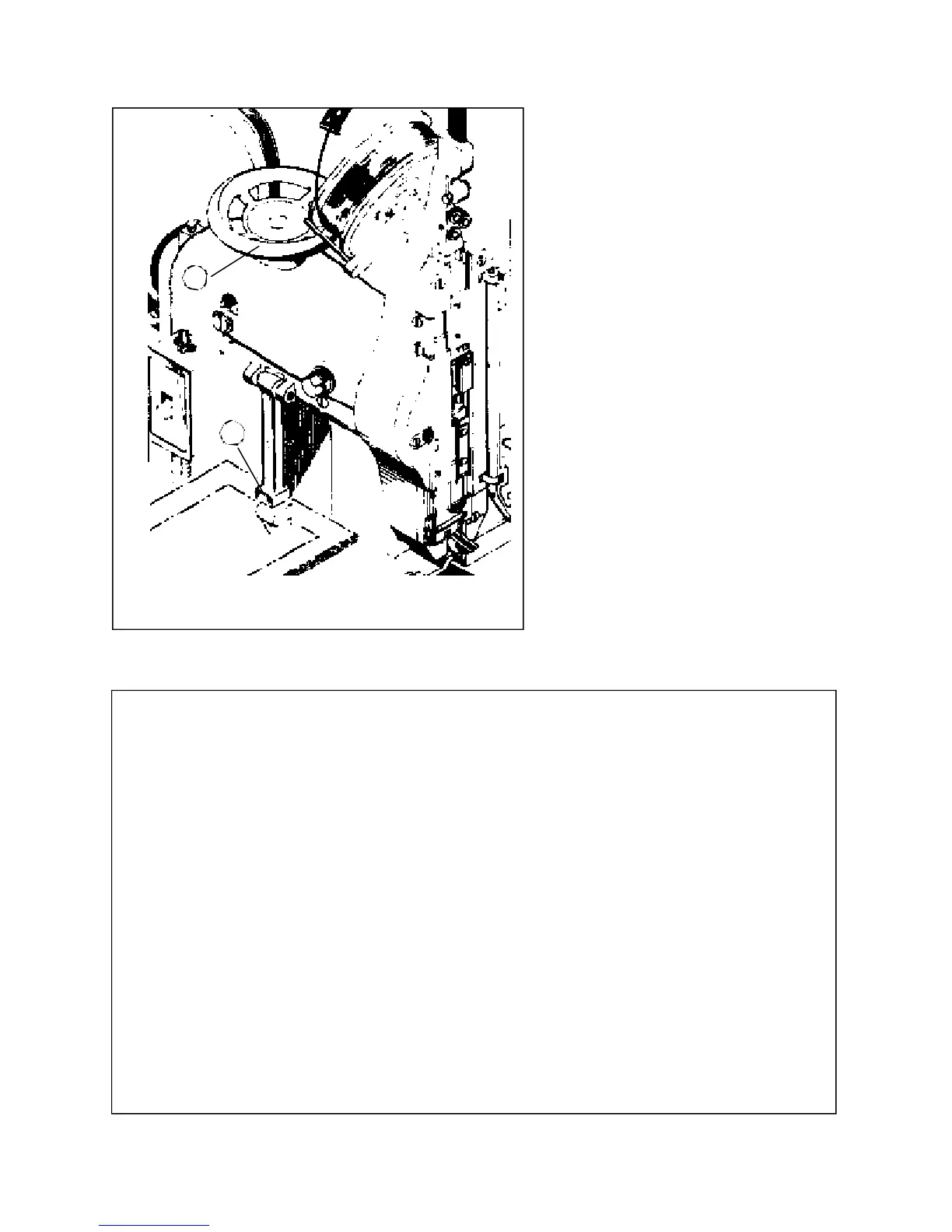

Figure 3 - Work Thickness Adjustment
1
2
Wire Gauge Type of Work 20# Stock
Install 7089E Driver / 7257B Clincher Points for:
28 Round . . . . . . . . . . . . . . Light Flat or Saddle . . . . . . . . . . . . . . 2 -10 Sheets
27 Round . . . . . . . . . . . . . . Light Flat or Saddle . . . . . . . . . . . . . . 2 -10 Sheets
26 Round . . . . . . . . . . . . . . Light Flat or Saddle . . . . . . . . . . . . . . 2 -10 Sheets
25 Round . . . . . . . . . . . . . Medium Flat or Saddle . . . . . . . . . . . . 10-50 Sheets
24 Round . . . . . . . . . . . . . Medium Flat or Saddle . . . . . . . . . . . . 10-50 Sheets
Install 7089F Driver / 7024B Clincher Points for:
20 x 25 Flat . . . . . . . . . . . . . Heavy Flat Only . . . . . . . . . . . . Over 50 Sheets
21 x 25 Flat . . . . . . . . . . . . . Heavy Flat Only. . . . . . . . . . . . . Over 50 Sheets
20 x 24 Flat . . . . . . . . . . . . . Heavy Flat Only. . . . . . . . . . . . . Over 50 Sheets
* Note: 21x25 flat wire can be used for Heavy Saddle applications but it is not
recommended. If 19x21-1/2 flat wire is required, contact your Graphic Arts
Representative for the recommended parts.
