DeLuxe Stitcher 7AW - Wire Straightening

9
In order to insure continuous
operation of the Stitcher, it is
important that the wire when
being fed into the Swivel,
enters in as close to a
straight-vertical line as
possible. To check this
condition and make the
necessary adjustments,
proceed as follows.
Disengage the Swivel Spring
(1) from the Swivel (2) and
withdraw the Swivel from its
Bushing (3). Turn the
machine over manually and
observe by looking directly
into the Swivel Bushing (4)
that wire is being fed in a
vertical line, as shown in
insert Figure 6. If the wire is
feeding to the left or to the
right, turn the Lower Wire
Straightener Eccentric
Handle (5) clockwise or
counter-clockwise as
required, until wire feeds in a vertical line. If wire is feeding in a straight line with respect to
the left and the right but tends to curl forward or backward, turn the Upper Wire Straightener
Eccentric Handle (6) until this condition is remedied. After the necessary adjustments have
been made, replace the Swivel in its Bushing and attach the Swivel Spring.
Wire Straightening (Figure 6)
Do not slam door shut, or attempt to force door shut while
cycling machine or with machine positioned at bottom of stroke.
Failure to comply with this may result in damage to the stitcher head.
rCAUTION
!
Always disconnect the power supply before
making any adjustments or servicing the stitcher.
rWARNING
!

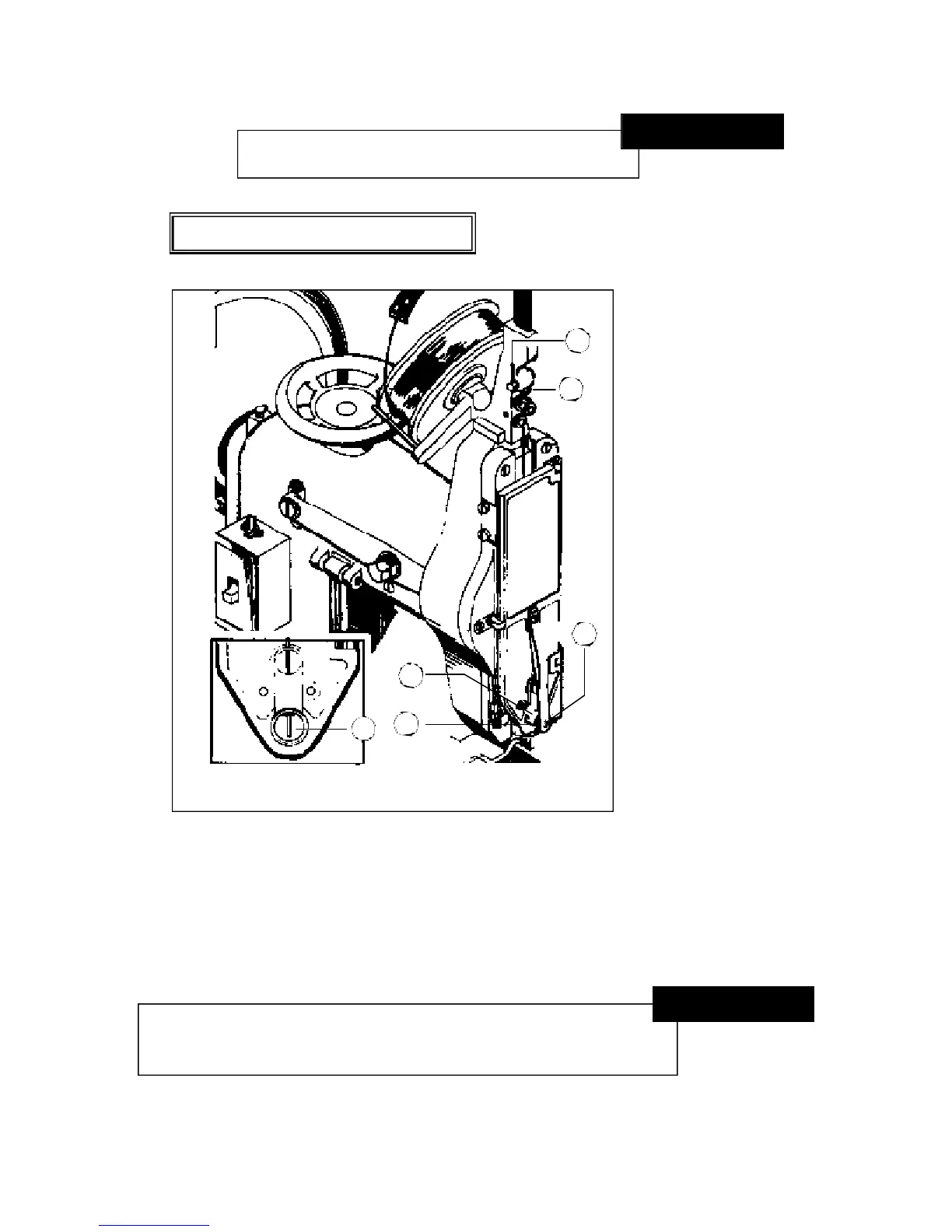

Figure 6 - Wire Straightening
4
2
3
1
5
6
