Troubleshooting (Formed Staples)
The quality and quantity of work that can be produced with the Number 7 Stitcher is dependent upon
the operator making all adjustments as accurately as possible, and carefully maintaining the machine.
The cause of staple imperfections usually can be traced to inaccurate settings and adjustments or
normal wear of moving parts. In the event of trouble of this nature occurring, the operator can refer
to the following Trouble Shooting Chart and quickly locate and remedy the causes of the trouble
thereby reducing the time the Stitcher is inoperative.

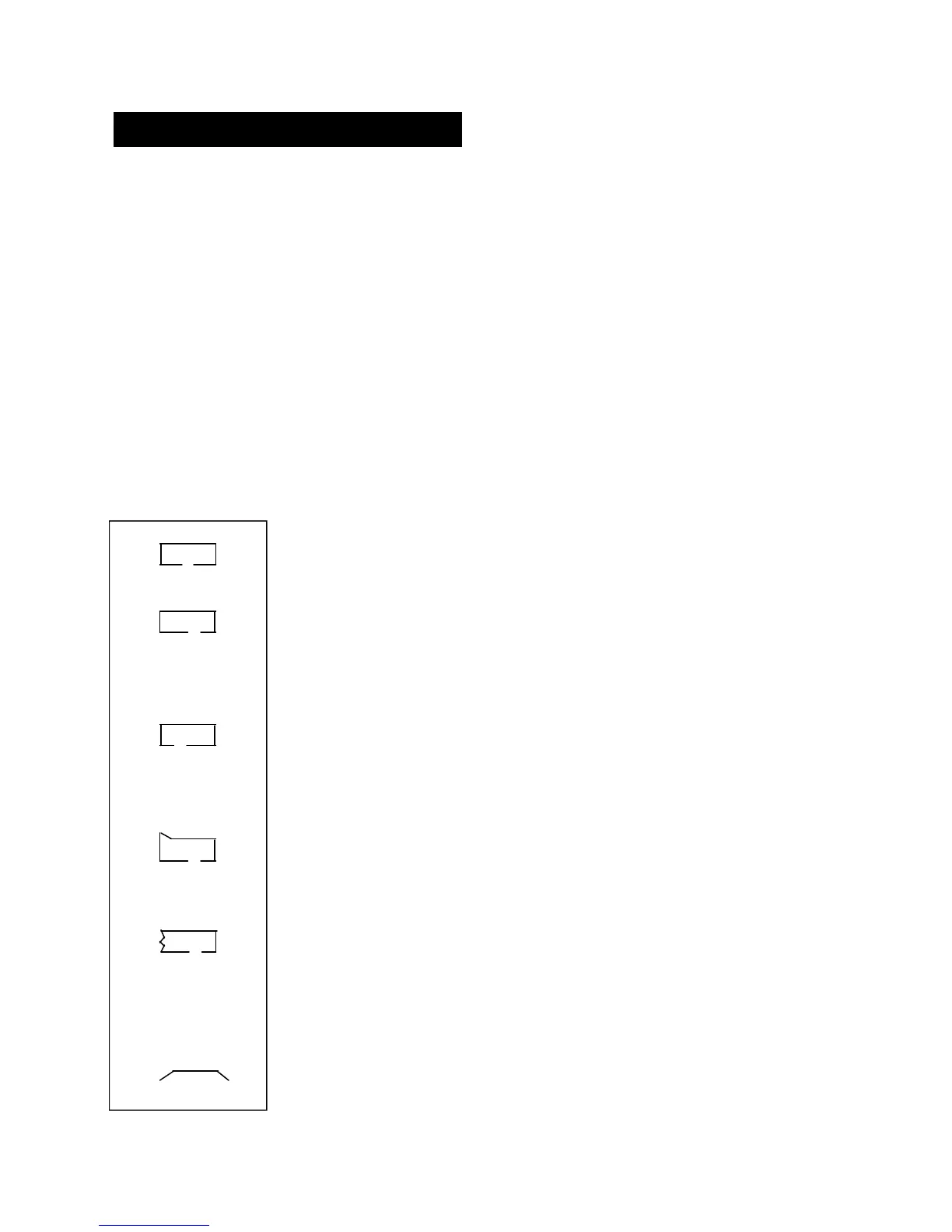

The first column of the chart illustrates the imperfect stitch while the second column describes the
imperfections or troubles. The third column lists the probable cause or causes for the given trouble,
while the fourth column lists the remedy or remedies for the troubles and also refers to the paragraph
in this book in which will be found detailed information for making the necessary adjustments. If
stitching is defective, the operator can compare the staple produced with the stitches illustrated in the
chart and by carefully reading the information given for each type of imperfect stitch, remedy the
cause of the imperfection.
PROBLEM: Perfect Staple
SOLUTION:
PROBLEM: Right Leg Short
SOLUTION: The Cutter is not properly adjusted in relation to the Swivel
Shorten the left leg to make it the same length as the right leg (refer to page 4)
then, adjust the length of both legs to the desired length (refer to page 5).
PROBLEM: Left Leg Short
SOLUTION: The Grip is clogged or worn or the left leg feed is not adjusted
properly. Clean the Grip. Check for worn teeth and reverse or replace the Grip
(refer to page 7). Adjust the length of the left leg (refer to page 4).
PROBLEM: Staple Corner Buckled
SOLUTION: The Driver is chipped or broken. Check the Driver ends for signs
of damage and reverse or replace the Driver (refer to page 7).
PROBLEM: Either or both legs buckled
SOLUTION: The wrong wire size is being used for the job being stitched or the
Wire Cutters are dull. Check to make sure the correct wire size is being used
(refer to page 3). Check the Wire Cutters for wear and reverse or replace them
(refer to page 6).
PROBLEM: Partially Formed Staple
SOLUTION: The Driver Bar Latch is worn and needs to be replaced.
