DeLuxe Stitcher 7AW - Wire Grip Replacement

The Fixed Wire Grip (1) has two
saw-toothed gripping surfaces
permitting the reversing of the Grip
when one side shows signs of wear. To
remove and replace the Grip, proceed as
follows. Disengage the Moveable Wire
Grip Spring (2) from the Moveable Wire
Grip (3). Remove the Wire Grip
Retaining Screw (4) permitting the
removal of the Fixed Wire Grip (1) from
the Grip Holder (5). Reverse and replace
the Grip in the Grip Holder, replace and
tighten Grip Retaining Screw, and
re-engage the Spring with the Moveable
Grip.
16

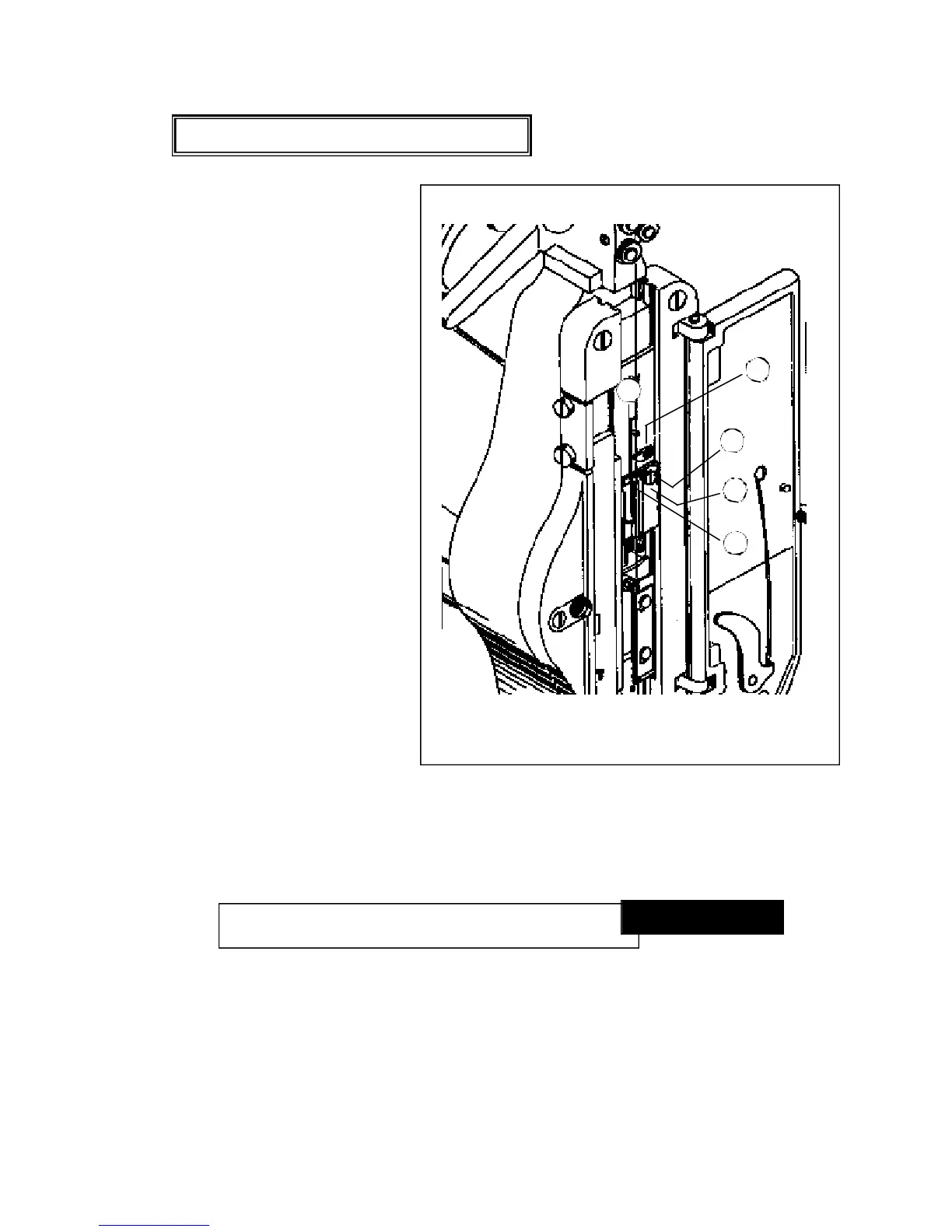

Figure 12 - Removing the Wire Grip
Removing the Wire Grip (Figure 12)
If the machine is operated on work thicker
than it is set to handle, damage will result.
rWARNING
!
1
3
4
2
5
