DEMA NITRO/NITRO EXPRESS REPLACEMENT GUIDE
INSTALLATION INSTRUCTIONS
I-993 Pg. 3 of 6
Rev. -- 10/01/09

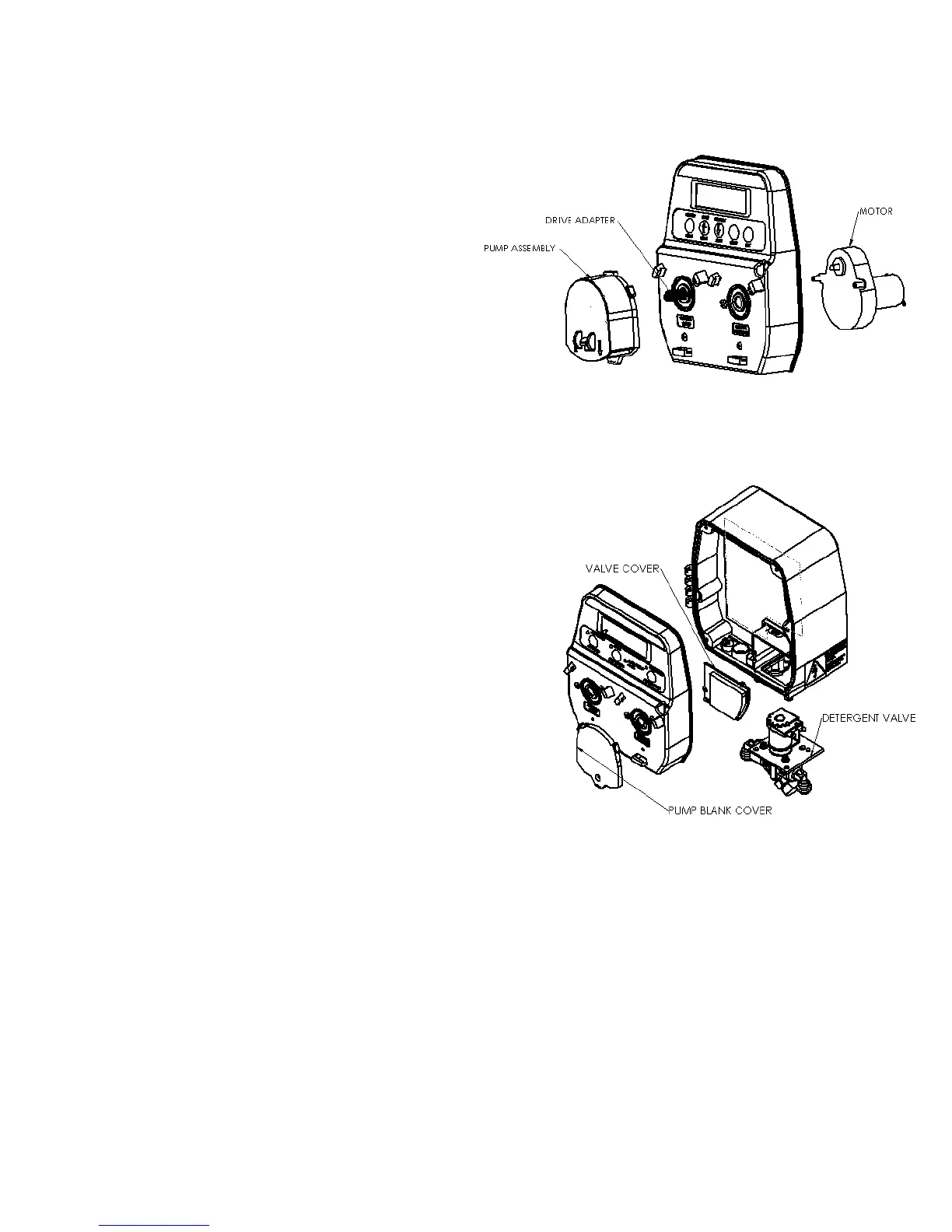

KIT 81.316.5 – RINSE PUMP/MOTOR REPLACEMENT KIT
KIT INCLUDES: RINSE MOTOR (81.311.1), DRIVE ADAPTER (81.220.1), RINSE PUMP ASSEMBLY
(81.226.1), #8 HILO SCREWS (44.116.2)
To replace the rinse motor and pump, disconnect all
power to the unit. Unplug the rinse motor leads from
the control board. Take out the two screws securing
the motor to the cover of the unit. Place the new drive
adapter on the motor and tighten the screws to secure
the motor to the cover. To replace the pump, take the
cover off the pump to expose the secure screw. Take
the screw out and take the rest of the pump off the
cover. Place the new pump on the cover and use the
secure screw to keep the pump head in place.
KIT 81.316.6 – DETERGENT VALVE CONVERSION AND REPLACEMENT KIT
KIT INCLUDES: DETERGENT VALVE ASSEMBLY (81.300.1), VALVE COVER (81.277.1), PUMP BLANK
COVER (81.278.1), WIRE ASSEMBLY FOR VALVE TO BOARD (81.196.7), #8 HILO SCREWS (44.116.2)
If converting from a detergent pump to a detergent valve, the
detergent motor, pump head and valve bracket cover from the
bottom of the unit will need to be removed. The valve assembly
will fit where the valve bracket cover on the unit was placed.
To replace the detergent valve, disconnect all power to the unit.
Remove the old valve from the unit by disconnecting the wires
and removing the screws from the bottom of the unit. It may be
necessary to remove the valve cover on the inside of the unit to
remove the wires. Place the new wire assembly on the new valve.
Replace the old valve with the new valve. Secure the valve with
the screws provided. Replace the valve cover with the screws to
secure it to the enclosure. Plug the wires into the proper place on
the control board. If converting from a pump to a valve, place the
pump blank cover on the front of the unit and secure with a screw.
KIT O-ADC SANITIZER PUMP REPLACEMENT
KIT
KIT INCLUDES: SANITIZER PUMP (81.290.1), PICK UP TUBE (81.312.1), SCREW AND ANCHOR KIT,
CHECK VALVE, TUBING, AND CABLE TIES.
Separate instruction sheet is included with this unit for proper hanging and operation. See I969.
KIT 81.316.7 – SANITIZER PUMP CONVERSION KIT
KIT INCLUDES: SANITIZER PUMP (81.290.1), PICK UP TUBE (81.312.1) , SCREW AND ANCHOR KIT,
CHECK VALVE, TUBING, CABLE TIES, #4 SCREWS, AND 3 PRODUCT CONTROL BOARD (81.283.2)
This kit is for converting from a 2 product system of detergent and rinse to a 3 product system of detergent, rinse, and
sanitizer. One thing that is required for this is a change of control boards from a 2 product control board to one that will
control 3 products. The picture on the next page shows a 3 product control board with the sanitizer spades and
potentiometer. These are necessary to power the sanitizer pump and control the amount of sanitizer dispensed.
