116

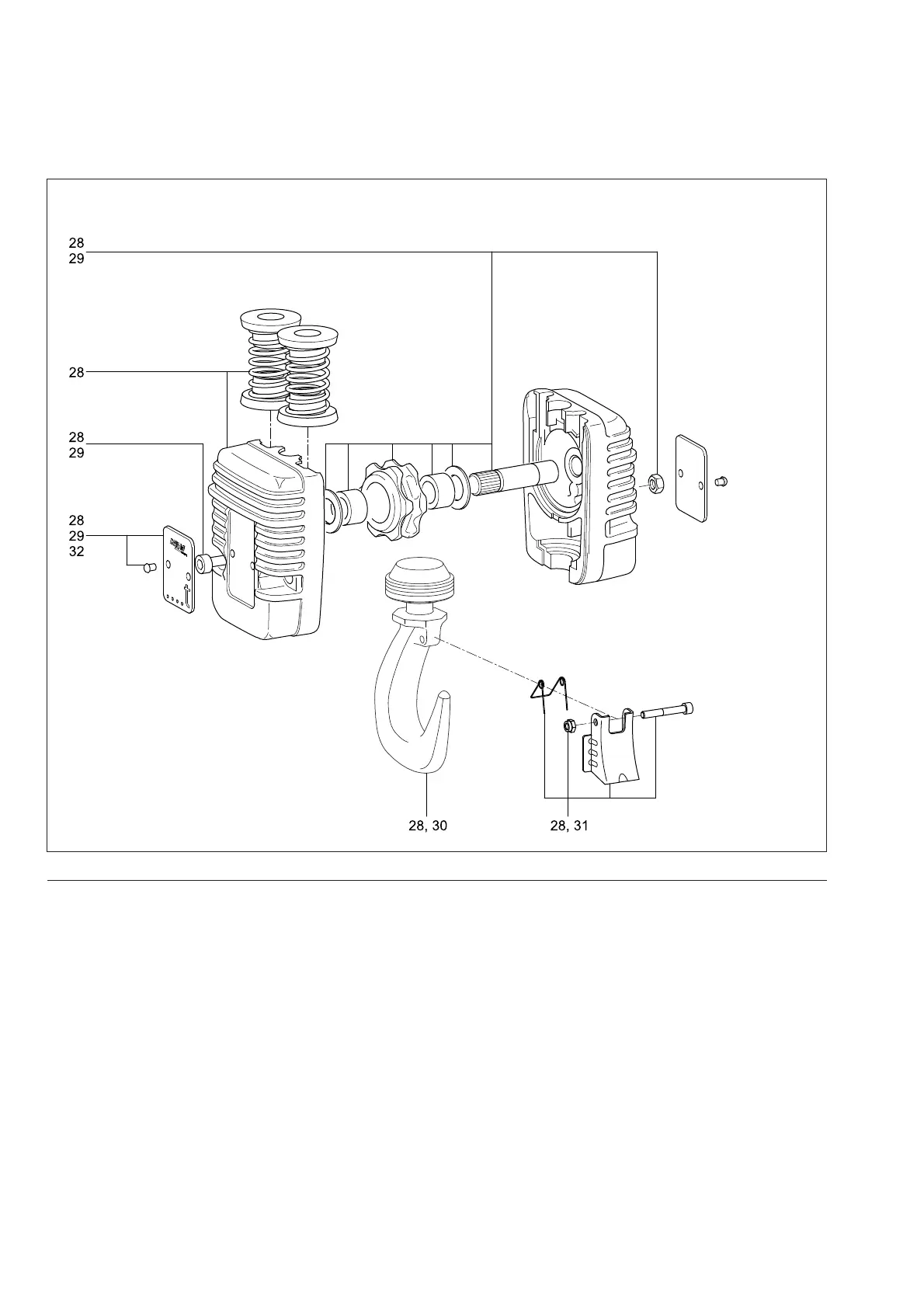

12.7 Bottom block with external switch-off springs (option)
42778044.eps
1) See chapter 11
Item Part no. Qty. Designation Material Standard
28 Bottom block with switch-off spring 1)
29 83785233 1 Bottom block half set DK10 6.8 Nm
30 83865033 1 Load hook DC16/25 DK10/20
31 83865633 1 Hook safety catch set S. 5 x5
32 83592833 1 Capacity plate DK10
21474019.tbl
