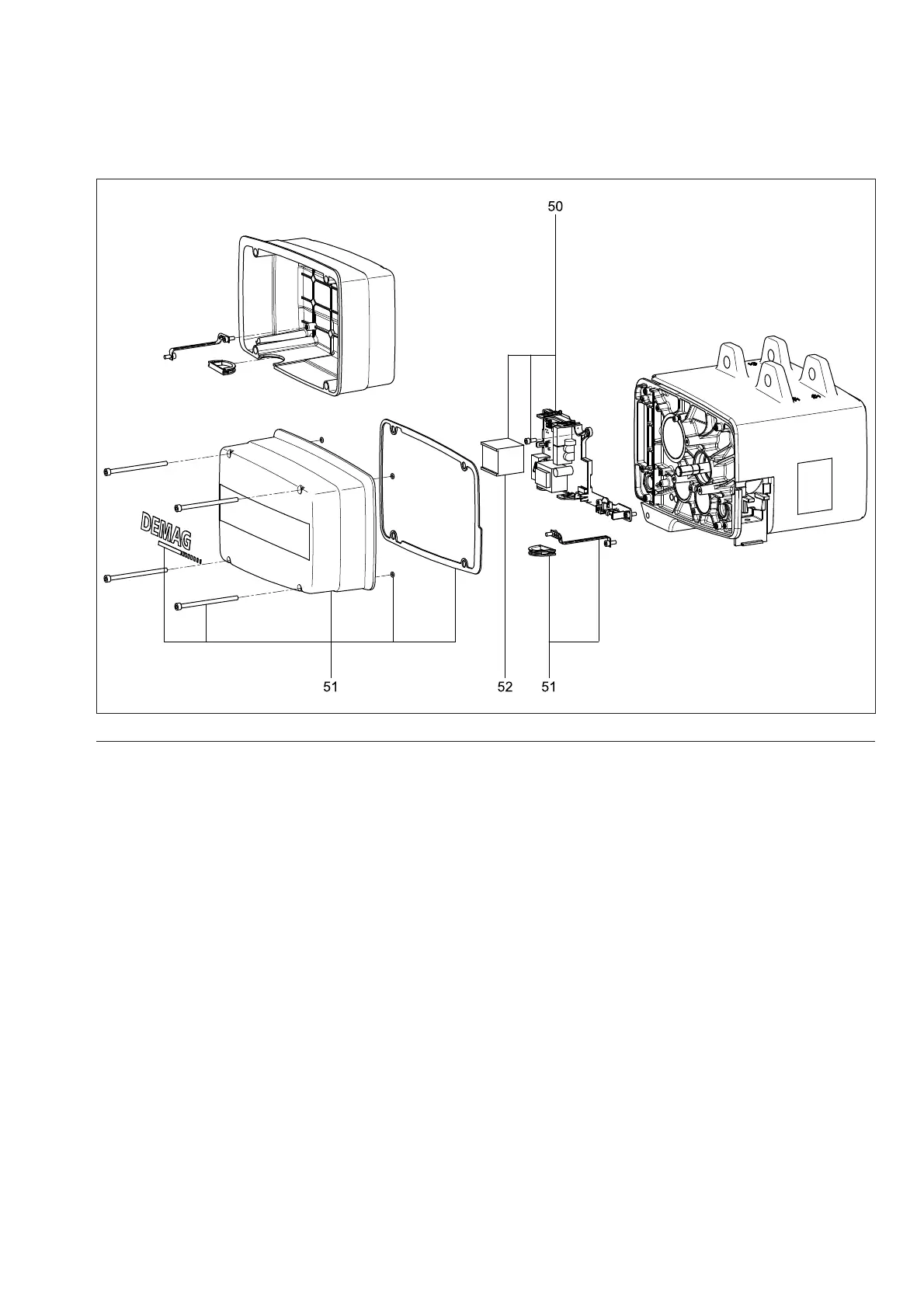

12.8 Electrical equipment cover
42763945.eps
Item Part no. Qty. Designation Material Standard
DC-Com 1 - 5
# 50 77222033 1 Control set DC1-5, 230V 220 V - 240 V, 50/60 Hz; 3 Nm
# 50 77202033 1 Control set DC1-5, 400V 380 V - 415 V, 50 Hz / 380 V - 400 V, 60 Hz; 3 Nm
# 50 77232033 1 Control set DC1-5, 575V 500 V - 525 V, 50 Hz / 575 V, 60 Hz; 3 Nm
# 50 77212033 1 Control set DC1-5, 460V 440 V - 480 V, 60 Hz; 3 Nm
DC-Com 10
# 50 77226033 1 Control set DC10, 230V 220 V - 240 V, 50/60 Hz; 3 Nm
# 50 77206133 1 Control set DC10, 400V 380 V - 415 V, 50 Hz / 380 V - 400 V, 60 Hz; 3 Nm
# 50 77236033 1 Control set DC10, 575V 500 V - 525 V, 50 Hz / 575 V, 60 Hz; 3 Nm
# 50 77216033 1 Control set DC10, 460V 440 V - 480 V, 60 Hz; 3 Nm
51 71792133 1 Electrical cover set DC 2 9.5 Nm
51 71892133 1 Electrical cover set DC 5 9.5 Nm
51 71592133 1 Electrical cover set DC10 9.5 Nm
52 71582533 1 Contactor set DC-Com 10
