Demco SENTRY DEFLECTOR - PARTS LIST; SENTRY (9523135) PARTS LIST

TB20048 Page 7

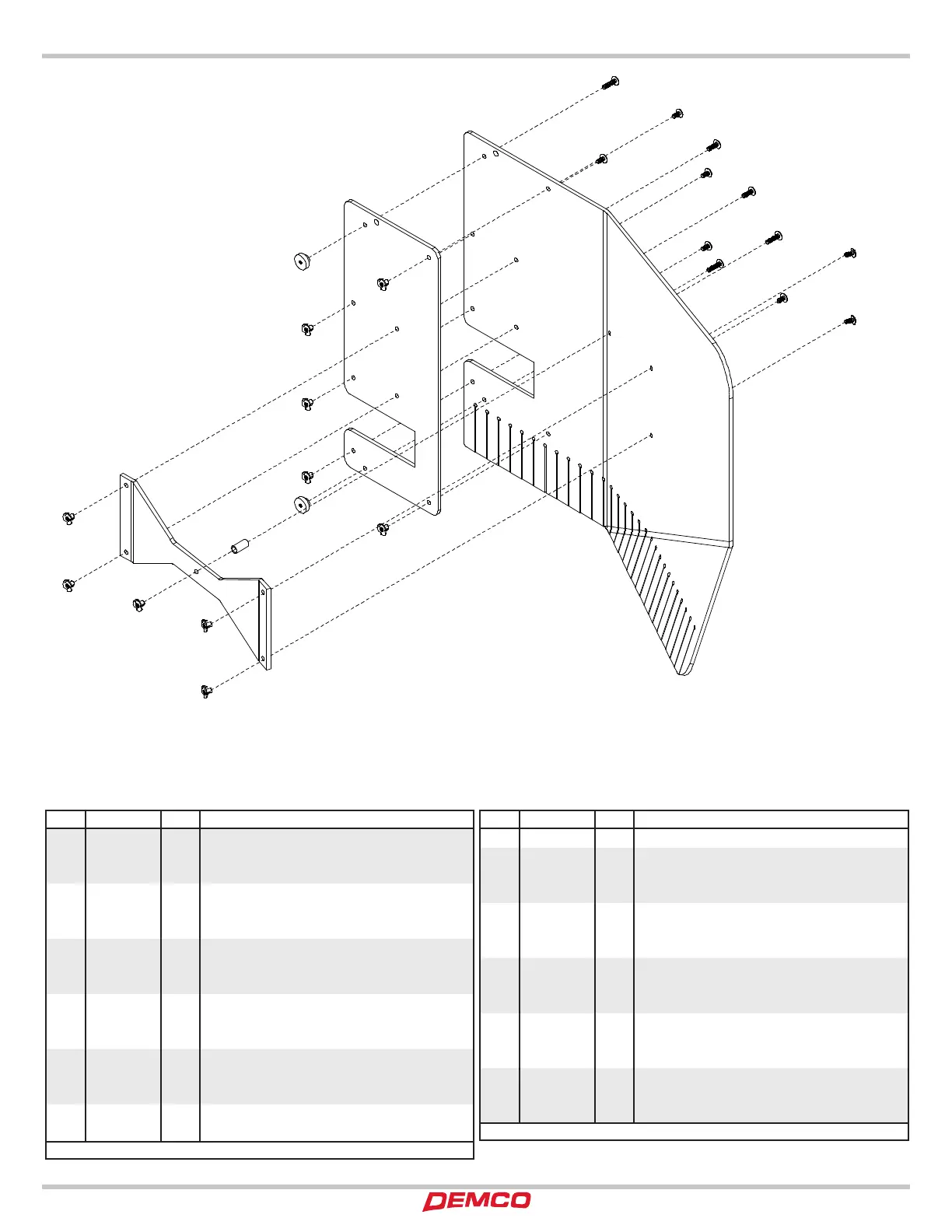

SENTRY (9523135) PARTS LIST
5
8
10
12
12
12
12
12
13
13
14
12
14
19
12
20
10
11
11
11
11
9
PARTS LIST
ITEM PART # QTY DESCRIPTION
1 10138-81 2 SENTRY MOUNTING CLEVIS
2 07164-95 2 BOLT, .50 X 3”
3 02178 2 NUT, .50 NYLON LOCK
4 03809 4 WEAR BUSHING, EXCALI-BAR & ALUMINATOR
*4 07699 4 WEAR BUSHING KWIK-TOW
5 10132 1 RIGHT WING DEFLECTOR
6 10131 1 LEFT WING DEFLECTOR
7 10133 2 CENTER DEFLECTOR
8 10135 2 BRACE/HANDLE
9 10134 2 MOUNTING PLATE
10 10136 4 RETAINER BUTTON
11 10186 26 T-NUT, .25
12 10183 20 BOLT, .25NC X .50 PHILLIPS TRUSS
13 10184 4 BOLT, .25NC X .75 PHILLIPS TRUSS
14 10185 4 BOLT. .25NC X 1” PHILLIPS TRUSS
15 05337 1 SAFETY LOCK PIN WITH CABLE
16 07908-95 4 HEAVY WASHER
Please order replacement parts by PART NO. and DESCRIPTION.
ITEM PART # QTY DESCRIPTION
17 02875-95 2 BUSHING .875 LONG
18 00698-95 2 BUSHING 1” LONG
19 11264 2 BOLT, .25NC X 1.50” PHILLIPS TRUSS
20 11265 2 BUSHING, 1” OD X .375 IS X 1”
21 00059 4 WASHER, .375 FLAT
22 02592 2 NUT, .375 NYLON LOCK
23 13666 4 CLEVIS SPACER F/ EXCALIBAR II
24 13667 4 CLEVIS SPACER F/ COMMANDER
25 13668 4 BUSHING F/ .375 COMMANDER BOLT
26 13669-95 2 CLEVIS BOLT F/ COMMANDER
- 10297 1 STORAGE BAG
- 12329 1 THREAD LOCK (NOT SHOWN)
27 02384 4 WASHER .50 X 14GA F/ DOMINATOR
28 05290 2 BOLT, .50 X 3.25 GR.5
29 01903 2 BOLT, .375 X 3.50 GR.5
30 15756-81 2 TABLESS CLEVIS
Please order replacement parts by PART NO. and DESCRIPTION.
