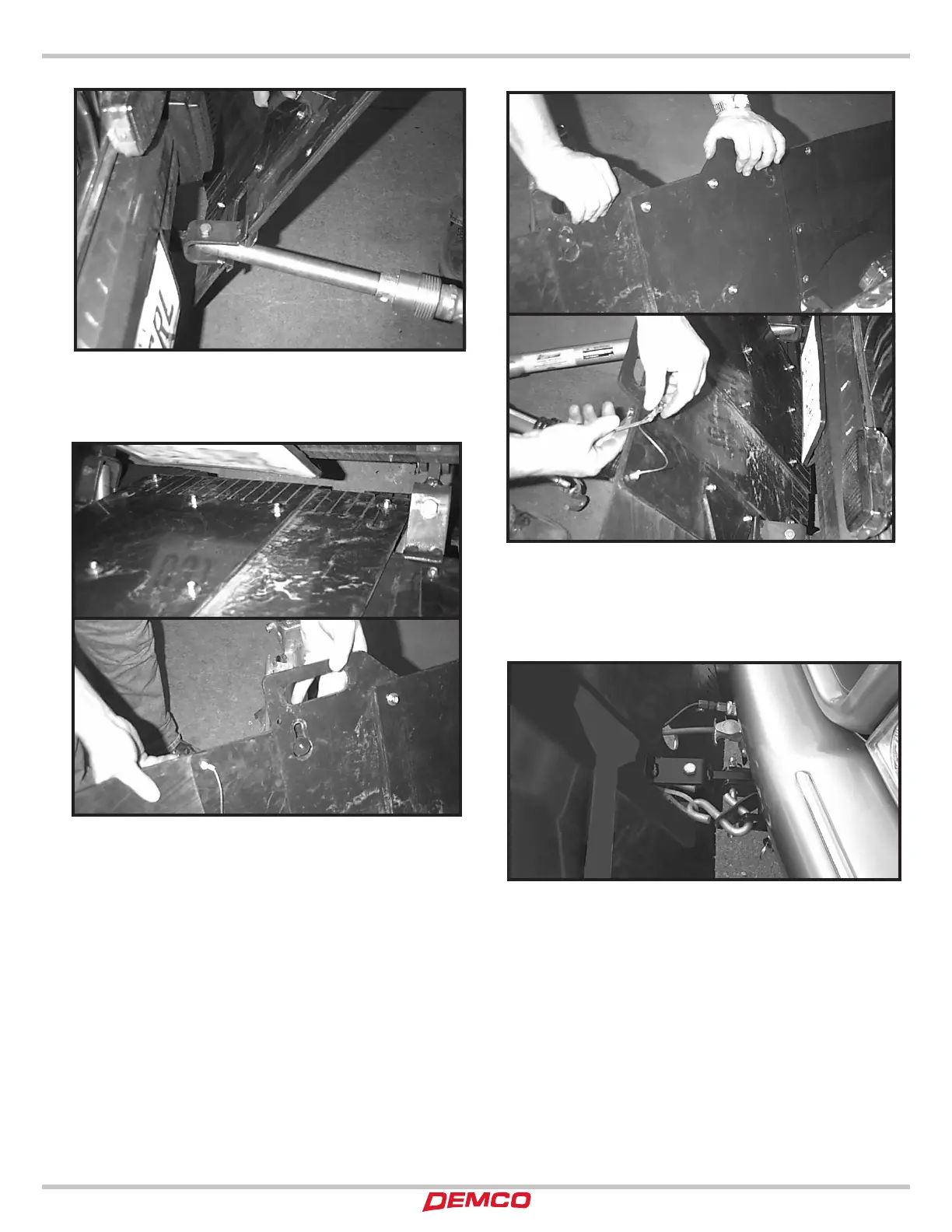

3. Push down on center section until it snaps into place.
Insert pin through hole provided and snap wire over
pin to secure Sentry together as a unit. Hole on other
side maybe used for a paddle lock for antitheft, if neces-
sary.
4. Due to different locations of wiring hook ups, and safety
cable hook points, it maybe necessary to drill hole or holes
through Sentry for pass through. Here is an example of
a 2” hole saw used to allow the 6-wire electrical cable to
pass through. Safety cables can pass through clevis area
most of the time for hookup to vehicle.
1. Slide right and left wings into Sentry connecting clevis
until wings are approximately 1/4” away from bottoming
out against clevis.
2. Install center section’s lower key holes over the bottom
clamps of wings first, both the same time. Slowly push
down until top key slots start to line up. Assist line up
by moving each wing up or down. When all clamps are
through key holes.
Remember, before towing vehicle, make sure tow bar is
latched by backing towed vehicle. Damage may result
to tow bar and Sentry clevis if tow bar is NOT latched
before towing.
