(10) Digital Audio Signal Input Sampling Rate
The following table illustrate the Input Sampling Rate LED status:
Base Sampling Rate Multiplier Input Format
44.1 kHz
1X 44.1 kHz
2X 88.2 kHz
4X 176.5 kHz
8X 352.8 kHz
48 kHz
1X 48 kHz
2X 96 kHz
4X 192 kHz
8X 384 kHz
DSD
1X DSD 64
2X DSD 128
4X DSD 256
8X N/A
Table 1. Sampling Rate
1112
12

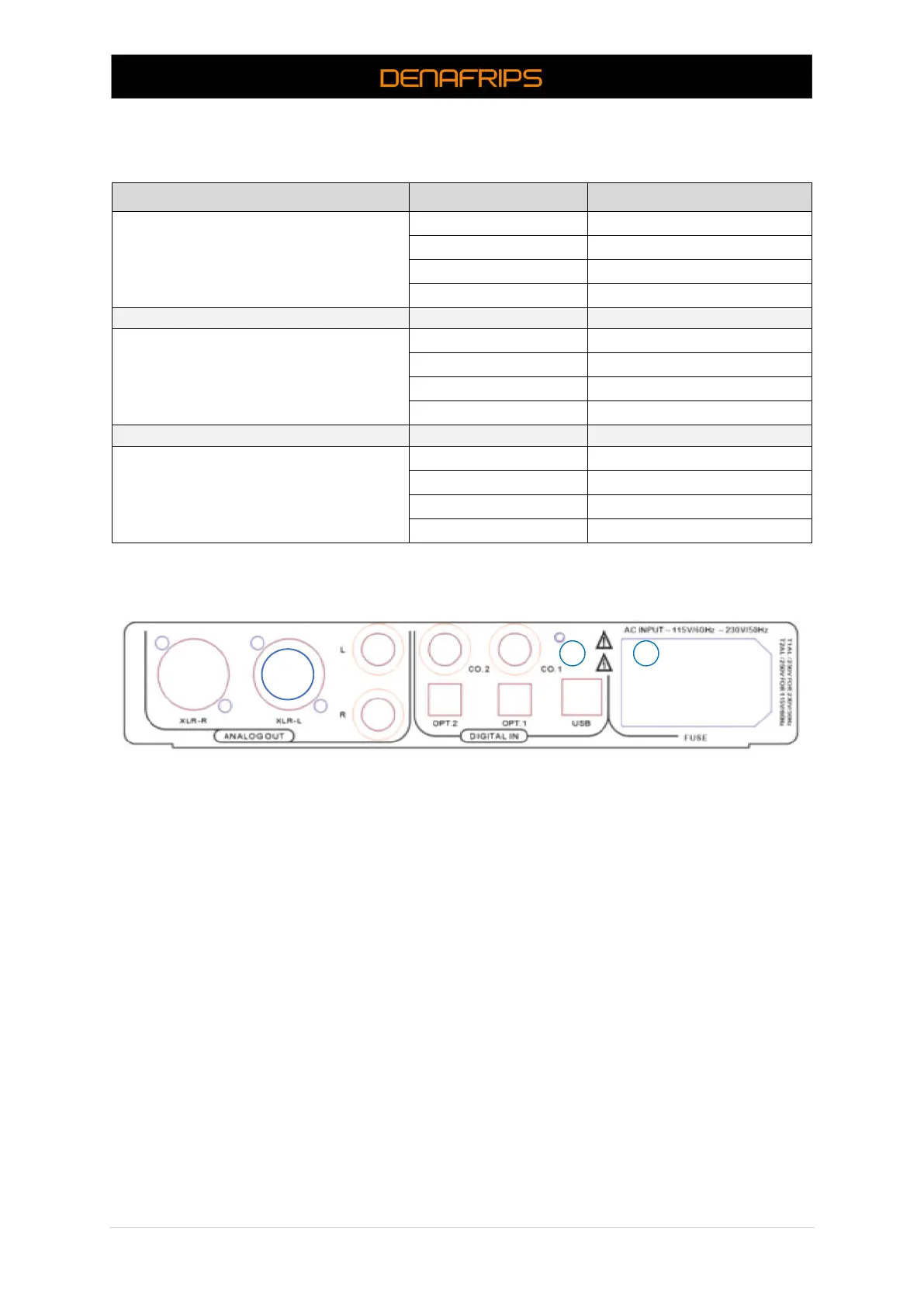

Figure 2. Ares Rear Panel
Description:
(11) AC Power Supply
CAUTION! Select the correct AC Power Supply voltage prior supplying the power to the
Ares. The voltage selector switch is located underneath the Ares chassis.
(12) Digital Audio Signal Input
There are 5 inputs, namely, USB, COAX 1, COAX 2, OPT1 and OPT2.
(13) Analog Audio Signal Output
Balanced output via XLR (pin2 hot), singled ended output via RCA. The Ares is a true
balanced DAC, we recommend using balanced output whenever possible.
NOTE:
The Ares chassis is connected to the power supply earth.
13
