Shipping and Storage CAIRplus
20 PR-2009-0096-GB • Subject to modifications • R8-10/2015
• For safety reasons, wear protective clothing when lifting or transporting the unit.
• Before lifting or shipping the unit, make sure that all doors, dampers and panels are
fixed and secured.
• Only use lifting gear with sufficient load-bearing capacity.
• Never use damaged lifting equipment.
• Ropes/chains must not be knotted and/or be exposed to sharp edges.
• Only use ropes/chains of the same length.
• Use only the lifting lugs provided by DencoHappel!
• Move the unit carefully without jerky movements.
• Do not set the unit down abruptly or bump it.
4.2.1 Lifting the unit – lifting lugs on roof (provided with shipment units weighing up to 1500 kg)
• Lifting lugs may only be used for lifting.
• Do not use lifting lugs for lateral loads (pulling of unit on
sides).
• The suspension angle must be between 70° and 110° (see
fig. 4-1).
• Lifting lugs may only be used once.
• Do not use lifting lugs for permanent suspension of units.
• Do not lift any other loads together with the shipment unit.
• With units for outdoor installation, ensure that the roof sheets
are not damaged by the lifting gear.
• The maximum lifted weight of the shipment unit
may not exceed 1500 kg.
• Use all four eyeplates to lift the shipment unit.

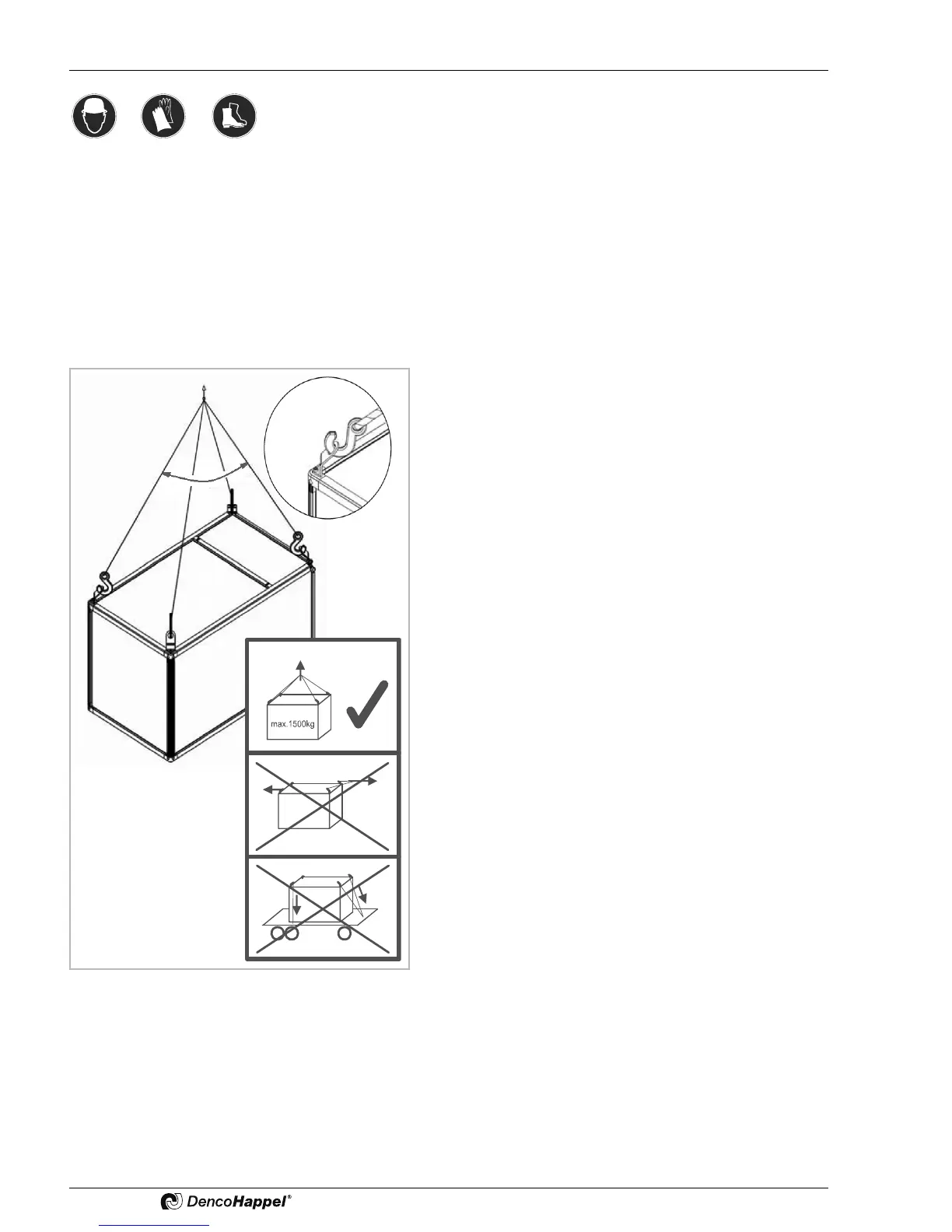

Fig. 4-1: Lifting lugs for shipment units weighing up to 1500 kg
