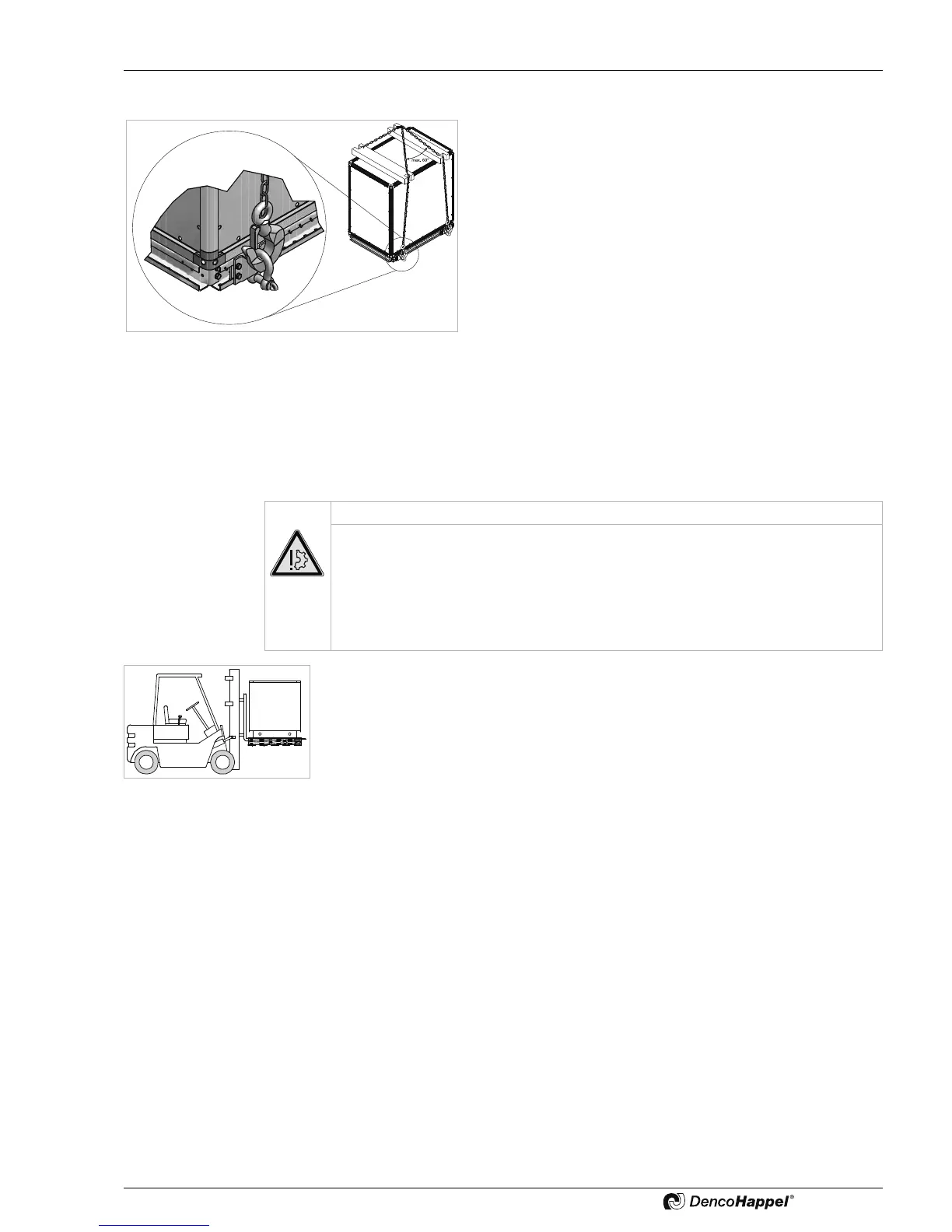

4.2.2 Lifting the unit - transport gear on the base frame (provided with shipment units weighing up to 4000 kg)
• Use only the transport gear attached to the base frame for
lifting the units.
• Use the lifting gear (not part of the DencoHappel package)
as shown in the figure.
• Use provided timber spacers to protect the unit at the edges.
• Suspension angle must not exceed 60°.
• To effectively prevent the load from slipping or tilting, consid-
er its center of gravity when lifting the unit.
• Use the transport gear only once.
• Do not use transport gear for permanent suspension of units.
• Do not lift any other loads together with the shipment unit.
• With units for outdoor installation, ensure that the roof sheets
are not damaged by the lifting gear.
• Units with a slanting roof are delivered with a device that en-
ables to fasten it in place during truck transport.
This device must be removed before lifting the unit by
crane!
4.2.3 Shipping with a fork-lift truck
• Always use the unit base frame or the supplied pallet as the supporting surface
during transportation.
• Do not lift units without the base frame if the unit profiles are not sufficiently
protected.
• When transporting the unit with a forklift both base-frame profiles must be resting on
the forks.
• Verify proper center of gravity lift point and uniform distribution of weight.
ATTENTION
Unit damage due to stacking the units!
• Never stack units on top of one another for shipping!
• Always place and rig the units one at a time!
Stacking of units and other foreign field-provided components is not permitted.
Exceptions apply for units delivered by the DencoHappel sites where the sufficient
load-bearing capacity is considered beforehand.
