Assembly CAIRplus
24 PR-2009-0096-GB • Subject to modifications • R8-10/2015
– In units where a condensate drain is installed, ensure there is adequate height for
condensate drain requirements - the height of the site base must at least correspond
to the trap height (refer to "Condensate tray trapping").
• In case of leaking liquids take measures to prevent damage to the installation site or
the environment.

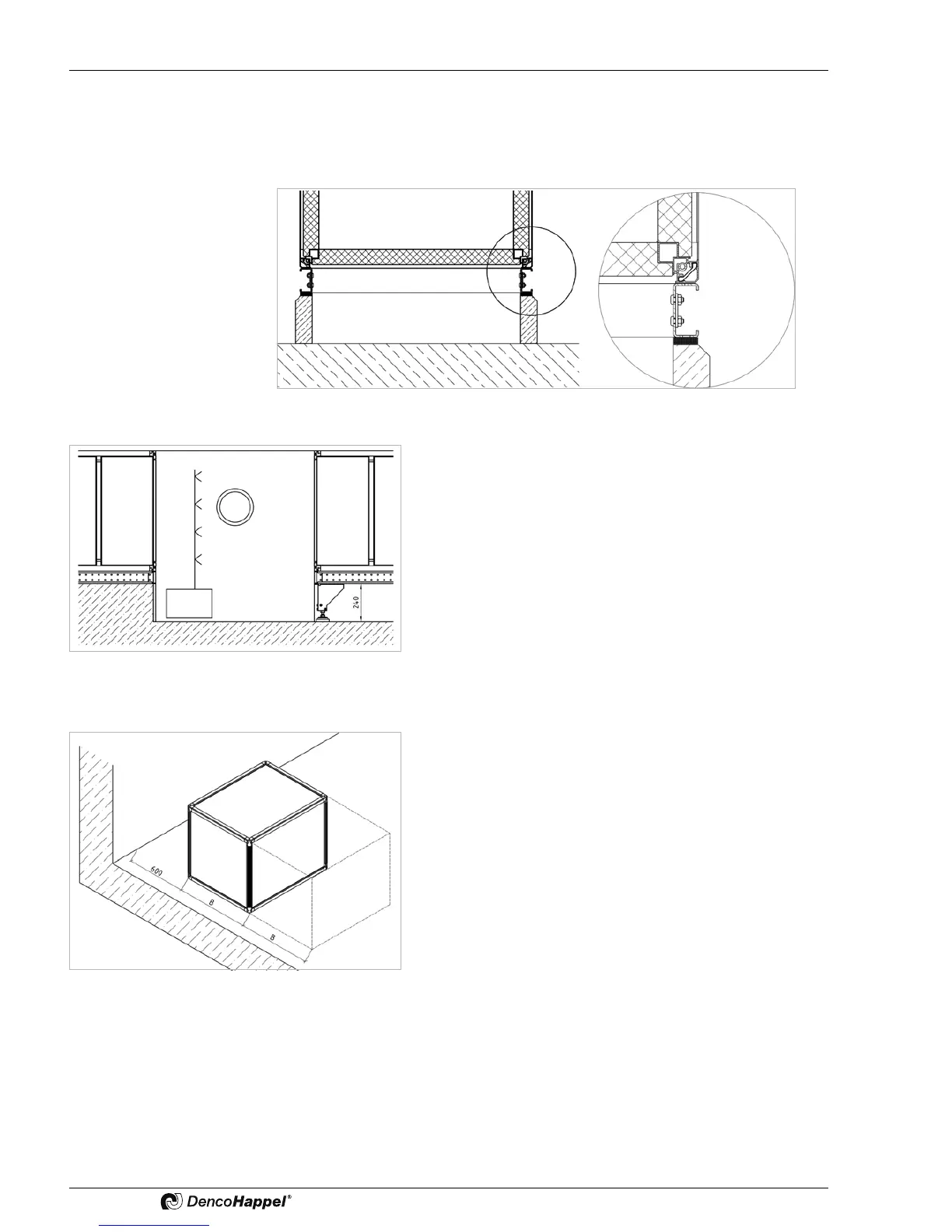

Fig. 5-1: Installation site
• When installing a spray humidifier, use a plinth or unit feet
corresponding to the tray height to ensure horizontal align-
ment with other unit sections.
Fig. 5-2: Height compensation with spray humidifier
5.1.2 Minimum clearances
• To remove fans, heat exchangers, droplet separators, etc.
and enable adequate maintenance allow a minimum clear-
ance of one unit width on the operating side.
• Allow a minimum clearance of 600 mm between the unit rear
side and the wall if the unit configuration does not provide for
an internal joint connection.
Fig. 5-3: Minimum clearance
