5.1.3 Foundation requirements for indoor installation
• The foundation/bottom base may protrude a maximum of 20
mm beyond the outer edge of the unit to enable mounting of
cover plates or accessories, such as condensate traps.
• The supporting points of the foundation must be located at
every shipping split. Besides, ensure that the maximum dis-
tance between these points does not exceed 1600 mm in the
unit length(see fig. 5-4).
• Units with side-by-side arrangement must be supported in
the center (see fig. 5-5).

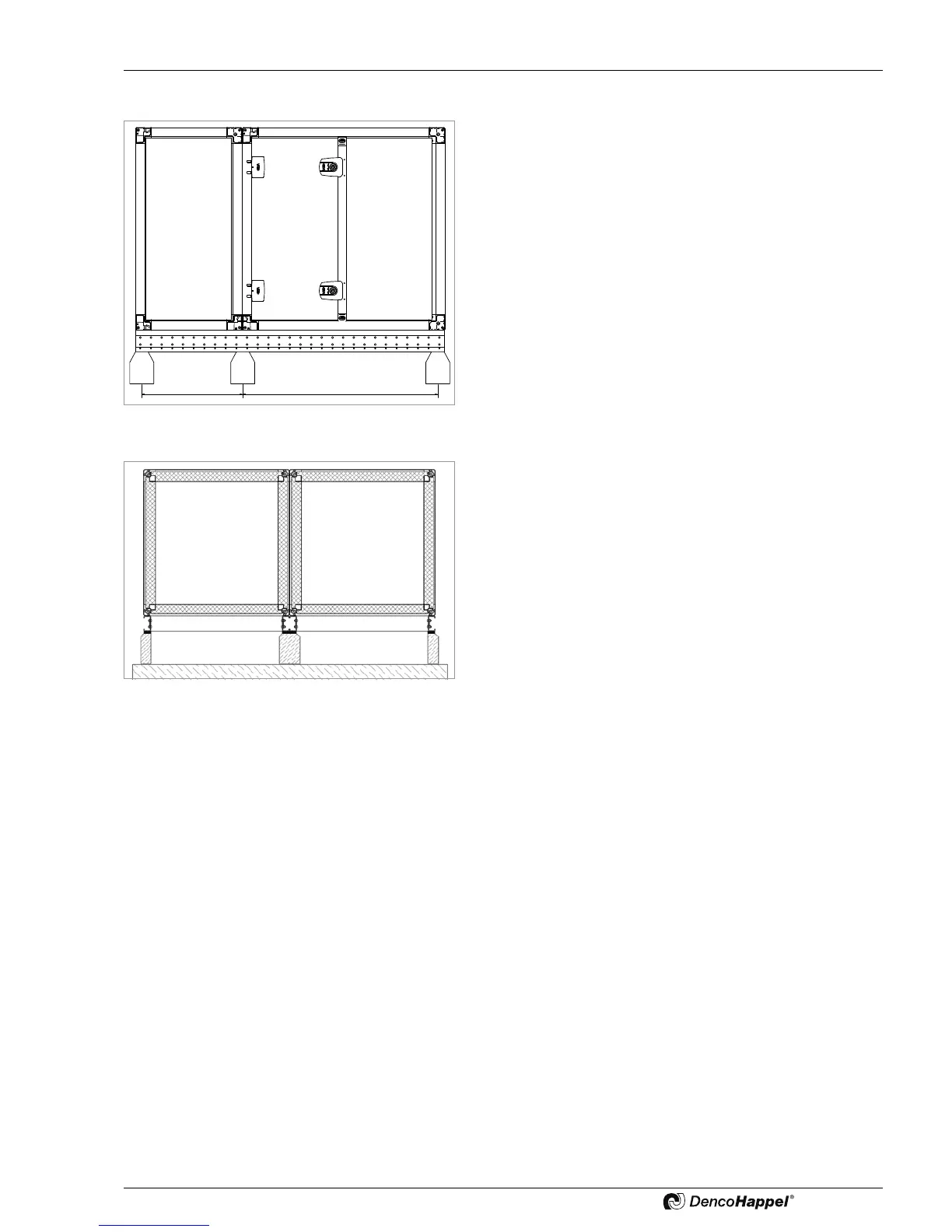

Fig. 5-4: Foundation requirements with side-by-side units
operator side
Fig. 5-5: Foundation requirements with side-by-side
cross-section
