Assembly CAIRplus
28 PR-2009-0096-GB • Subject to modifications • R8-10/2015
Required tools: – Electric screwdriver, drill
– Bit holders/sockets
– Sockets of sizes 8, 10
– Slotted head screw bits, sizes 2, 3
– Open-ended spanners sizes 8, 13, 17
– Screw drivers 4.5 - 6.5
– Hexagon socket size 6
– Tensioning belts or suitable hoisting device
5.2.1 Removing lifting lugs and safety devices
• Remove all lifting lugs, safety locks and devices mounted on and in the unit prior to
assembly.
• Remove safety locks on the fan.
Verify that that all lifting lugs on the roof are removed:
• Remove the lug, screw and bushing at the section joint, then
secure the supplied M8 x 30 screw.

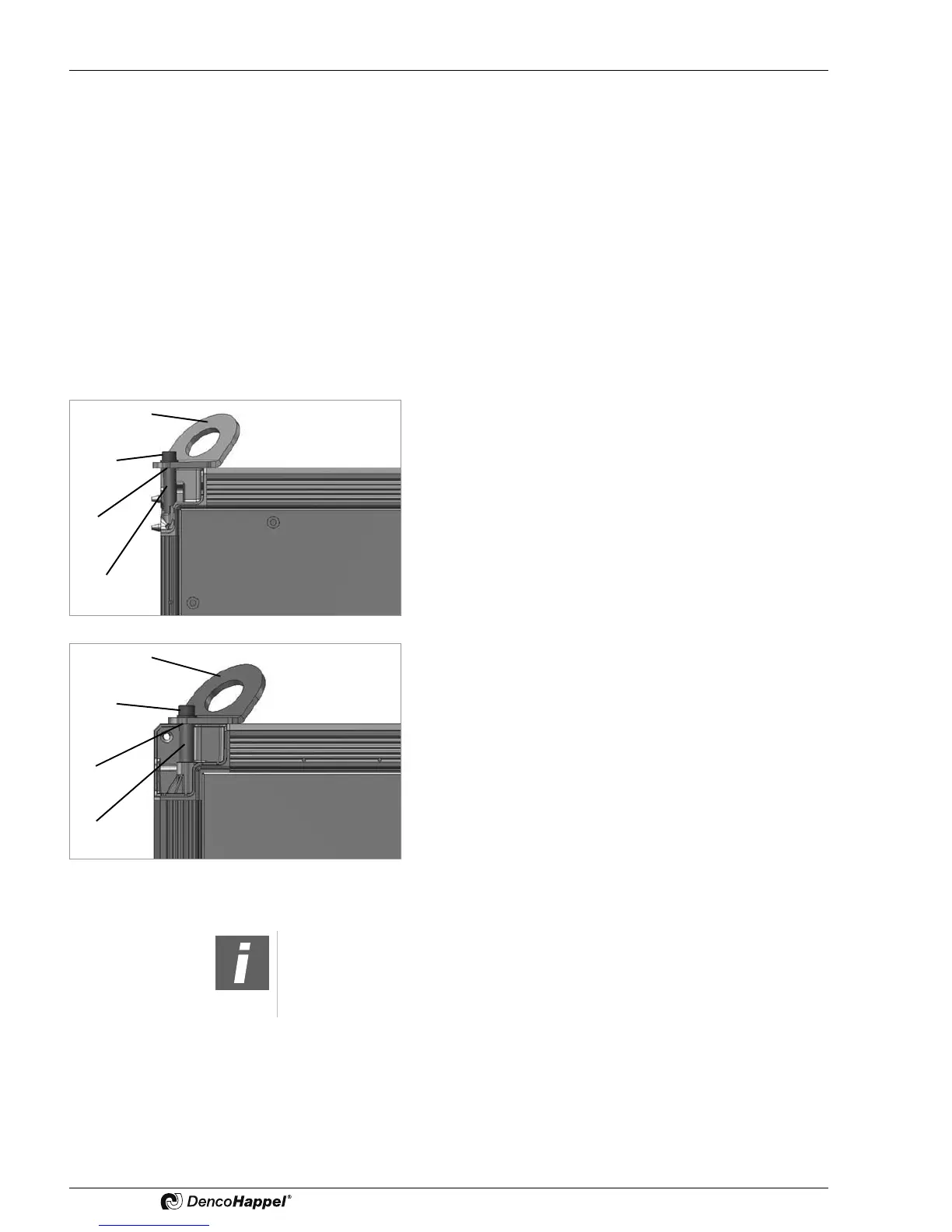

Fig. 5-9: Lifting lug at joints
• Remove the screws on the end walls and secure the sup-
plied M8 x 70 screw.
Fig. 5-10: Lifting lugs for roof and end wall
Notice!
Due to a risk of damage through lifting lugs - externally mounted dampers, flexible
canvas connection partially ship separately.
• Mount these components on-site and seal them.
